Balancing Machines
Hard bearing dynamic balancing machines for disc-type and shaft-type rotors. Vertical single-plane (up to 300 kg), horizontal two-plane end-drive (up to 10,000 kg), and horizontal belt-drive (up to 3,000 kg). DSP-based measurement with 0.5 micron achievable accuracy.
DSP-Based Precision
Product Range
In Stock
Balancing Highlights
| Commercial Terms | Direct Distributor Pricing |
| Rotor Weight Range | 0.3 kg to 10,000 kg |
| Max Rotor Diameter | Up to 2,400 mm |
| Achievable Accuracy | 0.5 microns (gmm/kg) |
| Measurement | DSP-Based, 150 MHz |
| Configurations | 3 Types · 25 Models |
Since 1983
Four decades supplying Indian industry
5 Export Countries
Sri Lanka, Bahrain, Oman, UAE, Saudi Arabia
Trusted by L&T, Anchor by Panasonic & more
Enterprise clients across sectors
Precision Balancing for Every Rotor Type
Industrial Dynamic Balancing Machines for Workshops and Production
Raney Machine Tools supplies hard bearing dynamic balancing machines in three configurations: vertical single-plane for disc-type components (flywheels, clutch plates, impellers), horizontal end-drive for shaft-type rotors (motor armatures, crankshafts, pump rotors), and horizontal belt-drive for rotors where end drive is impractical. Rotor capacities range from 0.3 kg to 10,000 kg across 25 models.
Every balancing machine features a DSP-based processor system with 150 MHz high-speed measurement. The system measures unbalance in grams with angular position, auto-calibrates with a single keystroke, and provides tolerance indication for both correction planes. Machines conform to IS:13277, ISO:2953, and ISO:21940 standards. Minimum achievable unbalance is 0.5 microns (gmm/kg) across all models.
0.5 Micron Achievable Accuracy
All models achieve 0.5 microns (gmm/kg) minimum unbalance for maximum rotor weight. 95% unbalance reduction ratio on horizontal machines. Auto-ranging from 0.1 grams up to kilograms with ±1 RPM resolution.
DSP-Based 150 MHz Measurement
High-speed DSP processor with auto calibration, RS232 serial interface, adjustable auto cycle, and auto tolerance indication. Compact design with less than 50 watts power consumption. No external hardware required.
Trusted Industrial Partner
Trusted by India's premier engineering corporations and exported to 5 overseas destinations.
Export Destinations
Sri Lanka • Bahrain • Oman • UAE • Saudi Arabia
3 Configurations · 25 Models
Our 3 Balancing Machine Types
Choose vertical for disc-type rotors, horizontal end-drive for shaft-type rotors, or horizontal belt-drive when end drive is impractical.
Up to 300 kg

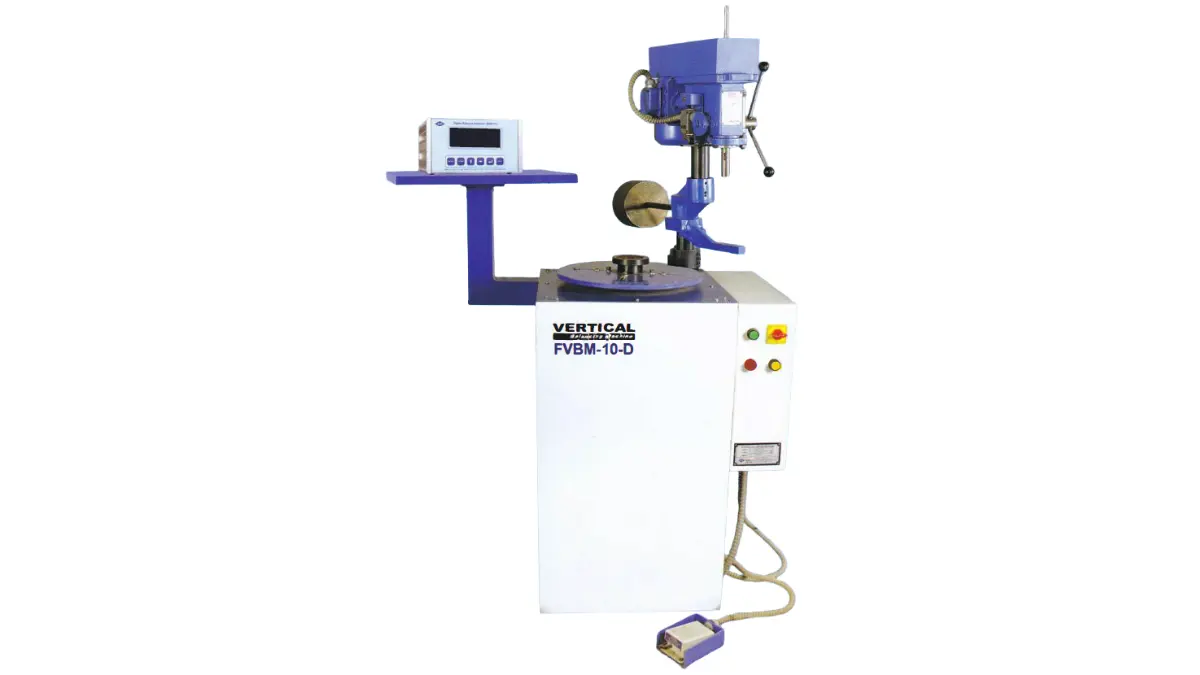

Model: FVBM Series (7 sizes)
Single-Plane for Disc-Type Components
Hard bearing single-plane vertical dynamic balancing machines in 7 sizes from 3 kg to 300 kg rotor capacity. Most suited for disc-type components: flywheels, clutch plates, impellers. DSP-based measurement with auto calibration. Drilling or milling attachment can be integrated for correction on the machine itself.
- Rotor Weight: 0.3 kg to 300 kg
- Max Rotor Diameter: 300 mm to 1,000 mm
- Balancing Speed: 350 to 1,000 RPM
- Motor: 0.33 HP to 5 HP
Up to 10,000 kg

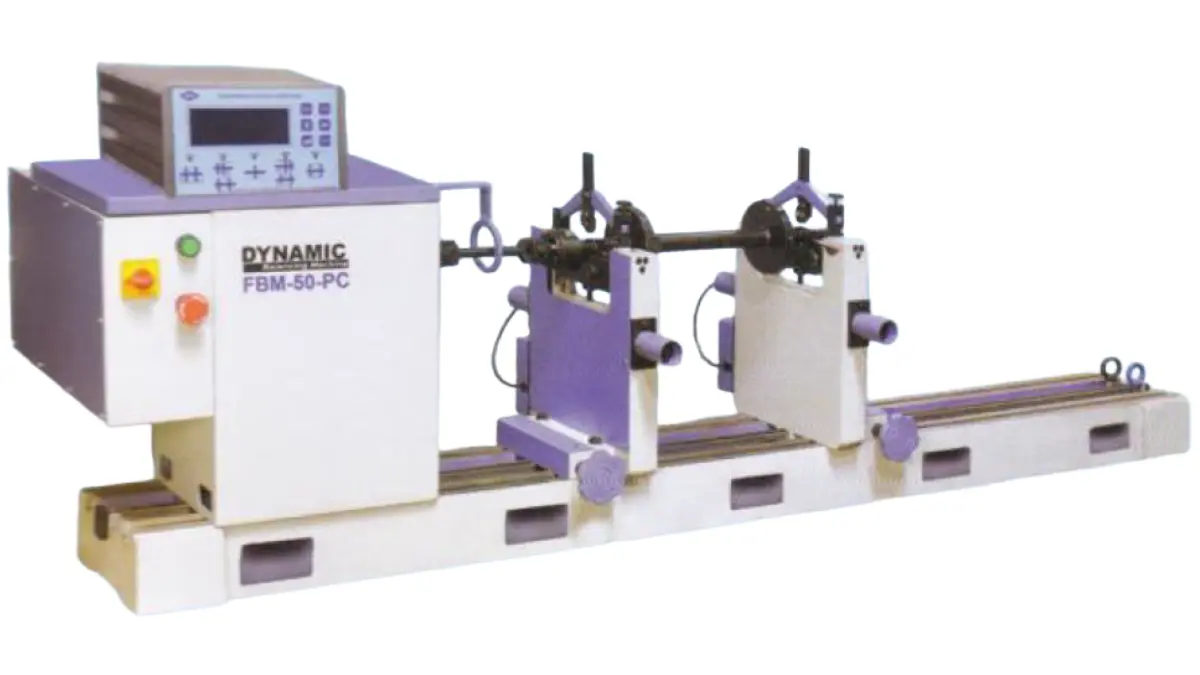

Model: FBM-D Series (10 sizes)
Two-Plane DSP-Based for Shaft Rotors
Hard bearing two-plane horizontal dynamic balancing machines with end-drive in 10 sizes from 10 kg to 10,000 kg rotor capacity. Suitable for motor armatures, crankshafts, submersible pump rotors, cylinders. Fully automatic cycle: starts, measures, stores unbalance in both planes, stops with electrical braking.
- Rotor Weight: 0.5 kg to 10,000 kg
- Max Rotor Diameter: 500 mm to 2,400 mm
- Balancing Speed: 200 to 1,000 RPM
- Motor: 0.33 HP to 40 HP
Up to 3,000 kg

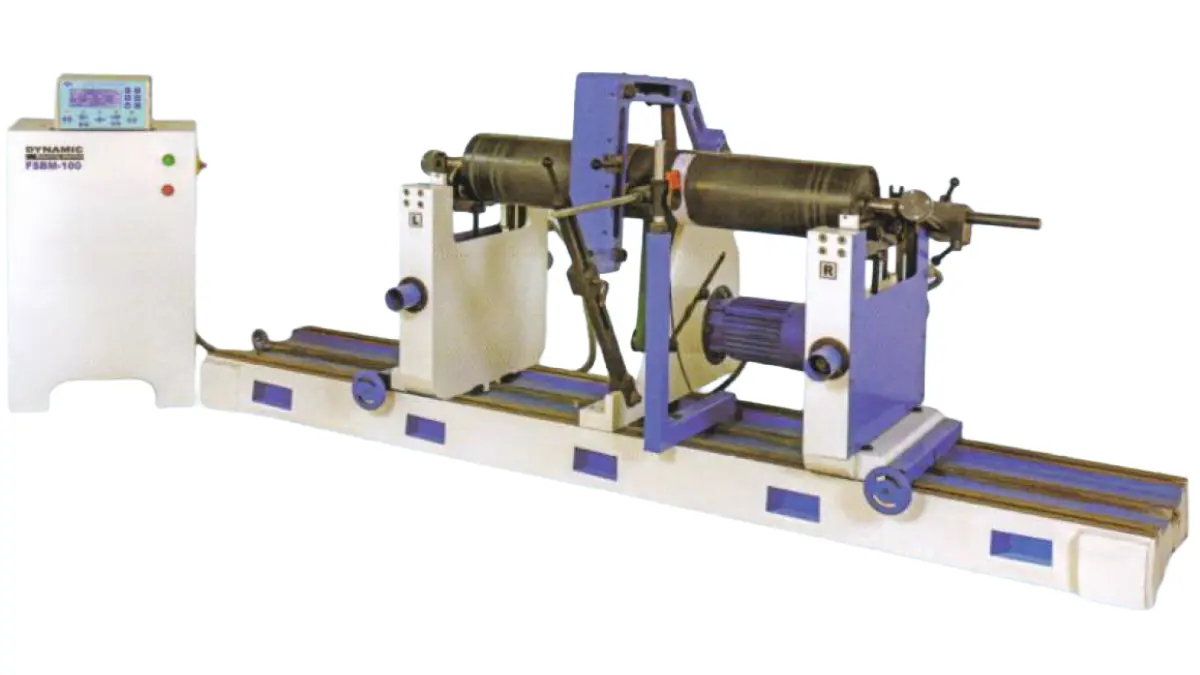

Model: FSBM-D Series (8 sizes)
Over-Slung Belt Drive for Versatile Rotors
Hard bearing two-plane horizontal dynamic balancing machines with over-slung belt-drive arrangement in 8 sizes from 10 kg to 3,000 kg. Most suitable for rotors where end drive cannot be used or where variety of rotors requires many adapters. Typical applications: pipes, printing machine rolls.
- Rotor Weight: 0.3 kg to 3,000 kg
- Max Rotor Diameter: 250 mm to 2,000 mm
- Balancing Speed: 200 to 3,000 RPM
- Motor: 0.33 HP to 20 HP
Engineering Data Sheets
Detailed Technical Specifications (All 25 Models)
Vertical Dynamic Balancing Machine (FVBM Series)
Single-Plane · 3 kg to 300 kg| SPECIFICATION | Unit | FVBM-3 | FVBM-5 | FVBM-10 | FVBM-30 | FVBM-50 | FVBM-100 | FVBM-300 |
|---|---|---|---|---|---|---|---|---|
| Weight of Rotor (Min-Max) | kg | 0.3-3 | 0.5-5 | 0.5-10 | 1-30 | 1.5-50 | 3-100 | 10-300 |
| Max Diameter of Rotor | mm | 300 | 400 | 400 | 500 | 500 | 600 | 1,000 |
| Balancing Speed | RPM | 1,000 | 1,000 | 1,000 | 750 | 600 | 500 | 350 |
| Drive Motor Power | HP | 0.33 | 0.33 | 0.75 | 1.5 | 1.5 | 3 | 5 |
| Min Unbalance Measured | gm | 0.1 (all models) | ||||||
| Max Unbalance Measured | kg | 0.2 | 0.2 | 0.2 | 1 | 1 | 2 | 2 |
| Min Achievable Unbalance | µ (gmm/kg) | 0.5 (all models) | ||||||
Applications
Flywheels, clutch plates, impellers, fan blades, and other disc-type components. Range from repair workshop balancing to fully automatic mass production.
Correction Features
- Drilling head or milling attachment integrable
- Balancing & correction in single operation
- Ergonomic single-position operation
DSP Panel Features
150 MHz high-speed processor · Auto calibration with single keystroke · RS232 serial interface · Auto ranging from 0.1 grams to kilograms · Auto tolerance indicator in grams and gmm · RPM indicator (±1 RPM) · Less than 50 watts power consumption
Standards: IS:13277 / ISO:2953 / ISO:21940
Horizontal Dynamic Balancing Machine, End-Drive (FBM-D Series)
Two-Plane End-Drive · 10 kg to 10,000 kgSmall & Medium Rotor Models (5 of 10)
| SPECIFICATION | Unit | FBM-10-D | FBM-30-D | FBM-50-D | FBM-100-D | FBM-300-D |
|---|---|---|---|---|---|---|
| Rotor Weight | kg | 0.5-10 | 1-30 | 2-50 | 3-100 | 10-300 |
| Max Rotor Diameter | mm | 500 | 500 | 500 | 1,000 | 1,000 |
| Max Distance Between Bearings | mm | 480 | 480 | 1,100 | 1,350 | 1,350 |
| Min Distance Between Bearings | mm | 50 | 50 | 50 | 100 | 100 |
| Journal Diameter Range | mm | 5-50 | 5-50 | 5-50 | 20-100 | 20-100 |
| Balancing Speed | RPM | 1,000 | 700 | 700 | 600 | 500 |
| Drive Motor Power | HP | 0.33 | 0.75 | 0.75 | 2 | 3 |
| Min Unbalance Measured | gm | 0.01 | 0.1 | 0.1 | 0.1 | 0.1 |
| Max Unbalance Measured | kg | 0.4 | 0.4 | 0.4 | 4 | 4 |
| Unbalance Reduction Ratio | % | 95 (all models) | ||||
| Min Achievable Unbalance | µ (gmm/kg) | 0.5 (all models) | ||||
Large Rotor Models (5 of 10)
| SPECIFICATION | Unit | FBM-650-D | FBM-1000-D | FBM-3000-D | FBM-7000-D | FBM-10000-D |
|---|---|---|---|---|---|---|
| Rotor Weight | kg | 15-650 | 20-1,000 | 30-3,000 | 70-7,000 | 100-10,000 |
| Max Rotor Diameter | mm | 1,200 | 1,600 | 2,000 | 2,400 | 2,400 |
| Max Distance Between Bearings | mm | 1,650 | 2,400 | 3,300 | 3,300 | — |
| Min Distance Between Bearings | mm | 100 | 350 | 500 | 500 | — |
| Journal Diameter Range | mm | 20-100 | 25-140 | 35-200 | 55-300 | 55-300 |
| Balancing Speed | RPM | 350 | 350, 700 | 300, 600 | 200, 400 | 200, 400 |
| Drive Motor Power | HP | 5 | 7.5 | 20 | 30 | 40 |
| Min Unbalance Measured | gm | 0.1 | 0.1 | 0.1 | 1 | 1 |
| Max Unbalance Measured | kg | 4 | 4 | 4 | 10 | 10 |
| Unbalance Reduction Ratio | % | 95 (all models) | ||||
| Min Achievable Unbalance | µ (gmm/kg) | 0.5 (all models) | ||||
Notes:
- FBM-10-D / 30-D / 50-D: swing diameter limited to 150 mm at minimum bearing distance
- FBM-100-D / 300-D: swing diameter limited to 250 mm at minimum bearing distance
- Additional bed lengths available for extra-long rotors
- Gap bed arrangement available for bigger diameter rotors
- Machines above 7,000 kg capacity provided with fixed separate drives and gap bed design
Standards: IS:13277 / ISO:2953 / ISO:21940
Horizontal Dynamic Balancing Machine, Belt-Drive (FSBM-D Series)
Belt-Drive · 10 kg to 3,000 kg| SPECIFICATION | Unit | FSBM-10-D | FSBM-30-D | FSBM-50-D | FSBM-100-D | FSBM-300-D | FSBM-650-D | FSBM-1000-D | FSBM-3000-D |
|---|---|---|---|---|---|---|---|---|---|
| Rotor Weight | kg | 0.3-10 | 0.3-30 | 0.5-50 | 0.5-100 | 0.5-300 | 15-650 | 20-1,000 | 300-3,000 |
| Max Rotor Diameter | mm | 250 | 500 | 500 | 800 | 800 | 1,200 | 1,600 | 2,000 |
| Max Distance Between Bearings | mm | 700 | 700 | 1,200 | 1,500 | 1,500 | 1,650 | 1,650 | 2,400 |
| Max Dia. Under Belt | mm | 150 | 150 | 150 | 250 | 250 | 250 | 350 | 400 |
| Journal Diameter Range | mm | 5-50 | 5-50 | 5-50 | 20-100 | 20-100 | 20-100 | 25-140 | 35-200 |
| Balancing Speed | RPM | 800-3,000 | 500-3,000 | 500-3,000 | 500-3,000 | 500-2,000 | 500-2,000 | 200-1,000 | 200-1,000 |
| Drive Motor Power | HP | 0.33 | 0.75 | 0.75 | 2 | 3 | 5 | 7.5 | 20 |
| Min Achievable Unbalance | µ (gmm/kg) | 0.5 (all models) | |||||||
Applications
Most suitable for rotors where end drive cannot be used, or where variety of rotors requires too many adapters for end-drive machines. Typical applications: pipes, printing machine rolls, bomb shells (ordnance).
Standards: IS:13277 / ISO:2953 / ISO:21940
Industrial Sectors
Industries & Applications We Serve
Raney Machine Tools' workshop machinery supplies critical manufacturing, heavy maintenance, and fabrication facilities across Gujarat and worldwide.
Automotive & Components
Transmission housings, brake and steering assemblies, precision fasteners, and high-volume component production.
Defence & Ordnance
High-tensile alloy machining, ordnance component fabrication, and precision assemblies for defence contractors.
Pumps, Valves, Oil & Gas
Pump housings, valve bodies, flanges, threaded connectors, and heavy pipe fabrication for oilfield equipment.
Sugar & Cement Plants
Crusher and kiln roller maintenance, heavy trunnion assemblies, and general plant-floor machining.
Steel & Power Generation
Rolling-mill maintenance, turbine and generator shaft servicing, and heavy structural fabrication.
Toolrooms & Institutes
Die & mould shops, jig/fixture fabrication, ITI/Polytechnic training institutes, and R&D toolrooms.
The Raney Advantage
Why Source Balancing Machines from Raney Machine Tools?
When you purchase balancing machines from Raney Machine Tools, you gain direct access to four decades of machine-tool engineering expertise, factory-backed guarantees, and end-to-end operational support.
Ahmedabad Central Machinery Showroom
1/A, Ramnesh Estate, Opp. Shilp Arcade, Memco-Bapunagar Road, Ahmedabad - 380025
Proven In Production
Trusted by Industry Leaders Across Gujarat & Overseas
Common Questions
Frequently Asked Questions
Common questions on vertical vs horizontal balancing, DSP measurement systems, and rotor weight capacities.
We supply three types: vertical dynamic balancing machines (7 models, 3 kg to 300 kg rotor capacity) for disc-type components, horizontal end-drive balancing machines (10 models, 10 kg to 10,000 kg) for shaft-type rotors, and horizontal belt-drive balancing machines (8 models, 10 kg to 3,000 kg) for rotors where end drive is impractical. 25 models in total.
Vertical balancing machines perform single-plane balancing on disc-type components: flywheels, clutch plates, impellers, and fan blades. The rotor sits flat and spins on a vertical axis. Horizontal balancing machines perform two-plane balancing on shaft-type rotors: motor armatures, crankshafts, pump rotors, and rolls. The rotor sits on bearing supports and spins on a horizontal axis.
All 25 models achieve a minimum unbalance of 0.5 microns (gmm/kg) at maximum rotor weight. The DSP-based 150 MHz measurement system auto-ranges from 0.1 grams up to kilograms with +/-1 RPM resolution. Horizontal machines achieve 95% unbalance reduction ratio per correction cycle.
Choose belt-drive when end drive is impractical: when the rotor has no shaft feature to couple to, when you balance a wide variety of rotor shapes that would each need a custom adapter, or when the rotor geometry makes end-drive coupling difficult. Typical belt-drive applications include pipes, printing machine rolls, and components where direct coupling is not feasible.
All our balancing machines conform to IS:13277, ISO:2953, and ISO:21940 standards for balancing machine performance and safety. These standards define permissible residual unbalance, measurement accuracy, and machine classification.
Yes. Vertical balancing machines can be fitted with a drilling head or milling attachment for correction on the same machine, eliminating the need to un-clamp, correct on a separate machine, and re-clamp for re-measurement. This single-position operation speeds up the balancing cycle significantly.
The DSP processor panel features 150 MHz high-speed measurement, auto calibration with a single keystroke, RS232 serial interface for data logging, auto-ranging from 0.1 grams to kilograms, auto tolerance indication in grams and gmm, RPM indicator with +/-1 RPM resolution, and adjustable auto cycle. Power consumption is under 50 watts. No external hardware is required.
