Drill Machines

Industrial pillar, radial, and multi-purpose drilling machines from 20mm to 40mm capacity, built for precision metalworking across workshops, fabrication units, and production floors.

Request Quote View Specs

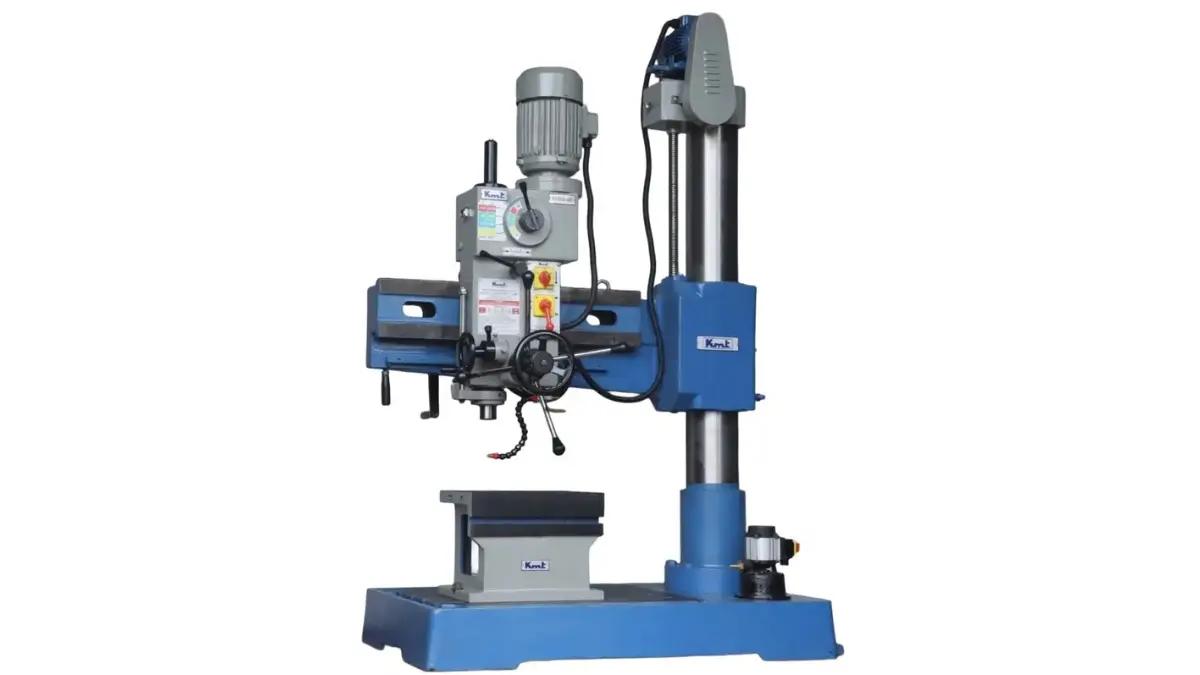

12-Speed Spindle DriveIndustrial Drill Machines — Pillar, Radial & Drilling Cum Tapping

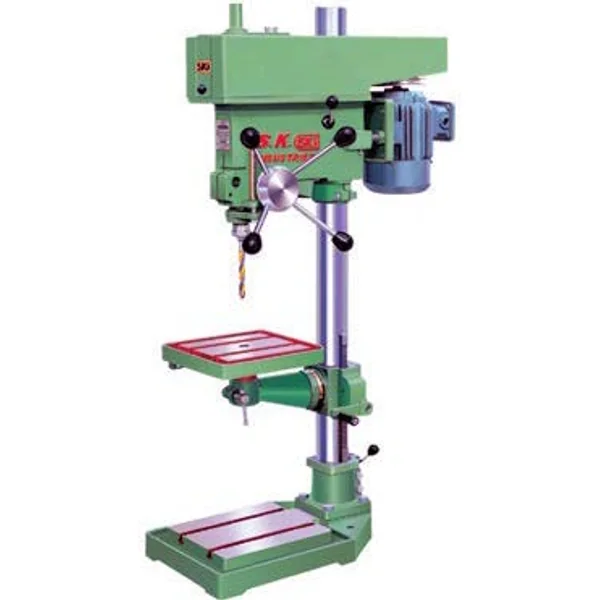

20mm CAP Bench & Pillar Drill

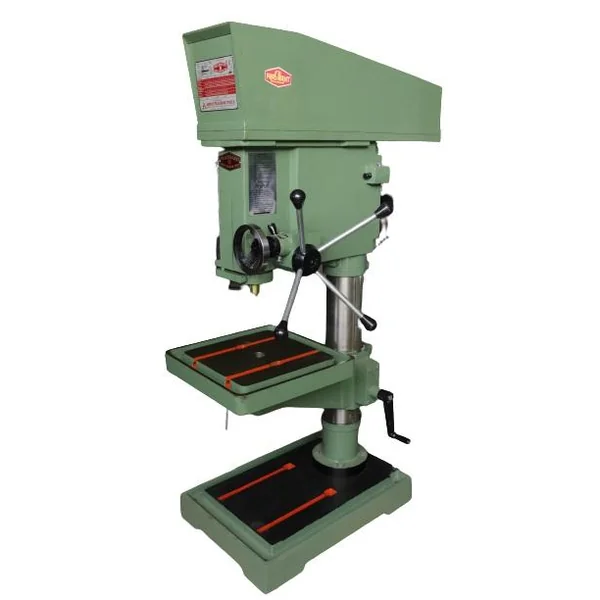

40mm CAP Heavy Duty Pillar Drill

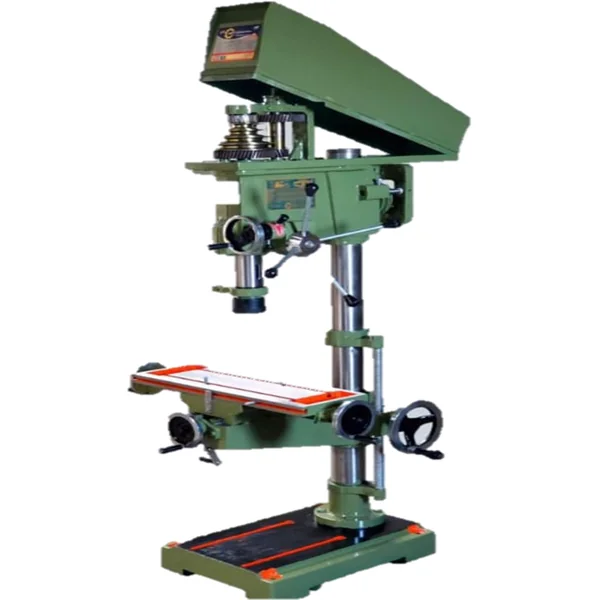

25mm CAP Heavy Duty Pillar Drill

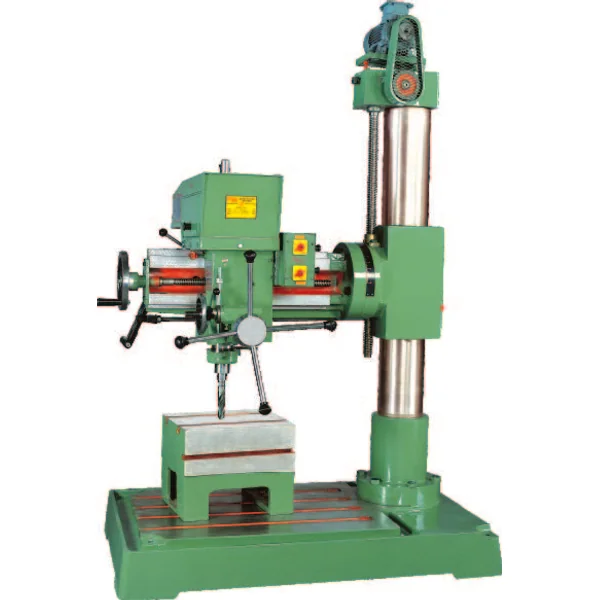

Universal Radial Drilling Machine
Product Range

Drill Highlights

In Stock
Commercial TermsDirect Distributor Pricing
Drilling Capacity20 mm to 40 mm
Spindle Speeds12-speed configurations
Speed Range45 to 3,360 RPM
Spindle TaperMT-2 to MT-5
Motor Range1 HP to 5 HP
Configurations7
Request Price Quotation WhatsApp: +91 70410 38728
Since 1983

Four decades supplying Indian industry

5 Export Countries

Sri Lanka, Bahrain, Oman, UAE, Saudi Arabia

Trusted by L&T, Anchor by Panasonic & more

Enterprise clients across sectors

Precision Drilling for Every Workshop

Industrial Drill Machines for Metalworking and Fabrication

Raney Machine Tools supplies a complete range of industrial drill machines, from compact 20mm bench-mount units for small workshops to heavy-duty 40mm pillar and radial configurations for large-scale fabrication. Every machine features 12-speed spindle drive, hardened and ground spindle nose (MT-2 through MT-5), and cast iron construction for rigidity and long service life.

Our range covers radial (all geared and V-belt driven), pillar type, and drilling-cum-tapping configurations. Radial drills extend reach with a swivelling arm. Pillar type machines suit general-purpose hole-making. The drilling-cum-tapping machine adds tapping to the 20mm drill, so holes can be drilled and threaded on the same machine.

12-Speed Spindle Drive

Pillar and V-belt radial machines use 12-step cone pulleys, from 45 RPM (heavy stock removal in 40mm steel) to 3,360 RPM (small diameter, high-speed work). The all geared 40/900-AF radial runs 50 to 1,750 RPM through its gearbox.

Pillar, Radial & Multi-Purpose

From fixed-column pillar drills for repetitive production, to radial drills with 90-degree arm swivel for large fabrication, and drilling-cum-tapping for drilling and threading on one machine.

Trusted Industrial Partner

Trusted by India's premier engineering corporations and exported to 5 overseas destinations.

  • Larsen & Toubro (L&T)
  • Anchor by Panasonic
  • ITT Industries & Mazda
  • Monte Carlo & Lubi Pumps
  • BOMAFA Valve Technologies
Export Destinations Sri Lanka • Bahrain • Oman • UAE • Saudi Arabia
7 Configurations

Our 7 Drill Machine Configurations

From compact bench drills to heavy-duty radial machines, choose the configuration that fits your workshop.

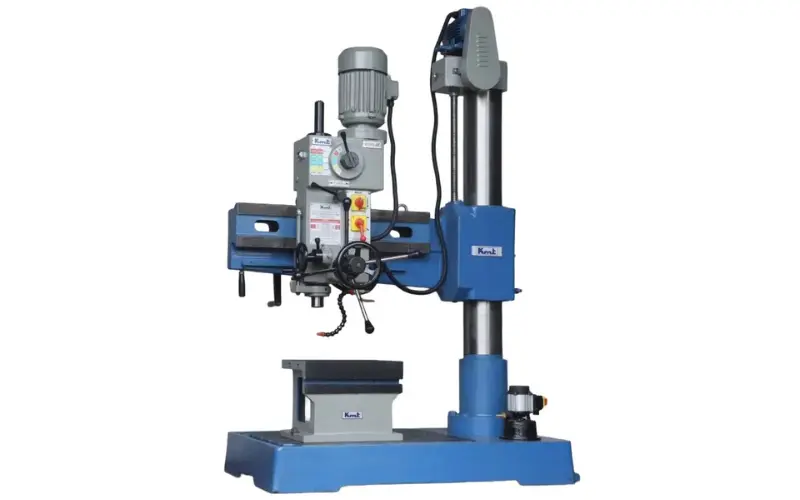

All GearedAll Geared Radial Drilling Machine (40/900-AF)
Model: 40/900-AF

All Geared Radial Drill Machine

All geared radial drill with 980mm drilling radius and 785mm arm travel. 38mm drilling in MS and 40mm in CI, 50mm boring, and tapping up to 22mm in CI. Separate 0.5 HP arm elevating motor.

  • Drilling: 38mm (MS) / 40mm (CI)
  • Spindle Taper: MT-4
  • Speeds: 50 to 1,750 RPM
  • Motors: 2.5 HP + 0.5 HP Elev.

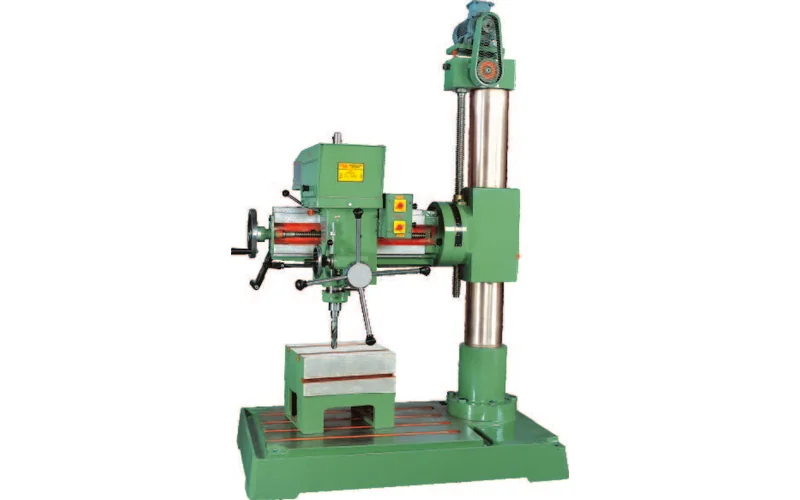

V-Belt RadialUniversal Radial Drilling Machine (SER-1 / SER-2)
Model: Universal Radial Drilling

V-Belt Driven Radial with Auto Feed

Radial drill with 90-degree arm swivel and 810mm max spindle-to-column reach. Two variants: SER-1 (hand fine speed), SER-2 (auto power feed). 38mm capacity in MS & CI.

  • Drilling: 38mm (MS & CI)
  • Spindle Taper: MT-4
  • Speeds: 8 (62 to 1,980 RPM)
  • Motors: 1.5 HP + 0.5 HP Elev.

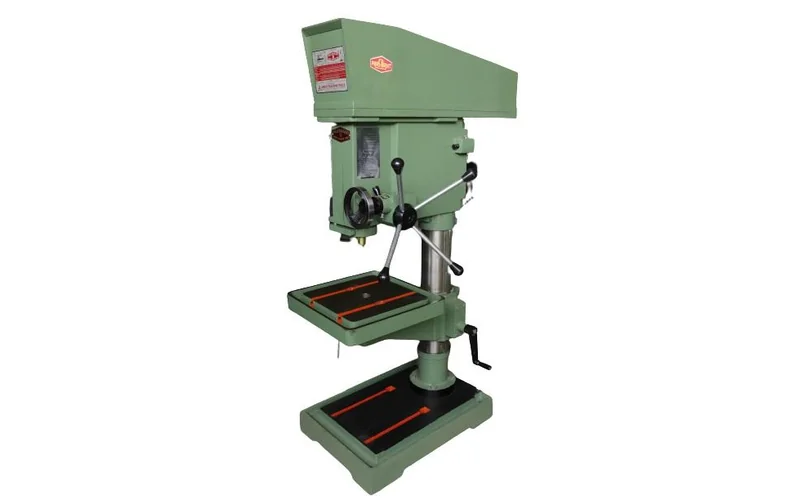

40 mm40mm CAP Heavy Duty Pillar Drill Machine
Model: 40mm CAP Heavy Duty Pillar

Heavy Duty Large Capacity Pillar

Heavy-duty pillar drill for large-diameter hole-making up to 40mm in steel. 250mm spindle travel, 460mm square table, and 120mm column diameter.

  • Drilling: 40mm in Steel
  • Spindle Taper: MT-4
  • Speeds: 8 (45 to 1,350 RPM)
  • Motor: 1.5 HP / 1,440 RPM

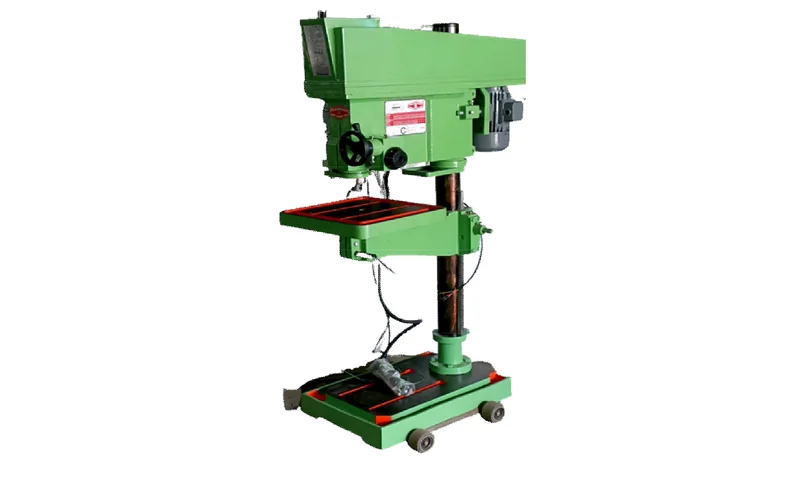

15" Centre25mm Cap Drilling Machine With 15" Centre
Model: 25mm Cap Drilling With 15" Centre

Extended Reach Pillar Type

Pillar drill with 381mm (15") spindle-to-column centre for drilling larger workpieces. 25mm capacity in MS, 32mm in CI, and 19mm tapping capacity.

  • Drilling: 25mm MS / 32mm CI
  • Spindle Taper: MT-4
  • Speeds: 8 (96 to 3,200 RPM)
  • Motor: 1.5 / 2 HP, 3-Phase

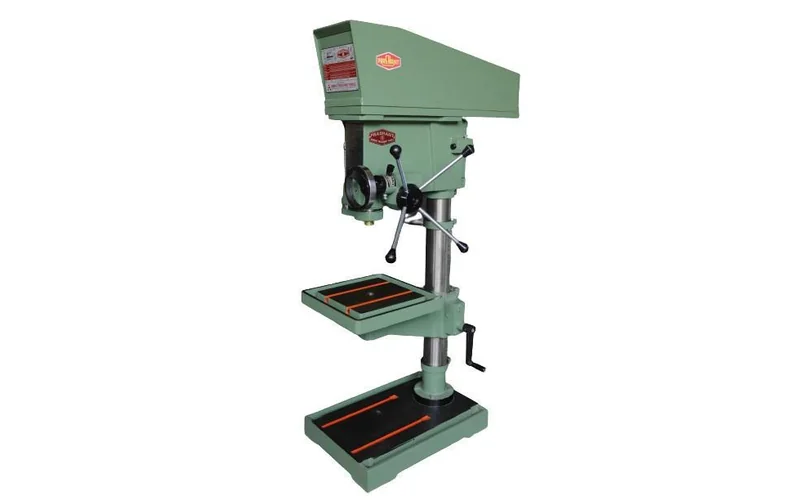

25 mm25mm CAP Heavy Duty Pillar Drill Machine
Model: 25mm CAP Heavy Duty Pillar

Heavy Duty Pillar Type

Heavy duty pillar drill with 25mm capacity in steel, 267mm spindle-to-column distance, and 177mm spindle travel. MT-3 spindle (MT-4 optional) with 342mm square table.

  • Drilling: 25mm in Steel
  • Spindle Taper: MT-3 (MT-4 opt.)
  • Speeds: 8 (96 to 3,200 RPM)
  • Motor: 1 HP / 1,440 RPM

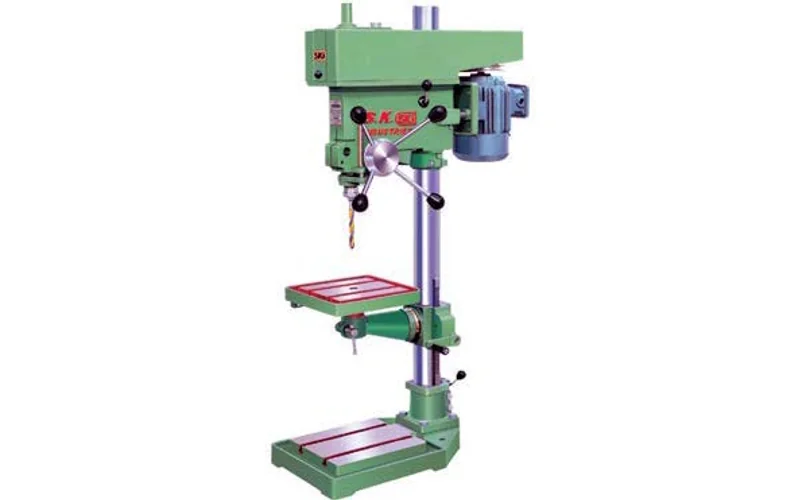

20 mm20mm CAP Bench & Pillar Drill Machine
Model: 20mm CAP Drill Machine

Compact Pillar & Bench Type Drill

Three mounting configurations: bench type (SBR), floor with round column (SFR), and floor with square column (SPR). Ideal for small workshops and light-duty drilling up to 20mm in mild steel.

  • Drilling: 20mm in Steel
  • Spindle Taper: MT-2
  • Speeds: 8 (86 to 3,360 RPM)
  • Motor: 0.55 KW / 1 HP, 3-Phase

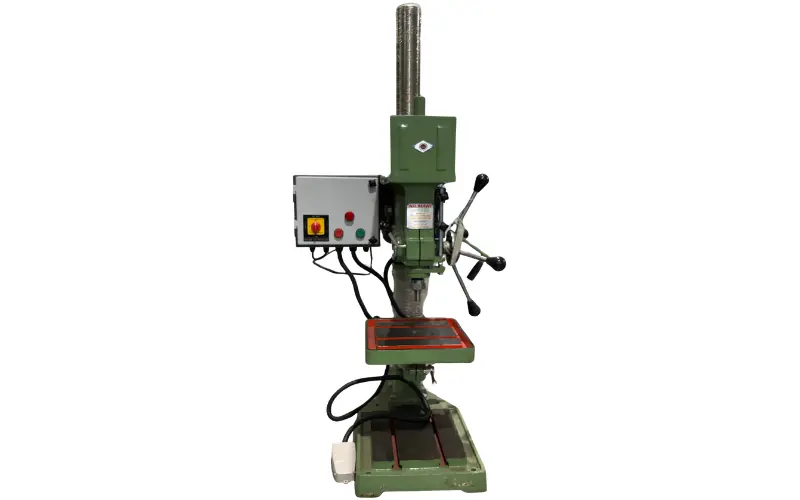

Drill + Tap20mm Drilling Cum Tapping Machine
Model: 20mm Drilling Cum Tapping

Drilling Cum Tapping Machine

The 20mm CAP drill with added tapping, so you can drill a hole and cut its thread on the same machine. Same specifications as the Compact Pillar & Bench Type Drill.

  • Drilling: 20mm in Steel
  • Tapping: 12mm CI · 6–8mm MS / SS
  • Speeds: 8 (86 to 3,360 RPM)
  • Motor: 0.55 KW / 1 HP, 3-Phase
Engineering Data Sheets

Detailed Technical Specifications (All 7 Configurations)

Request Model-Specific Quote

All Geared Radial Drilling Machine (40/900-AF)

All Geared · Radial
SPECIFICATIONUnit40/900-AF
Drilling Capacity (MS)mm38
Drilling Capacity (CI)mm40
Boring Capacitymm50
Tapping Capacity (MS)mm20
Tapping Capacity (CI)mm22
Spindle Nose—MT-4
Spindle Nose Outside Diametermm78
Spindle Sleeve Diametermm85
Spindle Travelmm240
Spindle Speed RangeRPM50 to 1,750
Drilling Head MotorHP2.5
Motor SpeedRPM1,400 to 2,800
Arm Elevating Motor—0.5 HP, 1,440 RPM
Column Diametermm170
Spindle to Base (Min / Max)mm230 / 960
Column to Spindle Centre (Min / Max)mm335 / 900
Drilling Head Travelmm560
Drilling Radiusmm980
Arm Travelmm785
Base Plate Heightmm150
Working Surfacemm600 x 865
No. of T-Slots—4 (18mm)
Overall Dimensions (L x W x H)mm1,300 x 900 x 1,800
V-Belt (Arm Lifting Motor)—A-24
Weight (Approx.)kg850

V-Belt Driven Radial Drilling Machine (SER-1 / SER-2)

2 Variants · Radial
SPECIFICATIONUnitValue
Drilling Capacity (MS)mm38
Drilling Capacity (CI)mm38
Spindle Nose—MT-4
Spindle Travelmm220
No. of Spindle Speeds—8
Spindle Speed RangeRPM62 to 1,980
Range of Power Feed (SER-2)mm/Rev0.08 to 0.04 (2 feeds)
Drilling Radius (Max / Min)mm895 / 440
Max / Min Column to Spindlemm810 / 360
Max Drill Head Travel on Armmm450
Max / Min Base Plate to Spindlemm930 / 230
Swivel of Arm (L/R)degrees90
Column Diametermm165
Base Plate Size (L x W x H)mm750 x 1,250 x 150
Working Surfacemm820 x 610
No. of T-Slots—4 (16mm)
Overall Heightmm2,000
Box Table (L x W x H)mm380 x 300 x 300
Main MotorHP1.5 (V-Belt: B-46)
Arm Elevating MotorHP0.5 (V-Belt: A-23)
Design Features
  • Alloy steel main spindle with 6 slots, MT bore internally ground
  • Spindle mounted on 5 ball and roller bearings
  • Helical-teethed gears for smooth, noiseless running
  • Gradations on protractor for arm swivel to required degree
  • Automatic adjustable depth control
  • Auto and manual feed options
Equipment

Standard: Motor pulleys (2 nos.), drill drift, oil can

Optional: Box table with T-slots, V-belt, coolant pump & tank, electric control panel, electric motors

40mm CAP Heavy Duty Pillar Drill

Heavy Duty · 40 mm
SPECIFICATIONUnitValue
Drilling Capacity in Steelmm40
No. of Spindle Speeds—8
Spindle Speed RangeRPM45 to 1,350
Spindle Nose—MT-4
Spindle Centre to Column Facemm320
Spindle Travelmm250
Square Table Sizemm460 x 460
Max Distance Spindle to Tablemm500
Max Distance Spindle to Basemm950
Working Surface of Basemm505 x 530
Column Diametermm120
Machine Basemm730 x 530
Overall Dimensionmm800 x 940 x 530
V-Belt—B-65
Motor—1.5 HP / 1,440 RPM, 3-Phase
Weight (Approx.)kg350

25mm Cap Drilling with 15" Centre

Extended Reach
SPECIFICATIONUnitValue
Drill Capacity (MS)mm25
Drill Capacity (CI)mm32
Tapping Capacitymm19
No. of Spindle Speeds—8
Spindle Speed RangeRPM96 to 3,200
Spindle Taper—MT-4
Centre to Columnmm381 (15")
Spindle Travelmm165
Column Diametermm90
Table Size (Square/Round)mm465
Base Sizemm635 x 435
Motor—1.5 / 2 HP, 3-Phase
Weight (Approx.)kg230

25mm CAP Heavy Duty Pillar Drill

Pillar Type
SPECIFICATIONUnitValue
Drilling Capacitymm25
No. of Spindle Speeds—8
Spindle Speed RangeRPM96 to 3,200
Spindle Nose—MT-3 (MT-4 optional)
Spindle Centre to Columnmm267
Spindle Travelmm177
Table Size (Square)mm342 x 342
Overall Heightmm1,625
Motor—1 HP / 1,440 RPM, 3-Phase
Weight (Approx.)kg215

20mm CAP Drill Machine (SBR / SFR / SPR)

3 Variants · Bench & Floor
SPECIFICATIONUnit20 SBR20 SFR20 SPR
Capacity
Drilling Capacity in Steelmm202020
No. of Spindle Speeds—888
Spindle Speed RangeRPM86-154-260-460-617-1100-1880-336086-154-260-460-617-1100-1880-336086-154-260-460-617-1100-1880-3360
Spindle
Spindle Nose—MT-2MT-2MT-2
Spindle Centre to Columnmm203203203
Spindle Travelmm130130130
Table & Motor
Table Sizemm275 x 275275 x 275275 x 275
Motor—0.55 KW / 1 HP0.55 KW / 1 HP0.55 KW / 1 HP
Weight (Approx.)kg96105115

Variants: 20 SBR (Bench Type) · 20 SFR (Floor, Round Column) · 20 SPR (Floor, Square Column). Same performance across all mounting configurations; only weight differs.

20mm Drilling Cum Tapping Machine

Drill + Tap · 20 mm
SPECIFICATIONUnit20 SBR20 SFR20 SPR
Capacity
Drilling Capacity in Steelmm202020
Tapping Capacity in Cast Iron (CI)mm121212
Tapping Capacity in MS / SSmm6–86–86–8
No. of Spindle Speeds—888
Spindle Speed RangeRPM86-154-260-460-617-1100-1880-336086-154-260-460-617-1100-1880-336086-154-260-460-617-1100-1880-3360
Spindle
Spindle Nose—MT-2MT-2MT-2
Spindle Centre to Columnmm203203203
Spindle Travelmm130130130
Table & Motor
Table Sizemm275 x 275275 x 275275 x 275
Motor—0.55 KW / 1 HP0.55 KW / 1 HP0.55 KW / 1 HP
Weight (Approx.)kg96105115

Same specifications as the 20mm CAP drill machine, with added tapping capacity.

Industrial Sectors

Industries & Applications We Serve

Raney Machine Tools' workshop machinery supplies critical manufacturing, heavy maintenance, and fabrication facilities across Gujarat and worldwide.

Automotive & Components

Transmission housings, brake and steering assemblies, precision fasteners, and high-volume component production.

Defence & Ordnance

High-tensile alloy machining, ordnance component fabrication, and precision assemblies for defence contractors.

Pumps, Valves, Oil & Gas

Pump housings, valve bodies, flanges, threaded connectors, and heavy pipe fabrication for oilfield equipment.

Sugar & Cement Plants

Crusher and kiln roller maintenance, heavy trunnion assemblies, and general plant-floor machining.

Steel & Power Generation

Rolling-mill maintenance, turbine and generator shaft servicing, and heavy structural fabrication.

Toolrooms & Institutes

Die & mould shops, jig/fixture fabrication, ITI/Polytechnic training institutes, and R&D toolrooms.

The Raney Advantage

Why Source Drill Machines from Raney Machine Tools?

When you purchase drill machines from Raney Machine Tools, you gain direct access to four decades of machine-tool engineering expertise, factory-backed guarantees, and end-to-end operational support.

  • Authorized Distributor: Genuine machines with full OEM manufacturer warranty.
  • Ready Stock: Immediate availability across the range for fastest turnaround.
  • Application Guidance: Technical engineers help match the machine to your workpiece.
  • Immediate Service Within 48 Hours: Alignment inspection & genuine spare parts supply.
  • Competitive Pricing: Direct distributor rates with no middleman markup.
  • Export Ready: Sea-worthy wooden crating & international documentation.
Raney Machine Tools Showroom & Warehouse in Ahmedabad

Ahmedabad Central Machinery Showroom

1/A, Ramnesh Estate, Opp. Shilp Arcade, Memco-Bapunagar Road, Ahmedabad - 380025

Proven In Production

Trusted by Industry Leaders Across Gujarat & Overseas

Anchor by Panasonic
Bomafa
Circor
Coastal Gujarat Power Limited
ITT
Jaypee Group
L&T
LA Gajjar
Lineomatic
Lubi
Mazda Limited
Melwire Group
Monte Carlo
Navneet
Varroc
Zydus Group
Common Questions

Frequently Asked Questions

Common questions on drill machine capacities, radial vs pillar designs, and spindle bore selection.

We supply three types: radial drill machines (all geared and V-belt driven) for large workpieces where the drill head moves to the work, pillar type drill machines (20mm to 40mm capacity), and a drilling cum tapping machine for drilling and threading on one machine. Seven configurations in total.
A pillar drill has a fixed spindle column; the workpiece moves on the table to align with the drill. A radial drill has a swinging arm that lets the drill head move over the workpiece, making it practical for large, heavy parts that cannot be repositioned easily. Pillar drills suit smaller workshops; radial drills suit fabrication and heavy engineering shops.
Match the drilling capacity to the largest hole you need to drill regularly. A 20mm capacity machine handles most light engineering work. A 25mm to 32mm machine covers medium-duty production. A 40mm machine is for heavy fabrication, flange work, and structural steel. Remember that the rated capacity is for mild steel; harder materials reduce the effective maximum.
It is our 20mm CAP drill machine with tapping added, so you can drill a hole and cut its thread on the same machine. Specifications match the 20mm CAP drill, with a tapping capacity of 12mm in cast iron and 6–8mm in mild steel and stainless steel.
Our drill machines use Morse Taper (MT) shanks: MT-2 on the 20mm models, MT-3 on the 25mm heavy duty model (MT-4 optional), and MT-4 on the 25mm with 15" centre, the 40mm model and both radial drills. This is the industry-standard taper for drill chucks and tooling, so compatible tooling is widely available.
Yes. Our drill machines accept standard tapping attachments for threading operations. The 12 speed steps let you select the correct RPM for the tap diameter and material. Some models include a spindle reverse function for easy tap withdrawal.
All our drill machines operate on 3-phase power supply (standard industrial 415V, 50 Hz in India). Motor ratings range from 1 HP to 2.5 HP depending on the model and drilling capacity. Single-phase models are not available for industrial-grade machines.
Direct Factory Pricing

Request a Commercial Quotation

Tell us your drilling capacity requirement, workpiece dimensions, and production volume. Our application engineers will respond within 2-4 business hours with machine recommendations and pricing.

Success! Your inquiry has been sent to our sales engineering team.

Visit Showroom / Quick Contact

Raney Machine Tools Showroom1/A, Ramnesh Estate, Opp. Shilp Arcade, Memco-Bapunagar Road, Ahmedabad - 380025, Gujarat, India
Technical Sales Hotline+91 99253 43026
Instant WhatsApp Support+91 70410 38728 (Instant Response)
Official Sales Emailinfo@raneymachinetools.com
Working HoursMonday - Saturday: 9:00 AM to 7:00 PM

Need Help Choosing the Right Drill Machine?

Our team can recommend the right configuration for your workshop requirements, workpiece material, and production volume.

Request Quote Call Us
