What types of lathe machines does Raney Machine Tools supply?

We supply belt-driven lathe machines in light duty, medium duty, heavy duty, and extra heavy duty configurations, plus four all geared models (VGM-215, AGLM 6'3", VGH-267 Tech Master and AGLM-304). Swing over bed ranges from 315mm to 735mm, with bed lengths from 4'6" (1,370mm) to 16' (4,875mm), covering everything from small tool room work to large-diameter turning for production workshops.

What is the difference between a light duty and a heavy duty lathe machine?

Light duty lathes (typically 250mm to 350mm swing) are designed for smaller workshops, tool rooms, and training institutes where the work involves lighter materials and shorter runs. Heavy duty lathes (500mm swing and above) handle larger workpieces, harder materials, and continuous production turning. The difference shows in spindle bore, bed rigidity, motor power, and the range of spindle speeds available.

What does "all-geared head" mean in a lathe machine?

An all-geared head means the spindle speed is changed through a gearbox rather than a belt-and-pulley system. This provides constant torque across all speed ranges, better power transmission at low speeds for heavy cuts, and more reliable speed control. Four of our eight lathe configurations are all geared: the VGM-215, AGLM 6'3", VGH-267 Tech Master and AGLM-304.

How do I choose the right lathe machine size for my workshop?

Start with the largest diameter and longest workpiece you need to turn. The swing over bed determines the maximum workpiece diameter, and the bed length (or distance between centres) determines the maximum workpiece length. Then factor in spindle bore (for bar work), motor power (for material hardness), and speed range (for surface speed requirements). Our team can help you match these to a specific model.

Does Raney Machine Tools provide delivery, installation and service for lathe machines?

Yes. We arrange delivery, installation, and commissioning for every lathe machine we sell. Delivery and commissioning are charged extra and are not included in the machine price; we quote them along with your order. After that, our Ahmedabad service team provides immediate service within 48 hours, warranty coordination, and genuine spare parts. We have been servicing workshop machinery in Gujarat since 1983.

Can I get a lathe machine with a DRO (Digital Readout) system?

Yes, DRO systems can be fitted to our lathe machines for precise dimension readout on both axes. This improves accuracy and reduces setup time, especially for job shops producing one-off and small-batch work. Ask our team about DRO options when requesting a quote.

What industries use the lathe machines supplied by Raney Machine Tools?

Our lathe machines are used across automotive component manufacturing, general engineering, tool and die making, defence production, pump and valve manufacturing, and educational institutions. Clients include L&T, Anchor by Panasonic, ITT, Mazda, Monte Carlo, Lubi, and BOMAFA, with exports to Sri Lanka, Bahrain, Oman, UAE, and Saudi Arabia.

What is the typical delivery time for a lathe machine order?

Delivery depends on the model and configuration. Standard models in stock ship within 7 to 10 working days. Custom configurations or heavy duty machines may take 3 to 6 weeks. Contact us with your requirements for a specific timeline.

Lathe Machines in Ahmedabad | Raney Machine Tools

Heavy Duty Industrial Grade Extra Heavy Duty Lathe Machine

Product Range

Lathe Technical Highlights

In Stock

Commercial Terms	Direct Distributor Pricing
Available Models	All Geared & V-Belt Driven
Height of Center	175 mm to 1250 mm
Bed Lengths	4'6" (1370 mm) to 50'0" (15240 mm)
Spindle Bore Options	38 mm to 250 mm

Request Price Quotation WhatsApp: +91 70410 38728

8 Models

In-Stock Configurations

40+ Years

Industry Heritage (Est. 1983)

7+ Blue-Chip Clients

L&T, Panasonic, Mazda, Lubi

5 Countries

International Export Footprint

Precision Metal Turning Solutions

Engineered for Rigidity, Torque, and Repeatable Accuracy

Since 1983, Raney Machine Tools has supplied high-performance lathe machines in Ahmedabad, Gujarat, covering 8 standard and heavy-duty configurations for virtually any industrial turning operation. From compact light duty lathes for educational workshops and maintenance rooms, to massive 16-foot extra heavy duty machines for large-diameter shafts, forgings, and cylinders, our machines deliver unmatched rigidity and long-term dimensional precision.

Every lathe machine in our lineup is sourced directly through authorized manufacturer channels, featuring stress-relieved Grade 25 cast iron beds, precision-ground induction hardened guideways, and dynamically balanced main spindles. We support our clients with full OEM manufacturer warranties, on-site commissioning (charged separately), immediate service within 48 hours, and a guaranteed inventory of genuine spare parts.

Belt-Driven Economy Range

Simple, cost-effective V-belt & flat-belt transmissions with smooth vibration dampening, ideal for general job shops, light-to-medium fabrication, and repair work.

All-Geared Head Precision

Hardened gearboxes deliver constant torque across 8 to 12 speeds, featuring full Norton gearboxes for instant metric & imperial threading without changing gears.

Trusted Industrial Partner

Trusted by India's premier engineering corporations and exported to 5 overseas destinations.

Larsen & Toubro (L&T)
Anchor by Panasonic
ITT Industries & Mazda
Monte Carlo & Lubi Pumps
BOMAFA Valve Technologies

Export Destinations Sri Lanka • Bahrain • Oman • UAE • Saudi Arabia

Stock Inventory

Our 8 Lathe Machine Configurations

Browse our complete lineup of 4 belt-driven and 4 all-geared industrial lathes. Select any model to jump straight into its full dimensional and engineering specification matrix.

1. Belt-Driven Lathe Machines (Economy & Workshop Series)

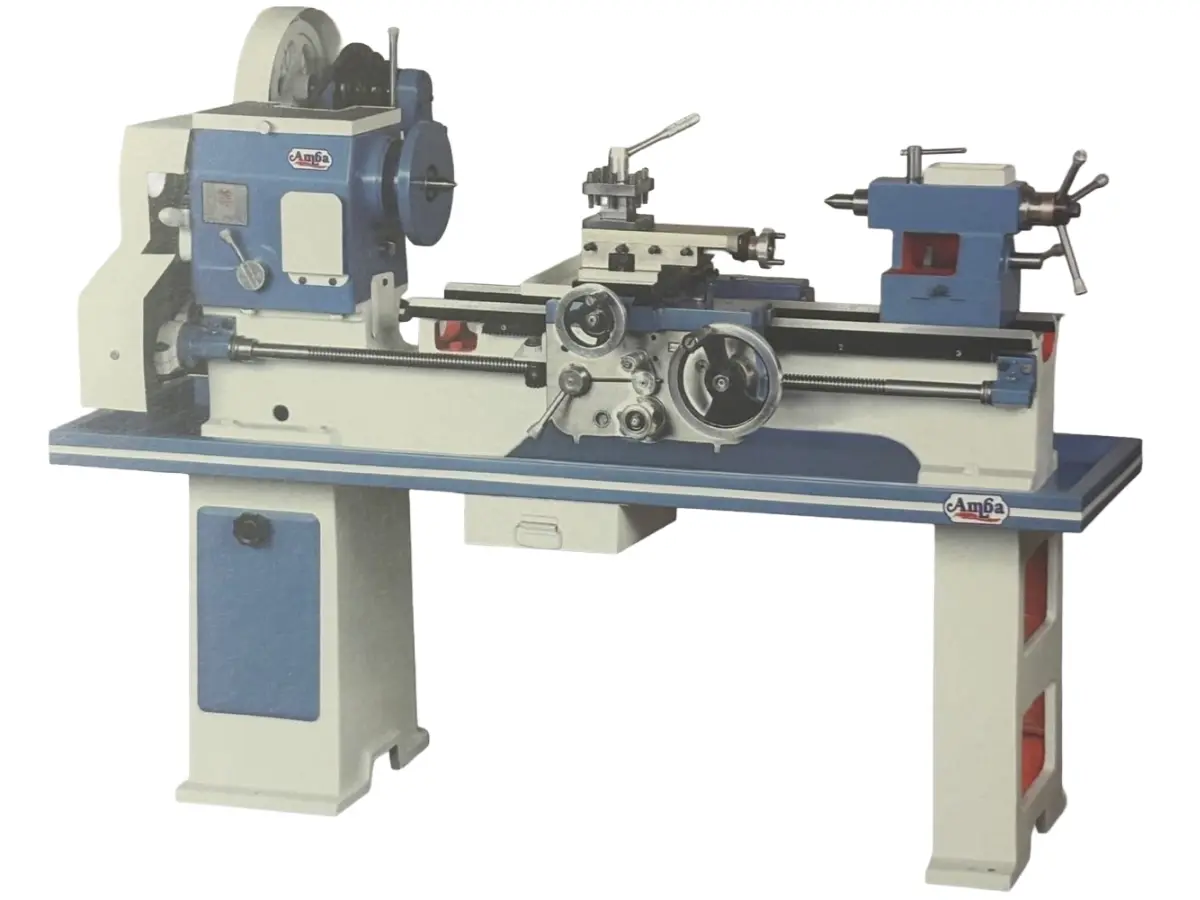

4'6" to 6' Light Duty Lathe Machine

Model: Light Duty

Light Duty Lathe

Compact belt-driven lathe for training centres, small workshops, and light turning in non-ferrous metals and mild steel.

Swing over Bed: 315 mm
Spindle Bore: 40 mm
Bed Lengths: 4'6", 5'3", 6'
Speed Steps: 8 (25-730 RPM)

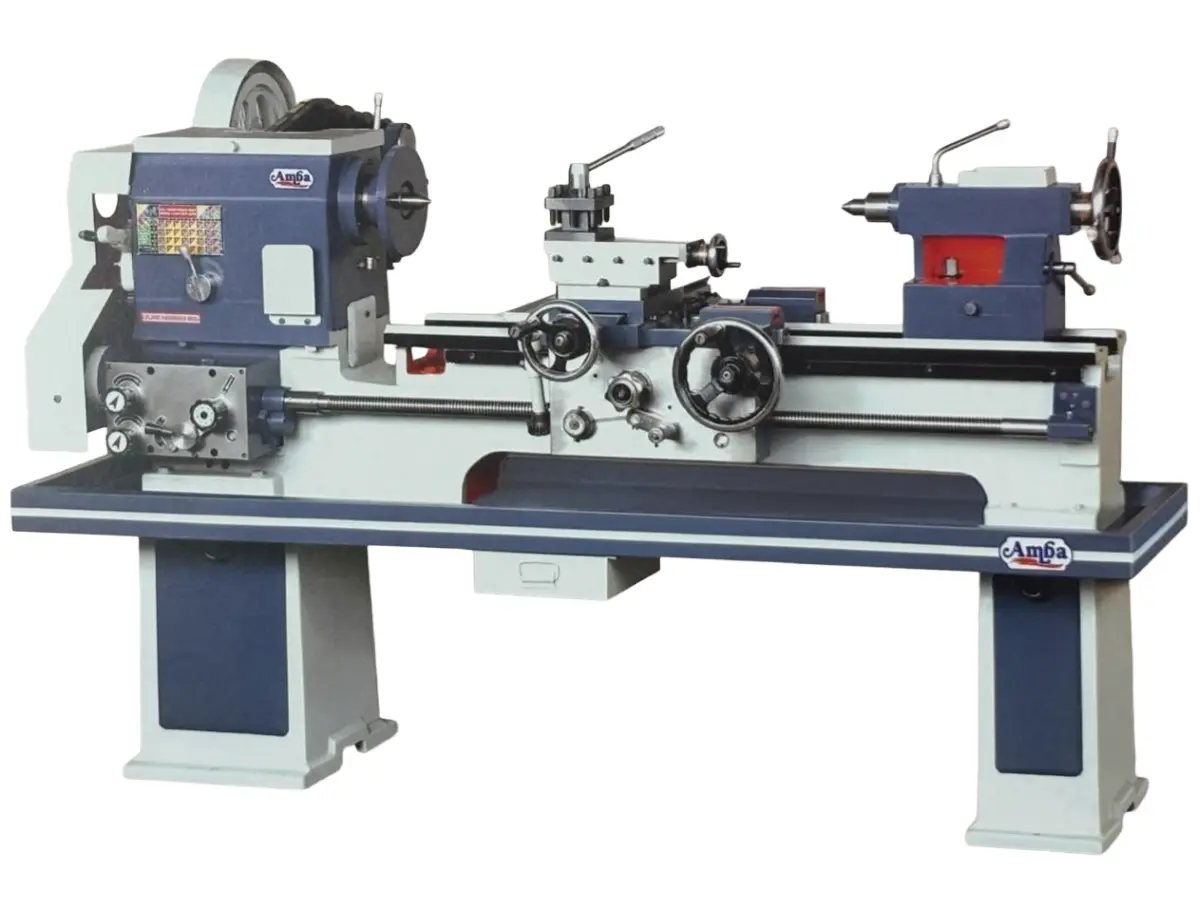

4'6" to 6' Medium Duty Lathe Machine

Model: Medium Duty

Medium Duty Lathe

The workhorse of machine shops. Rigid bed and 2 HP motor for shaft turning, threading, and production machining.

Swing over Bed: 420 mm (645 gap)
Spindle Bore: 52 mm
Power Required: 2 HP / 1.5 kW
Bed Lengths: 4'6", 5'3", 6'

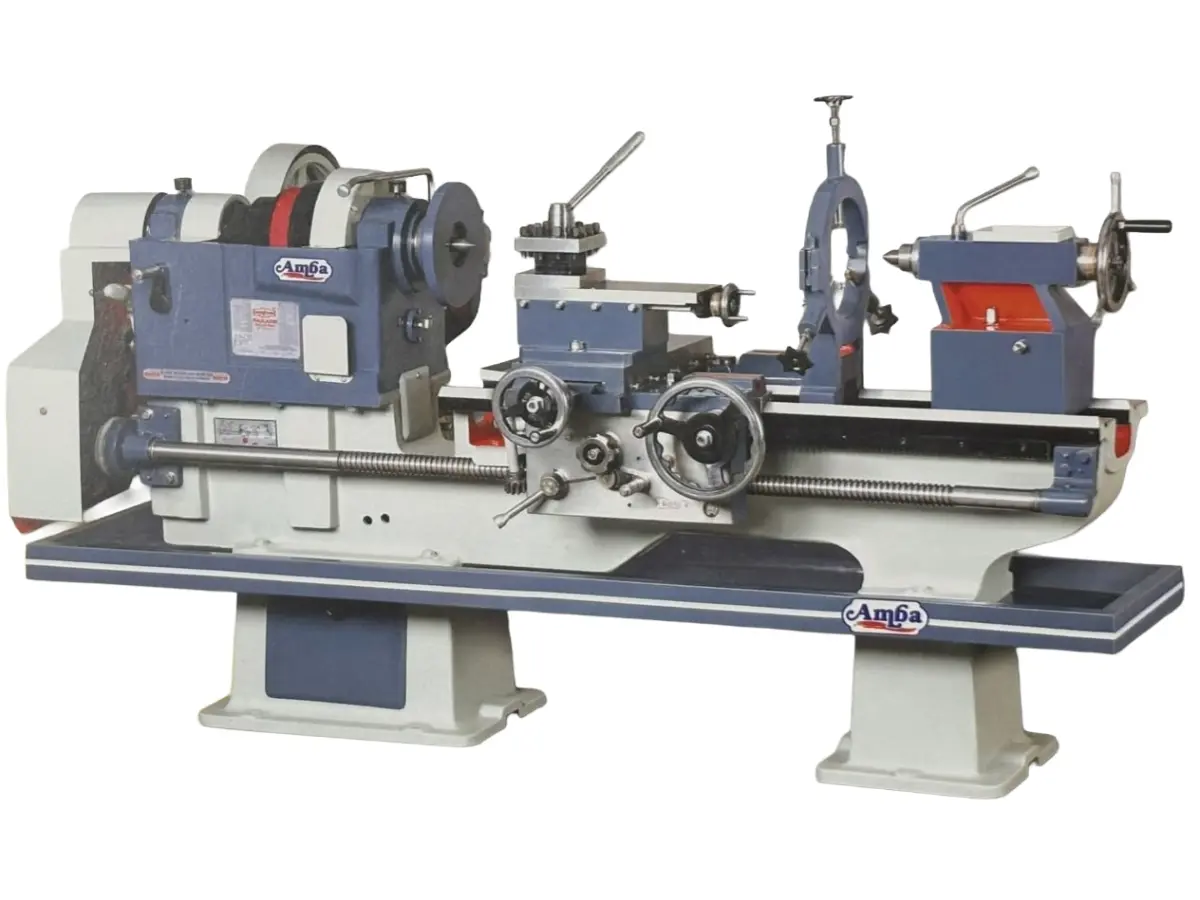

5'6" to 16' Heavy Duty Lathe Machine

Model: Heavy Duty

Heavy Duty Lathe

Built for sustained heavy roughing cuts on large shafts, forgings, and alloy steels in sugar mills and heavy plants.

Swing over Bed: 490 mm (780 gap)
Spindle Bore: 52 / 80 / 100 mm
Power Required: 3 HP / 2.25 kW
Bed Lengths: 5'6" to 16' (7 sizes)

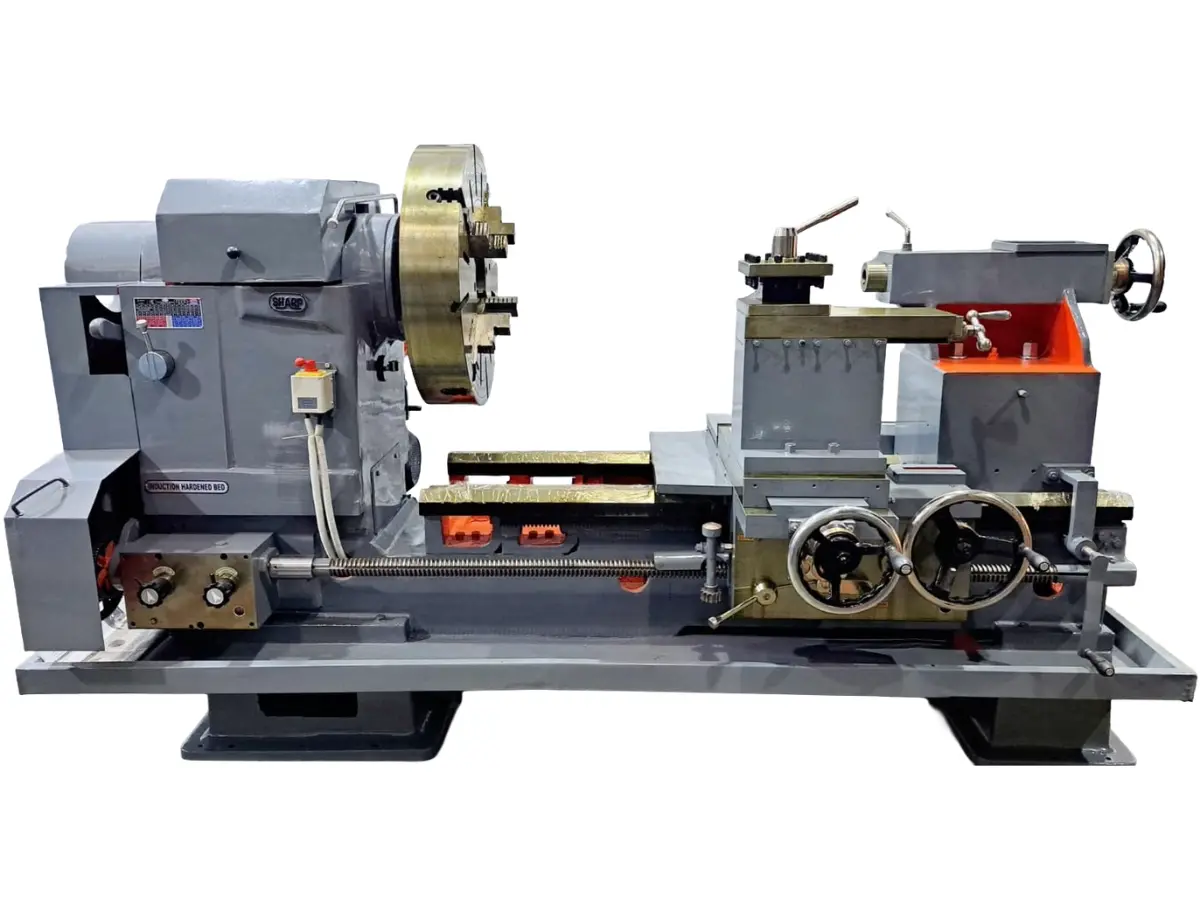

5'6" to 16' Extra Heavy Duty Lathe Machine

Model: Extra Heavy Duty

Extra Heavy Duty Lathe

Widest 375 mm bed with 735 mm swing for large rolls, cylinders, and structural components in steel & cement plants.

Swing over Bed: 735 mm
Spindle Bore: 78 / 100 / 125 mm
Bed Width: 375 mm
Power Required: 3 HP / 5 HP

2. All Geared Head Lathe Machines (High Torque & Precision Series)

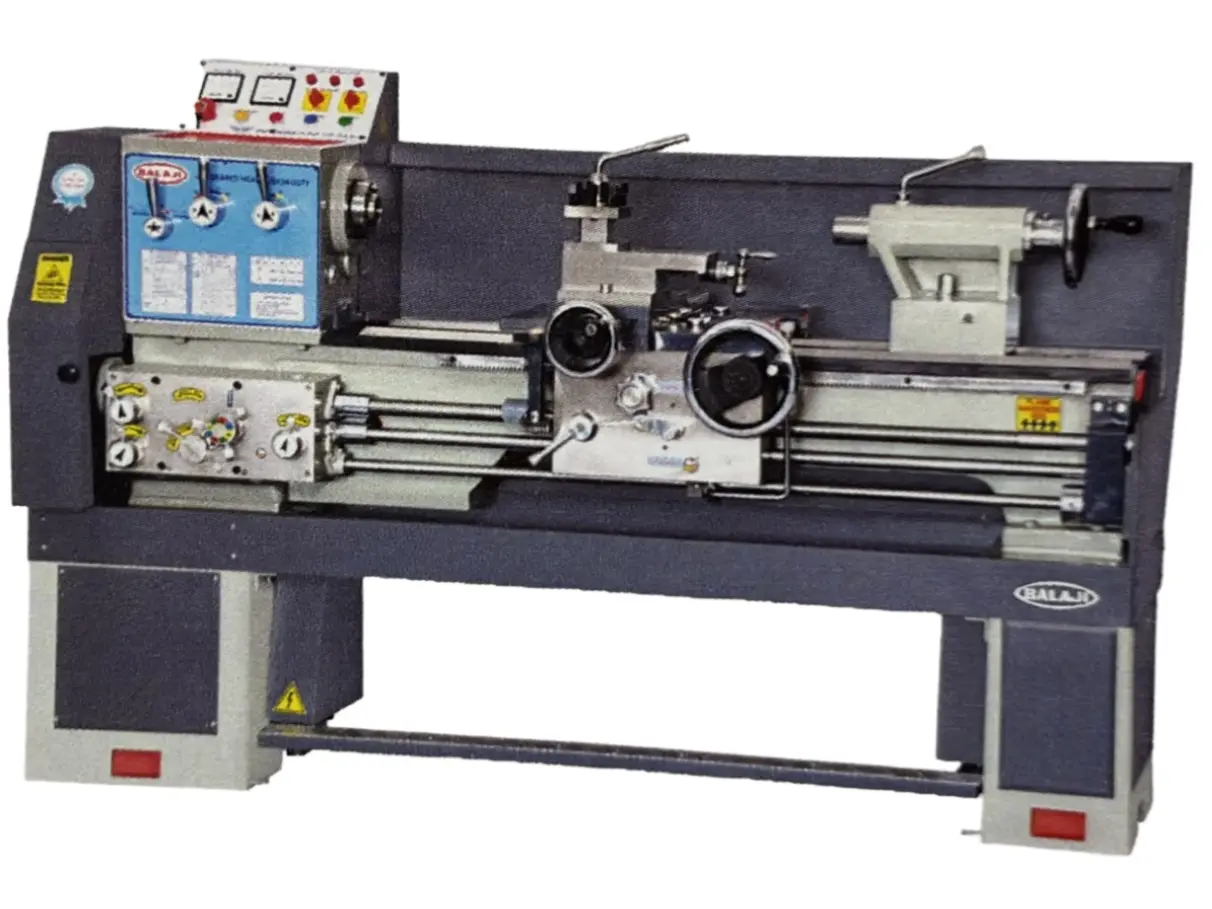

6' (1825 mm) Geared Lathe VGM-215

Model: 215

Geared Head

8-speed geared head with full Norton gearbox. Engineered for precision toolrooms and accurate threading.

Swing over Bed: 420 mm (620 gap)
Spindle Bore: 38 mm (A2-4 nose)
Speeds: 8 (40 to 1200 RPM)
Threading: 24 Metric / 44 Inch

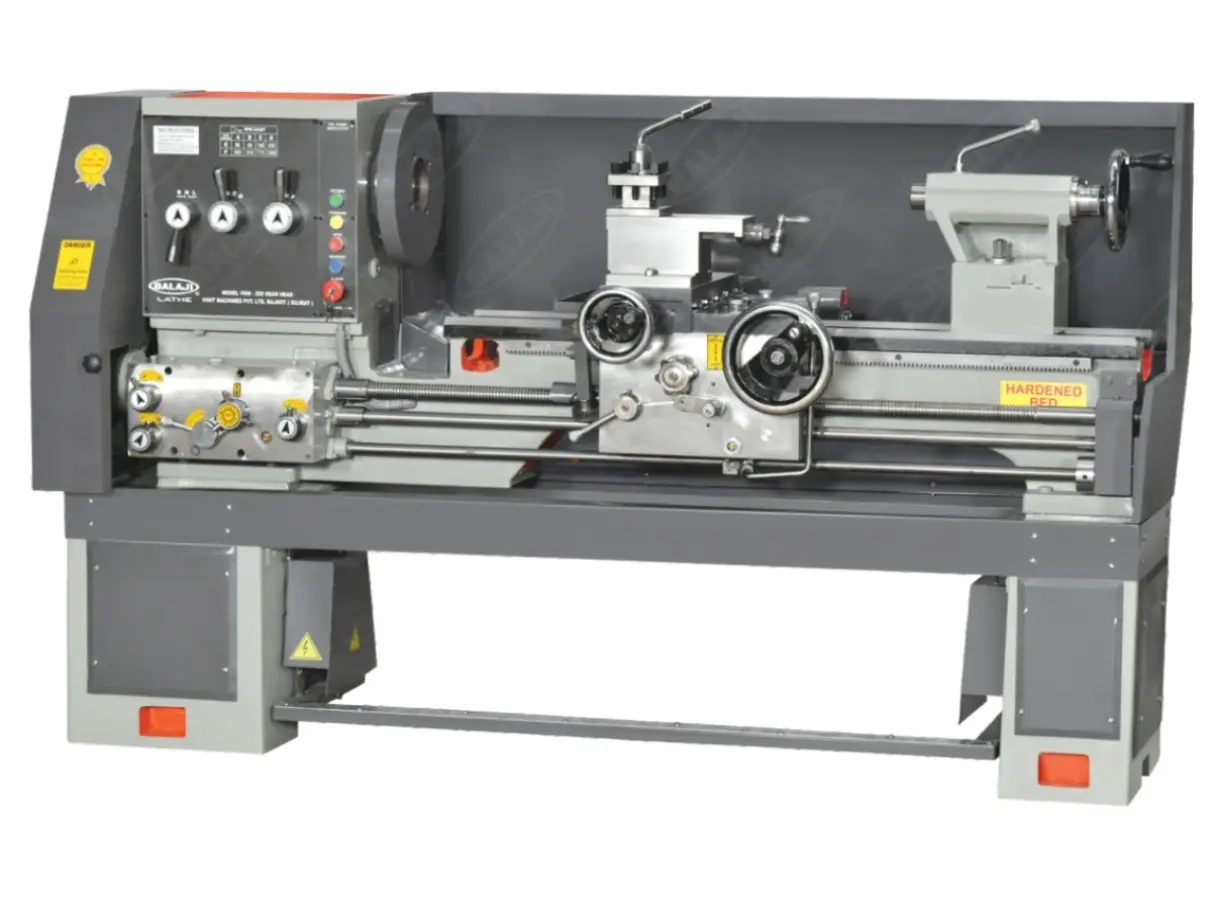

6'3" (1900 mm) Geared Lathe AGLM 6ft 3in

Model: 255

Geared Head

Larger 65 mm spindle bore and 495 mm swing. Ideal for medium-to-heavy workshops handling pipe turning and bar stock.

Swing over Bed: 495 mm (700 gap)
Spindle Bore: 65 mm (A2-6 nose)
Speeds: 8 (55 to 1200 RPM)
Power Required: 3 HP (3-Phase)

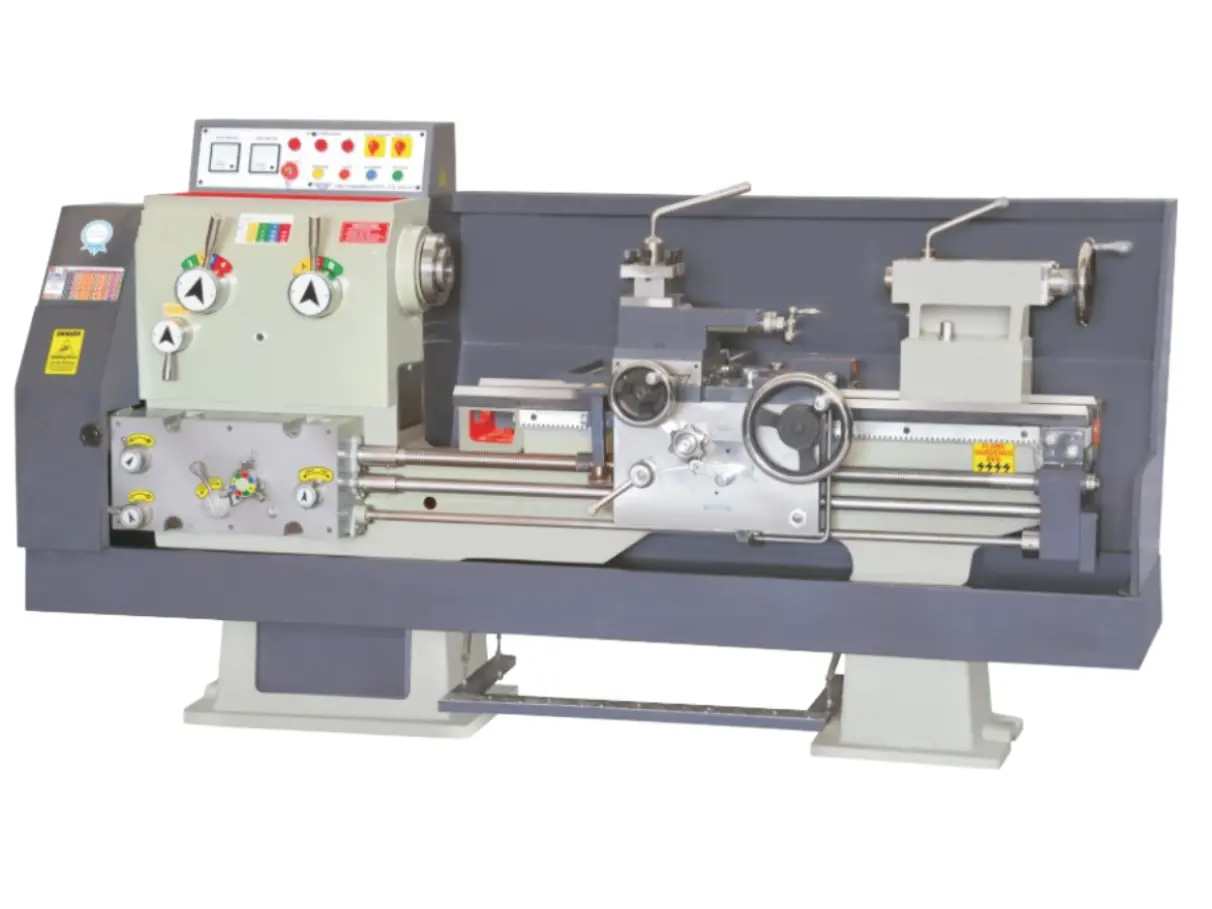

7' to 14'

Model: 267

Geared Head

12-speed heavy duty gearbox available in 267 mm or 304 mm centre heights. Built for high-volume shaft production.

Swing over Bed: 525 / 600 mm
Spindle Bore: 50 / 79 / 104 mm
Speeds: 12 (30 to 1060 RPM)
Bed Lengths: 7', 9', 10', 12', 14'

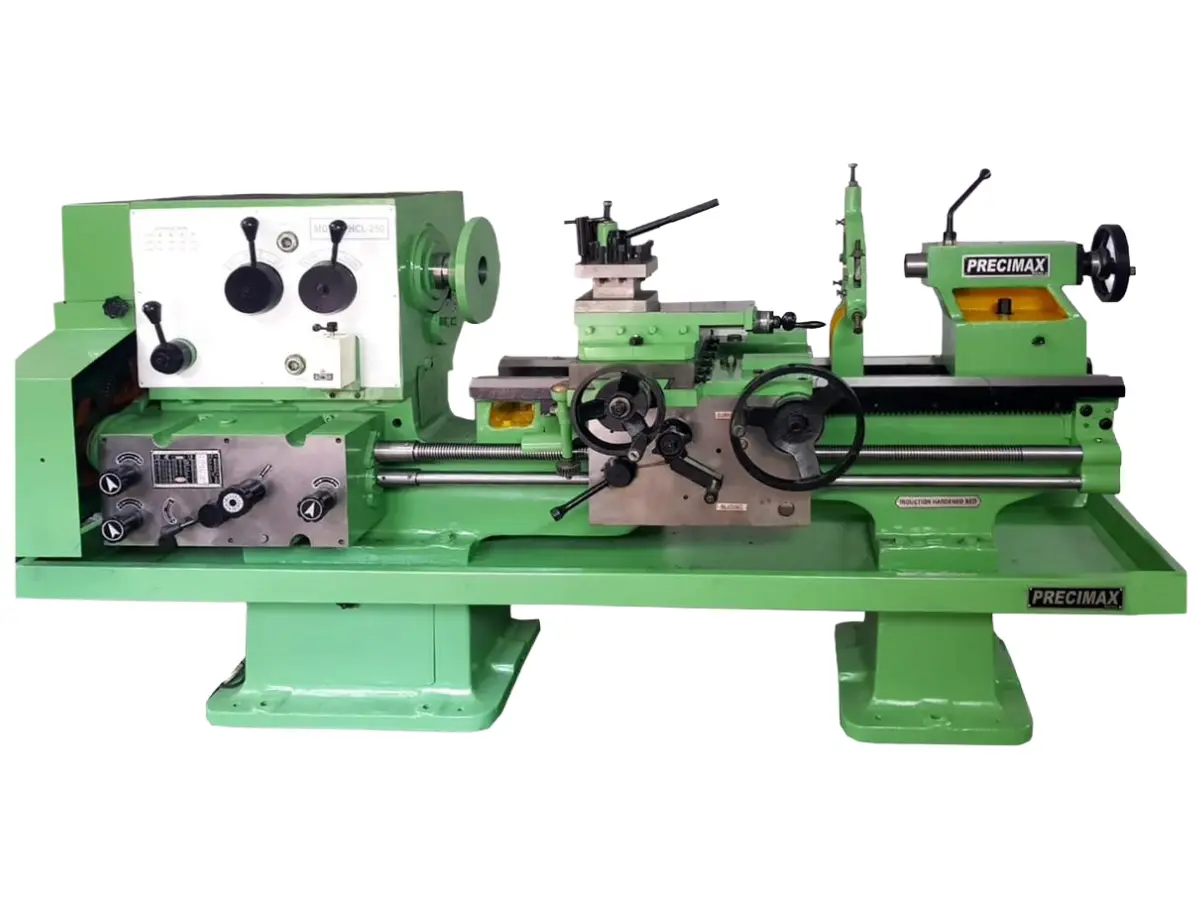

7' to 14' (Widest Bed) Geared Lathe 304 Heavy Duty

Model: 304

Geared Head

Our flagship geared lathe. 375 mm bed width, up to 730 mm swing, and 1040 mm swing in gap for the heaviest turning.

Swing over Bed: 580 / 680 / 730 mm
Centre Heights: 304 / 355 / 380 mm
Spindle Bore: 79 / 104 mm (A2-8)
Bed Width: 375 mm (5 HP Motor)

Engineering Data Sheets

Detailed Technical Specifications (All 8 Models)

Request Model-Specific Quote

Light Duty Lathe Machine

Belt-Driven • 4'6", 5'3", 6'

SPECIFICATION	4' 6" (1370 mm)	5' 3" (1600 mm)	6' (1825 mm)
BED
Bed Length	1370 mm (4' 6")	1600 mm (5' 3")	1825 mm (6')
Bed Width	235 mm	235 mm	235 mm
Height of Center	165 mm / 175 mm	254 mm	254 mm
Admit Between Center	700 mm	700 mm	700 mm
Swing over Bed	315 mm	315 mm	315 mm
Swing over Cross Slide	160 mm	160 mm	160 mm
Swing over Carriage	215 mm	215 mm	215 mm
MAIN SPINDLE
Spindle Nose Dia.	60 mm	60 mm	60 mm
Spindle Threads	8 TPI	8 TPI	8 TPI
Spindle Bore	40 mm	40 mm	40 mm
Taper Bore in Spindle Sleeve	MT-3	MT-3	MT-3
Spindle Speed (No. of Steps)	8	8	8
Spindle Range	25 - 730 RPM	25 - 730 RPM	25 - 730 RPM
Spindle Drive	V-Belt	V-Belt	V-Belt
Spindle Mounting	Taper Roller Bearings	Taper Roller Bearings	Taper Roller Bearings
THREADS
Lead Screw Dia / Threads	25.4 mm x 6 TPI	25.4 mm x 6 TPI	25.4 mm x 6 TPI

Medium Duty Lathe Machine

Belt-Driven • 2 HP Motor • 4'6", 5'3", 6'

SPECIFICATION	4' 6" (1370 mm)	5' 3" (1600 mm)	6' (1825 mm)
BED
Bed Length	1370 mm (4' 6")	1600 mm (5' 3")	1825 mm (6')
Bed Width	279 / 305 mm	279 mm	279 mm
Height of Center	215 mm	215 mm	215 mm
Admit Between Center	500 mm	750 mm	975 mm
Swing over Bed	420 mm	420 mm	420 mm
Swing over Cross Slide	242 mm	242 mm	242 mm
Swing in Gap	645 mm	645 mm	645 mm
MAIN SPINDLE
Spindle Nose Dia.	76.2 mm	76.2 mm	76.2 mm
Spindle Threads	6 TPI	6 TPI	6 TPI
Spindle Bore	52 mm	52 mm	52 mm
Taper Bore in Spindle Sleeve	MT-4	MT-4	MT-4
Spindle Speed (No. of Steps)	6	6	6
Spindle Range	40 - 550 RPM	40 - 550 RPM	40 - 550 RPM
Spindle Drive	V-Belt	V-Belt	V-Belt
Spindle Mounting	Taper Roller Bearings	Taper Roller Bearings	Taper Roller Bearings
THREADS
Lead Screw Dia / Threads	31.75 mm x 4 TPI	31.75 mm x 4 TPI	31.75 mm x 4 TPI
ELECTRICALS
Electric Motor	2 HP / 1.5 kW	2 HP / 1.5 kW	2 HP / 1.5 kW
Motor RPM	1440	1440	1440

Heavy Duty Lathe Machine (7 Bed Lengths)

Belt-Driven • 5'6" to 16' (1675 mm to 4875 mm)

SPECIFICATION	5' 6" (1675 mm)	7' (2135 mm)	9' (2743 mm)	10' (3048 mm)	12' (3658 mm)	14' (4267 mm)	16' (4875 mm)
BED
Bed Length	1675 mm (5' 6")	2135 mm (7')	2743 mm (9')	3048 mm (10')	3658 mm (12')	4267 mm (14')	4875 mm (16')
Bed Width	323 mm	323 mm	323 mm	323 mm	323 mm	323 mm	323 mm
Height of Center	254 / 305 mm	254 mm	254 mm	254 mm	254 mm	254 mm	254 mm
Admit Between Center	500 mm	1000 mm	1600 mm	1905 mm	2515 mm	3120 mm	3725 mm
Swing over Bed	490 mm	490 mm	490 mm	490 mm	490 mm	490 mm	490 mm
Swing over Cross Slide	289 mm	289 mm	289 mm	289 mm	289 mm	289 mm	289 mm
Swing in Gap	780 mm	780 mm	780 mm	780 mm	780 mm	780 mm	780 mm
MAIN SPINDLE
Spindle Nose Dia.	76.2 mm	76.2 mm	76.2 mm	76.2 mm	76.2 mm	76.2 mm	76.2 mm
Spindle Threads	6 TPI	6 TPI	6 TPI	6 TPI	6 TPI	6 TPI	6 TPI
Spindle Bore	52 / 80 / 100 mm	52 / 80 / 100 mm	52 / 80 / 100 mm	52 / 80 / 100 mm	52 / 80 / 100 mm	52 / 80 / 100 mm	52 / 80 / 100 mm
Taper Bore in Spindle Sleeve	MT-4	MT-4	MT-4	MT-4	MT-4	MT-4	MT-4
Spindle Speed (No. of Steps)	8	8	8	8	8	8	8
Spindle Range	31.3 - 595 RPM	31.3 - 595 RPM	31.3 - 595 RPM	31.3 - 595 RPM	31.3 - 595 RPM	31.3 - 595 RPM	31.3 - 595 RPM
Spindle Drive	Flat / V-Belt	Flat / V-Belt	Flat / V-Belt	Flat / V-Belt	Flat / V-Belt	Flat / V-Belt	Flat / V-Belt
Spindle Mounting Front	Bush / Taper Roller	Bush / Taper Roller	Bush / Taper Roller	Bush / Taper Roller	Bush / Taper Roller	Bush / Taper Roller	Bush / Taper Roller
Spindle Mounting Rear	Bush / Taper Roller	Bush / Taper Roller	Bush / Taper Roller	Bush / Taper Roller	Bush / Taper Roller	Bush / Taper Roller	Bush / Taper Roller
CROSS SLIDE & COMPOUND SLIDE
Cross Slide Travel	280 mm	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm
Compound Slide Travel	140 mm	200 mm	200 mm	200 mm	200 mm	200 mm	200 mm
TAIL STOCK
Spindle Dia	50 mm	50 mm	50 mm	50 mm	50 mm	50 mm	50 mm
Spindle Travel	190 mm	190 mm	190 mm	190 mm	190 mm	190 mm	190 mm
Taper Bore in Spindle Sleeve	MT-4	MT-4	MT-4	MT-4	MT-4	MT-4	MT-4
THREADS
Lead Screw Dia / Threads	45 mm x 2 TPI	45 mm x 2 TPI	45 mm x 2 TPI	45 mm x 2 TPI	45 mm x 2 TPI	45 mm x 2 TPI	45 mm x 2 TPI
ELECTRICALS
Electric Motor	3 HP / 2.25 kW	3 HP / 2.25 kW	3 HP / 2.25 kW	3 HP / 2.25 kW	3 HP / 2.25 kW	3 HP / 2.25 kW	3 HP / 2.25 kW
Motor RPM	1440	1440	1440	1440	1440	1440	1440

Extra Heavy Duty Lathe Machine (375 mm Bed Width)

Belt-Driven • 735 mm Swing • 5'6" to 16'

SPECIFICATION	5' 6" (1675 mm)	7' (2135 mm)	9' (2743 mm)	10' (3048 mm)	12' (3658 mm)	14' (4267 mm)	16' (4875 mm)
BED
Bed Length	1675 mm (5' 6")	2135 mm (7')	2743 mm (9')	3048 mm (10')	3658 mm (12')	4267 mm (14')	4875 mm (16')
Bed Width	375 mm	375 mm	375 mm	375 mm	375 mm	375 mm	375 mm
Height of Center	380 mm	380 mm	380 mm	380 mm	380 mm	380 mm	380 mm
Admit Between Center	500 mm	1000 mm	1600 mm	1905 mm	2515 mm	3120 mm	3725 mm
Swing over Bed	735 mm	735 mm	735 mm	735 mm	735 mm	735 mm	735 mm
Swing over Cross Slide	545 mm	545 mm	545 mm	545 mm	545 mm	545 mm	545 mm
MAIN SPINDLE
Spindle Nose Dia.	103 mm	103 mm	103 mm	103 mm	103 mm	103 mm	103 mm
Spindle Threads	6 TPI	6 TPI	6 TPI	6 TPI	6 TPI	6 TPI	6 TPI
Spindle Bore	78 / 100 / 125 mm	78 / 100 / 125 mm	78 / 100 / 125 mm	78 / 100 / 125 mm	78 / 100 / 125 mm	78 / 100 / 125 mm	78 / 100 / 125 mm
Taper Bore in Spindle Sleeve	MT-4	MT-4	MT-4	MT-4	MT-4	MT-4	MT-4
Spindle Speed (No. of Steps)	8	8	8	8	8	8	8
Spindle Range	31.3 - 595 RPM	31.3 - 595 RPM	31.3 - 595 RPM	31.3 - 595 RPM	31.3 - 595 RPM	31.3 - 595 RPM	31.3 - 595 RPM
Spindle Drive	Flat / V-Belt	Flat / V-Belt	Flat / V-Belt	Flat / V-Belt	Flat / V-Belt	Flat / V-Belt	Flat / V-Belt
Spindle Mounting Front	Bush / Taper Roller	Bush / Taper Roller	Bush / Taper Roller	Bush / Taper Roller	Bush / Taper Roller	Bush / Taper Roller	Bush / Taper Roller
Spindle Mounting Rear	Bush / Taper Roller	Bush / Taper Roller	Bush / Taper Roller	Bush / Taper Roller	Bush / Taper Roller	Bush / Taper Roller	Bush / Taper Roller
CROSS SLIDE & COMPOUND SLIDE
Cross Slide Travel	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm
Compound Slide Travel	200 mm	200 mm	200 mm	200 mm	200 mm	200 mm	200 mm
Tool Post	6"	6"	6"	6"	6"	6"	6"
TAIL STOCK
Spindle Dia	63.5 mm	63.5 mm	63.5 mm	63.5 mm	63.5 mm	63.5 mm	63.5 mm
Spindle Travel	210 mm	210 mm	210 mm	210 mm	210 mm	210 mm	210 mm
Taper Bore in Spindle Sleeve	MT-4	MT-4	MT-4	MT-4	MT-4	MT-4	MT-4
THREADS
Lead Screw Dia / Threads	45 mm x 2 TPI	45 mm x 2 TPI	45 mm x 2 TPI	45 mm x 2 TPI	45 mm x 2 TPI	45 mm x 2 TPI	45 mm x 2 TPI
ELECTRICALS
Electric Motor	3 HP / 2.25 kW	3 HP / 2.25 kW	3 HP / 2.25 kW	3 HP / 2.25 kW	5 HP / 3.7 kW	5 HP / 3.7 kW	5 HP / 3.7 kW
Motor RPM	1440	1440	1440	1440	1440	1440	1440

Geared Head Medium Duty Lathe - Deluxe (Model VGM-215)

All-Geared • 8 Speeds • Full Norton Gearbox

SPECIFICATION	VGM-215 6' (1825 mm)
BED
Length of Bed	1825 mm (6')
Admit Between Centre	1000 mm
Type of Bed	Hardened Bed Ways
Swing over Bed	420 mm
Height of Centre	215 mm
Width of Bed	277 mm
Swing over Cross Slide	240 mm
Swing in Gap	620 mm
Length of Gap in Front of Face Plate	125 mm
MAIN SPINDLE
No. of Spindle Speed	8
Spindle Speed Range	40 to 1200 RPM
Taper in Spindle	MT-5
Spindle Bore	38 mm
Spindle Nose	A2-4
THREADS
Lead Screw Diameter / Pitch	31.75 mm / 4 TPI
Nos. of Threads/Range (For Full Norton Gear Box)	Metric: 24 / 0.5 mm to 15 mm Pitch Inch: 44 / 2 to 60 TPI
No. of Feeds	40
Range of Longitudinal Feeds	0.066 - 2 mm
Range of Transverse Feeds	0.0165 - 0.5 mm
TAIL STOCK
Tail Stock Spindle Diameter	50.8 mm
Taper in Tail Stock Quill	MT-4
TRAVEL AND TOOLS
Cross Slide Travel	230 mm
Compound Slide Travel	140 mm
Tail Stock Sleeve Travel	140 mm
Tool Post Square	100 mm
Tool Shank Size	20 mm
Suitable Electrical HP	2 HP (3 phase)

Geared Head Lathe Machine (AGLM 6 Feet 3 Inches)

All-Geared • 65 mm Spindle Bore • 495 mm Swing

SPECIFICATION	AGLM 6' 3" (1900 mm)
BED
Length of Bed	1900 mm (6' 3")
Admit Between Centre	1020 mm
Type of Bed	Hardened Bed Ways
Swing over Bed	495 mm
Height of Centre	255 mm
Width of Bed	277 mm
Swing over Cross Slide	310 mm
Swing in Gap	700 mm
Length of Gap in Front of Face Plate	150 mm
MAIN SPINDLE
No. of Spindle Speed	8
Spindle Speed Range	55 to 1200 RPM*
Taper in Spindle	MT-6
Spindle Bore	65 mm
Spindle Nose	A2-6
THREADS
Lead Screw Diameter / Pitch	31.75 mm / 4 TPI
Nos. of Threads/Range (For Full Norton Gear Box)	Metric: 24 / 0.5 mm to 15 mm Pitch Inch: 44 / 2 to 60 TPI
No. of Feeds	40
Range of Longitudinal Feeds	0.066 - 2 mm
Range of Transverse Feeds	0.0165 - 0.5 mm
TAIL STOCK
Tail Stock Spindle Diameter	50.8 mm
Taper in Tail Stock Quill	MT-4
TRAVEL AND TOOLS
Cross Slide Travel	270 mm
Compound Slide Travel	150 mm
Tail Stock Sleeve Travel	140 mm
Tool Post Square	120 mm
Tool Shank Size	25 mm
Suitable Electrical HP	3 HP (3 phase)

Geared Head Heavy Duty Lathe (Model VGH-267 : Tech Master)

All-Geared • 12 Speeds • 267 mm & 304 mm Centre Heights

SPECIFICATION	267 mm (10-1/2") Centre Height	304 mm (12") Centre Height
BED (Lengths: 7'/2100, 9'/2740, 10'/3040, 12'/3650, 14'/4260 mm)
Length of Bed	7' (2100) / 9' (2740) / 10' (3040) / 12' (3650) / 14' (4260 mm)	7' (2100) / 9' (2740) / 10' (3040) / 12' (3650) / 14' (4260 mm)
Admit Between Centre	1000 / 1600 / 1900 / 2500 / 3100 mm	1000 / 1600 / 1900 / 2500 / 3100 mm
Type of Bed	Hardened Bed Ways	Hardened Bed Ways
Height of Centre	267 mm (10-1/2")	304 mm (12")
Swing over Bed	525 mm	600 mm
Swing over Cross Slide	320 mm	395 mm
Swing in Gap	800 mm	875 mm
Width of Bed	325 mm	325 mm
Length of Gap in Front of Face Plate	200 mm	200 mm
MAIN SPINDLE
No. of Spindle Speed	12	12
Spindle Speed Range	30 to 1060 RPM*	30 to 1060 RPM*
Taper in Spindle	MT-6	MT-6
Spindle Bore	50 mm	79 mm / 104 mm
Spindle Nose	A2-6	A2-8
THREADS
Lead Screw Diameter / Pitch	38 mm / 4 TPI	38 mm / 4 TPI
Nos. of Threads/Range (Without Norton Gear Box)	Metric: 24 / 0.5 mm to 15 mm Pitch Inch: 44 / 2 to 60 TPI	Metric: 24 / 0.5 mm to 15 mm Pitch Inch: 44 / 2 to 60 TPI
No. of Feeds	40	40
Range of Longitudinal Feeds	0.066 - 2 mm	0.066 - 2 mm
Range of Transverse Feeds	0.0165 - 0.5 mm	0.0165 - 0.5 mm
TAIL STOCK
Tail Stock Spindle Diameter	60.3 mm	60.3 mm
Taper in Tail Stock Quill	MT-4	MT-4
TRAVEL AND TOOLS
Cross Slide Travel	280 mm	280 mm
Compound Slide Travel	145 mm	145 mm
Tail Stock Sleeve Travel	170 mm	170 mm
Tool Post Square	120 mm	120 mm
Tool Shank Size	25 mm	25 mm
Suitable Electrical HP	3 HP / 5 HP (3 phase)*	3 HP / 5 HP (3 phase)*

Geared Head Heavy Duty Lathe Machine (AGLM-304)

All-Geared • 304/355/380 mm CH • Up to 730 mm Swing

SPECIFICATION	304 mm (12") Centre Height	355 mm (14") Centre Height	380 mm (15") Centre Height
BED (Lengths: 7'/2100, 9'/2740, 10'/3040, 12'/3650, 14'/4260 mm)
Length of Bed	7' (2100) / 9' (2740) / 10' (3040) / 12' (3650) / 14' (4260 mm)	7' (2100) / 9' (2740) / 10' (3040) / 12' (3650) / 14' (4260 mm)	7' (2100) / 9' (2740) / 10' (3040) / 12' (3650) / 14' (4260 mm)
Admit Between Centre	1000 / 1600 / 1900 / 2500 / 3100 mm	1000 / 1600 / 1900 / 2500 / 3100 mm	1000 / 1600 / 1900 / 2500 / 3100 mm
Type of Bed	Hardened Bed Ways	Hardened Bed Ways	Hardened Bed Ways
Height of Centre	304 mm (12")	355 mm (14")	380 mm (15")
Swing over Bed	580 mm	680 mm	730 mm
Swing over Cross Slide	390 mm	490 mm	540 mm
Swing in Gap	890 mm	990 mm	1040 mm
Width of Bed	375 mm	375 mm	375 mm
Length of Gap in Front of Face Plate	200 mm	200 mm	200 mm
MAIN SPINDLE
No. of Spindle Speed	12	12	12
Spindle Speed Range	30 to 1060 RPM*	30 to 1060 RPM*	30 to 1060 RPM*
Taper in Spindle	MT-6	MT-6	MT-6
Spindle Bore	79 mm / 104 mm	79 mm / 104 mm	79 mm / 104 mm
Spindle Nose	A2-8	A2-8	A2-8
THREADS
Lead Screw Diameter / Pitch	38 mm / 4 TPI	38 mm / 4 TPI	38 mm / 4 TPI
Nos. of Threads/Range (Without Norton Gear Box)	Metric: 24 / 0.5 mm to 15 mm Pitch Inch: 44 / 2 to 60 TPI	Metric: 24 / 0.5 mm to 15 mm Pitch Inch: 44 / 2 to 60 TPI	Metric: 24 / 0.5 mm to 15 mm Pitch Inch: 44 / 2 to 60 TPI
No. of Feeds	40	40	40
Range of Longitudinal Feeds	0.066 - 2 mm	0.066 - 2 mm	0.066 - 2 mm
Range of Transverse Feeds	0.0165 - 0.5 mm	0.0165 - 0.5 mm	0.0165 - 0.5 mm
TAIL STOCK
Tail Stock Spindle Diameter	60.3 mm	60.3 mm	60.3 mm
Taper in Tail Stock Quill	MT-4	MT-4	MT-4
TRAVEL AND TOOLS
Cross Slide Travel	325 mm	325 mm	325 mm
Compound Slide Travel	190 mm	190 mm	190 mm
Tail Stock Sleeve Travel	170 mm	170 mm	170 mm
Tool Post Square	145 mm	145 mm	145 mm
Tool Shank Size	25 mm	25 mm	25 mm
Suitable Electrical HP	5 HP (3 phase)*	5 HP (3 phase)*	5 HP (3 phase)*

Industrial Sectors

Industries & Applications We Serve

Raney Machine Tools' lathes power critical manufacturing, heavy maintenance, and fabrication facilities across Gujarat and worldwide.

Automotive & Components

Transmission shafts, axles, brake drums, steering knuckles, and high-precision turned pins and bushings.

Defence & Ordnance

High-tensile alloy turning, barrel machining, precision threaded connectors, and ordnance equipment components.

Pumps, Valves, Oil & Gas

Impeller shafts, valve bodies, flanges, drill collars, and heavy API pipe threading with large spindle bore lathes.

Sugar & Cement Plants

Crusher roll turning, heavy trunnion shafts, kiln roller resurfacing, and heavy maintenance machining.

Steel & Power Generation

Rolling mill roll turning, turbine rotor shaft maintenance, generator shafts, and heavy structural machining.

Toolrooms & Institutes

Die & mould turning, jig/fixture fabrication, apprentice training institutes (ITI/Polytechnic), and R&D toolrooms.

The Raney Advantage

Why Source Lathe Machines from Raney Machine Tools?

When you purchase a lathe from Raney Machine Tools, you gain direct access to four decades of machine tool engineering expertise, factory-backed guarantees, and end-to-end operational support.

Authorized Distributor: Genuine machines with full OEM manufacturer warranty.
8 In-Stock Types: Immediate availability from light duty to 16' heavy duty.
Application Guidance: Technical engineers help size machine to your workpiece.
Immediate Service Within 48 Hours: Alignment inspection & spare parts supply.
Competitive Pricing: Direct distributor rates with no middlemen markups.
Export Ready: Sea-worthy wooden crating & international documentation.

Raney Machine Tools Showroom & Warehouse in Ahmedabad

Ahmedabad Central Machinery Showroom

1/A, Ramnesh Estate, Opp. Shilp Arcade, Memco-Bapunagar Road, Ahmedabad - 380025

Proven In Production

Lathe Machines

Lathe Technical Highlights

Engineered for Rigidity, Torque, and Repeatable Accuracy

Belt-Driven Economy Range

All-Geared Head Precision

Trusted Industrial Partner

Our 8 Lathe Machine Configurations

1. Belt-Driven Lathe Machines (Economy & Workshop Series)

Light Duty Lathe

Medium Duty Lathe

Heavy Duty Lathe

Extra Heavy Duty Lathe

2. All Geared Head Lathe Machines (High Torque & Precision Series)

Geared Head

Geared Head

Geared Head

Geared Head

Detailed Technical Specifications (All 8 Models)

Light Duty Lathe Machine

Medium Duty Lathe Machine

Heavy Duty Lathe Machine (7 Bed Lengths)

Extra Heavy Duty Lathe Machine (375 mm Bed Width)

Geared Head Medium Duty Lathe - Deluxe (Model VGM-215)

Geared Head Lathe Machine (AGLM 6 Feet 3 Inches)

Geared Head Heavy Duty Lathe (Model VGH-267 : Tech Master)

Geared Head Heavy Duty Lathe Machine (AGLM-304)

Industries & Applications We Serve

Automotive & Components

Defence & Ordnance

Pumps, Valves, Oil & Gas

Sugar & Cement Plants

Steel & Power Generation

Toolrooms & Institutes

Why Source Lathe Machines from Raney Machine Tools?

Ahmedabad Central Machinery Showroom

Trusted by Industry Leaders Across Gujarat & Overseas

Frequently Asked Questions

Request a Commercial Quotation

Visit Showroom / Quick Contact

Related Machinery

Ready to Equip Your Workshop with High-Precision Lathes?
