Bandsaw & Hacksaw Machines
Industrial metal cutting bandsaw and hacksaw machines for workshops and fabrication units. Metal cutting bandsaw, pivot type (manual and semi-automatic), and semi hydraulic hacksaw configurations from 150mm to 600mm cutting capacity.
Heavy Duty Cast Iron Construction
Product Range
In Stock
Cutting Highlights
| Commercial Terms | Direct Distributor Pricing |
| Cutting Capacity (Round) | 150 mm to 600 mm |
| Drive Types | Worm Gearbox / Helical Gear |
| Blade Speeds | 22 to 77 mtr/min |
| Motor Range | 1 HP to 5 HP |
| Configurations | 4 Types · 15+ Models |
Since 1983
Four decades supplying Indian industry
5 Export Countries
Sri Lanka, Bahrain, Oman, UAE, Saudi Arabia
Trusted by L&T, Anchor by Panasonic & more
Enterprise clients across sectors
Precision Cutting for Every Metal Section
Industrial Bandsaw and Hacksaw Machines for Metal Cutting
Raney Machine Tools supplies a complete range of metal cutting bandsaw and hacksaw machines for industrial workshops, fabrication shops, and production facilities. Our bandsaw range covers metal cutting bandsaws (175mm to 600mm round cutting capacity, swing cut on SM 225 to SM 475), pivot type machines in manual and semi-automatic configurations, and semi hydraulic hacksaw machines for compact, cost-effective cutting.
Every bandsaw in our range features worm gearbox or helical gear drive, variable blade speed control, cast iron blade guide units with carbide pads, and heavy-duty construction for vibration-free cutting. Semi-automatic models add hydraulic vice clamping, automatic saw frame return, and PLC control with blade jam detection for unattended operation.
All Sections, All Metals
Cuts round, square, hex, pipes, I-beam, angle, and channel sections in mild steel, stainless steel, tool steel, die steel, and non-ferrous metals. Variable blade speed lets you match cutting parameters to material hardness.
Manual to Semi-Automatic
Choose from manual pivot type machines with hydraulic feed control, semi-automatic models with PLC-controlled cycle (hydraulic vice, auto return, blade jam detection), or the metal cutting bandsaw range for sections up to 600mm round.
Trusted Industrial Partner
Trusted by India's premier engineering corporations and exported to 5 overseas destinations.
Export Destinations
Sri Lanka • Bahrain • Oman • UAE • Saudi Arabia
4 Configurations · 15+ Models
Our 4 Bandsaw & Hacksaw Machine Types
From compact hacksaw machines to large-capacity metal cutting bandsaws, choose the cutting solution for your workshop.
Up to 600 mm
Model: SM 175 to SM 600 (8 Models)
Metal Cutting Bandsaw Machine
Metal cutting bandsaw in 8 sizes, from 175 mm to 600 mm round cutting capacity. SM 175 and SMR 200 run on a helical gear pinion drive; SM 225 to SM 600 on a worm gearbox. Swing cut on SM 225 to SM 475. Coolant pump on every model.
- Cutting Cap. (Round): 175-600 mm
- Cutting Cap. (Square): 150 x 150 to 425 x 425 mm
- Motor: 1 HP to 5 HP
- Blade Speed: 22-75 mtr/min
Manual
Model: SM 708 / 912 / 1316
High-Speed Horizontal Metal Cutting
Pivot type manual bandsaw with hydraulic feed control in 3 sizes. Worm gearbox drive with PB2 bronze worm gear. Front coolant tank, carbide blade guides, auto on-off coolant pump, and double spring tension.
- Cutting Cap. (Round): 175-325 mm
- Blade Speed: 33-52-77 mtr/min
- Motor: 1 HP to 2 HP
- Models: SM 708, SM 912, SM 1316
Semi-Auto
Model: SMSA 708 / 912 / 1316
PLC-Controlled with Hydraulic Vice
Semi-automatic pivot bandsaw with hydraulic vice clamping and declamping, automatic saw frame return, and automatic saw height adjustment. PLC control with blade jam/breakage detection. Separate 1 HP hydraulic motor.
- Cutting Cap. (Round): 175-325 mm
- Blade Speed: 33-52-77 mtr/min
- Saw Motor: 1 HP to 2 HP + Hyd: 1 HP
- Models: SMSA 708, SMSA 912, SMSA 1316
Hacksaw
Model: BSH-7
Compact Hydraulic Hacksaw for Light Cutting
Compact semi-hydraulic hacksaw machine for light to medium cutting applications. 150mm round and 125mm square cutting capacity with 80 strokes per minute. 350mm blade size, 1 HP motor. Cost-effective solution.
- Cutting Cap. (Round): 150 mm
- Cutting Cap. (Square): 125 mm
- Strokes Per Minute: 80
- Motor: 1 HP / 1,440 RPM
Engineering Data Sheets
Detailed Technical Specifications (All 15+ Models)

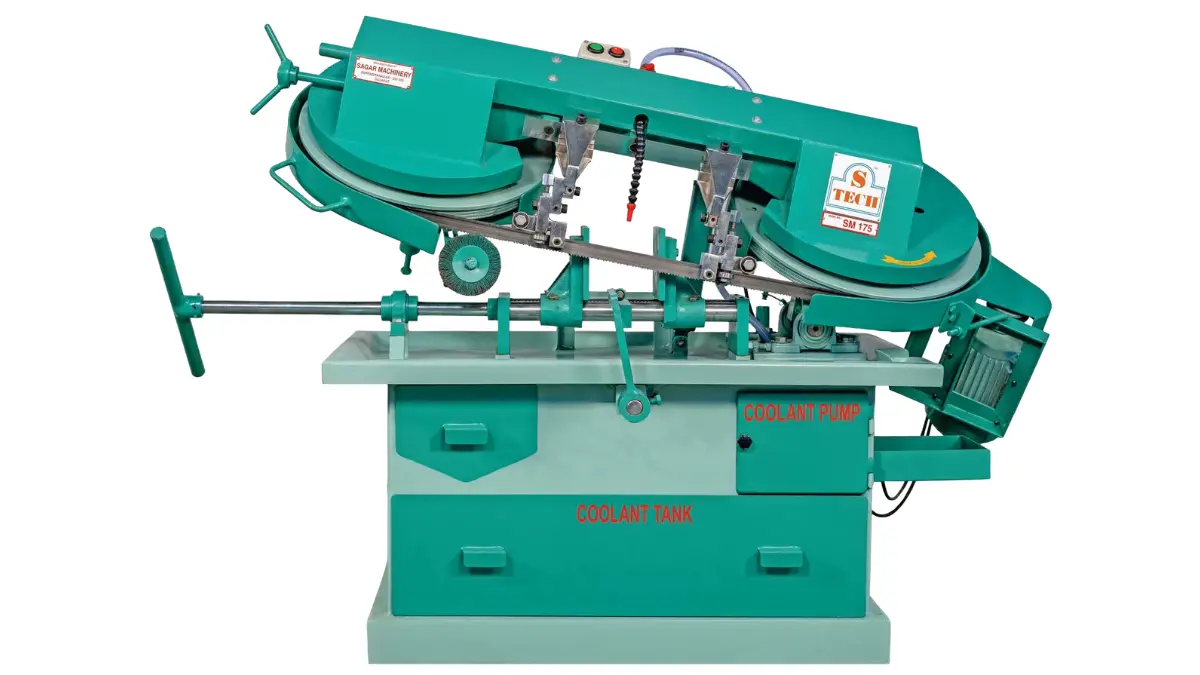

Metal Cutting Bandsaw Machine
8 Models · SM 175 to SM 600Sub-group A: Helical Gear Pinion Drive
| SPECIFICATION | Unit | SM 175 | SMR 200 |
|---|---|---|---|
| Cutting Cap. (Round) | mm | 175 | 200 |
| Cutting Cap. (Square) | mm | 150 x 150 | 150 x 150 |
| Motor | — | 1 HP, 1440 RPM | 1 HP, 1440 RPM |
| Coolant Pump | — | 0.15 HP, 2800 RPM | 0.15 HP, 2800 RPM |
| Drive | — | Helical Gear Pinion | Helical Gear Pinion |
| V-Belt Size | — | A35 | A35 |
| Blade Size | mm | 3000 x 27 x 0.9 | 3000 x 27 x 0.9 |
| Blade Speed | mtr/min | 37-52-70 | 37-52-70 |
| Weight | kg | 300 | 315 |
| Dimensions (L x W x H) | mm | 1700 x 740 x 1070 | 1700 x 740 x 1070 |
Sub-group B: Worm Gearbox Drive (Mid-size)
| SPECIFICATION | Unit | SM 225 | SM 275 | SM 325 |
|---|---|---|---|---|
| Cutting Cap. (Round) | mm | 225 | 275 | 325 |
| Cutting Cap. (Square) | mm | 175 x 175 | 200 x 200 | 250 x 250 |
| Motor | — | 1 HP, 1440 RPM | 1.5 HP, 1440 RPM | 2 HP, 960 RPM |
| Coolant Pump | — | 0.15 HP, 2800 RPM | 0.15 HP, 2800 RPM | 0.15 HP, 2800 RPM |
| Drive | — | Worm Gearbox | Worm Gearbox | Worm Gearbox |
| V-Belt Size | — | A45 | A46 | A47 |
| Blade Size | mm | 3000 x 27 x 0.9 | 3505 x 27 x 0.9 | 3760 x 27 x 0.9 |
| Blade Speed | mtr/min | 22-37-55-75 (all) | ||
| Swing Cut | — | Yes | Yes | Yes |
| Weight | kg | 375 | 400 | 460 |
| Dimensions (L x W x H) | mm | 2040 x 760 x 1070 | 2100 x 850 x 1150 | 2500 x 850 x 1200 |
Sub-group C: Worm Gearbox Drive (Heavy Duty)
| SPECIFICATION | Unit | SM 400 | SM 475 | SM 600 |
|---|---|---|---|---|
| Cutting Cap. (Round) | mm | 400 | 475 | 600 |
| Cutting Cap. (Square) | mm | 350 x 350 | 375 x 375 | 425 x 425 |
| Motor | — | 2 HP, 960 RPM | 2 HP, 960 RPM | 5 HP, 960 RPM |
| Coolant Pump | — | 0.15 HP, 2800 RPM | 0.15 HP, 2800 RPM | 0.25 HP, 2800 RPM |
| Drive | — | Worm Gearbox (all) | ||
| V-Belt Size | — | A53 | A53 | B68 |
| Blade Size | mm | 4420 x 34 x 1.1 | 4570 x 34 x 1.1 | 5800 x 41 x 1.3 |
| Blade Speed | mtr/min | 22-37-55-75 (all) | ||
| Swing Cut | — | Yes | Yes | No |
| Weight | kg | 650 | 700 | 1400 |
| Dimensions (L x W x H) | mm | 2750 x 920 x 1220 | 2750 x 920 x 1220 | 3650 x 1070 x 1370 |

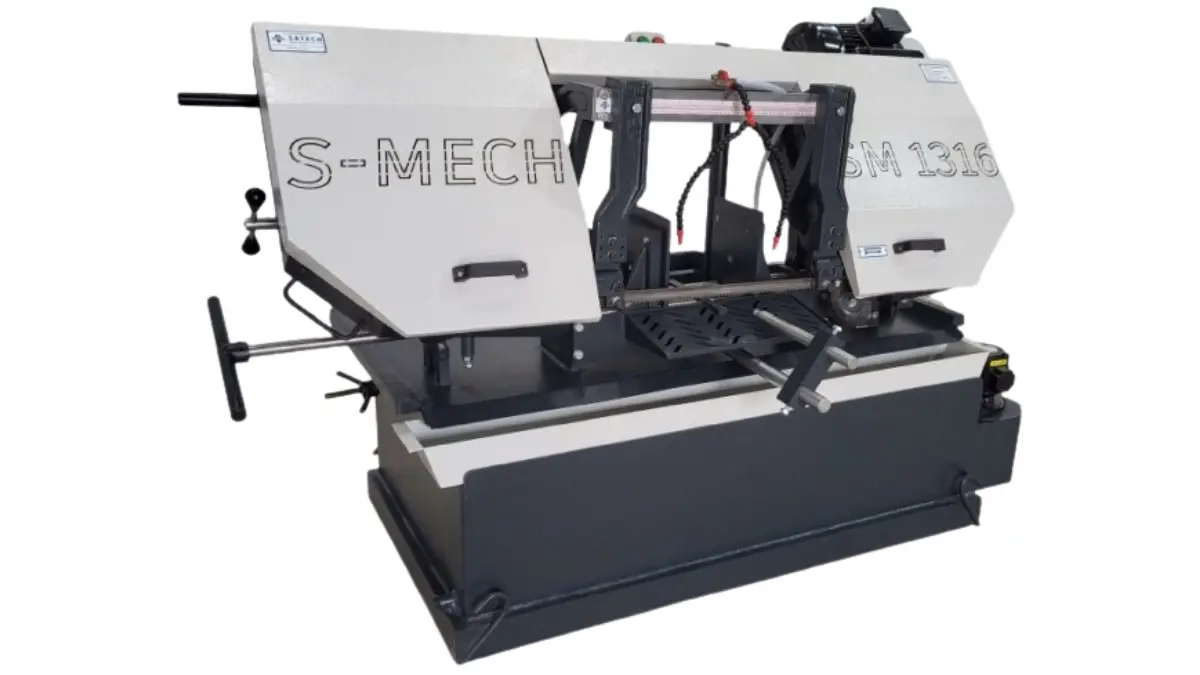

Pivot Type Manual Bandsaw Machine
3 Models · SM 708 / 912 / 1316| SPECIFICATION | Unit | SM 708 | SM 912 | SM 1316 |
|---|---|---|---|---|
| Cutting Capacity (Round) | mm | dia. 175 | dia. 225 | dia. 325 |
| Cutting Capacity (Flat) | mm | 200 x 100 | 300 x 150 | 400 x 200 |
| Saw Motor | — | 1 HP, 1440 RPM | 1 HP, 1440 RPM | 2 HP, 960 RPM |
| Coolant Pump | — | 0.15 HP, 2800 RPM (all) | ||
| Drive | — | Worm Gearbox (all) | ||
| Blade Size | mm | 2540 x 27 x 0.9 | 3000 x 27 x 0.9 | 3760 x 27 x 0.9 |
| Blade Speed | mtr/min | 33-52-77 (all) | ||
| Weight (Approx.) | kg | 330 | 360 | 540 |
| Dimension (L x W x H) | mm | 1420 x 980 x 1030 | 1560 x 920 x 1070 | 1900 x 1060 x 1280 |
Standard Features
- Powder coated machine body and parts
- PB2 bronze worm gear and hardened alloy steel worm shaft
- Variable blade speed control
- Front coolant tank with chip collection tray
- Swarf cleaning brush with adjustable plate
- Chrome plated job-stopper and vice components
- Cast iron heavy duty blade guide unit with carbide pads & ball bearings
- Taper roller bearings for driven wheel
- Auto on-off coolant pump; auto saw off at end of cut
- Double spring tension to adjust saw arm weight
Cuts Everything
Metals: non-ferrous, steel, stainless steel, tool steel, die steel
Sections: round, square, hex, pipes, I-beam, angle, channel
Optional Accessories
- Material roller stand
- Bi-metal HSS bandsaw blade
- Manual bar feeding mechanism with worm gear
- Degree cutting fixture
- Foot-pedal lifting attachment

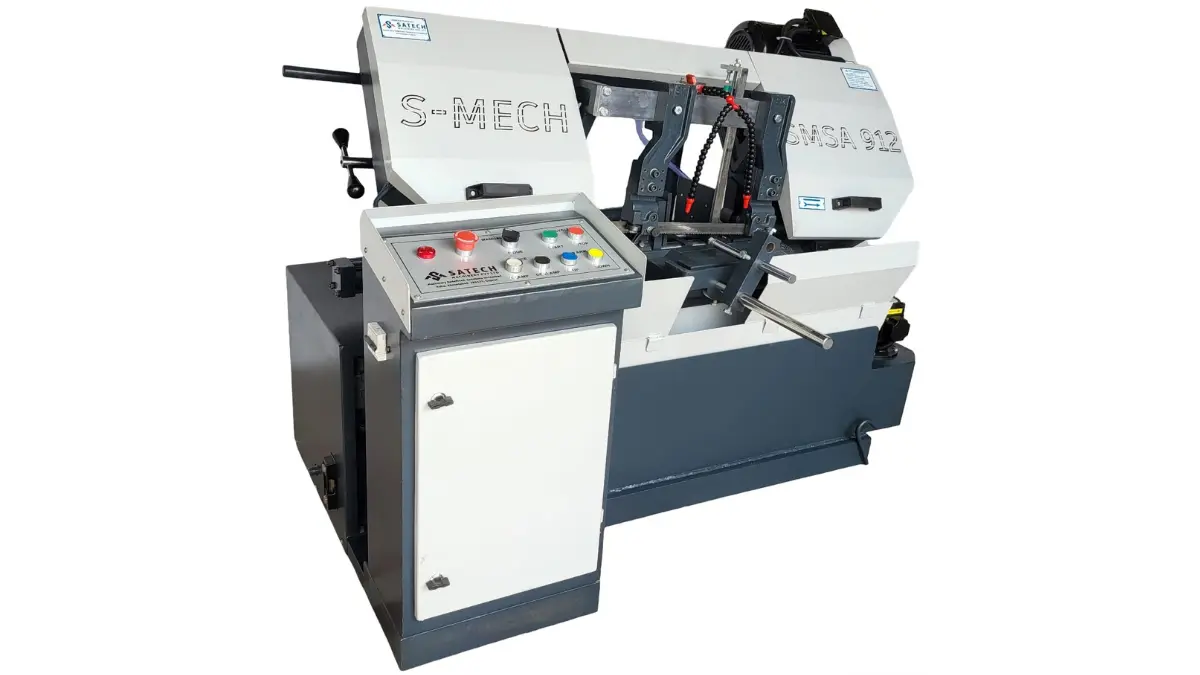

Pivot Type Semi Automatic Bandsaw Machine
3 Models · SMSA 708 / 912 / 1316| SPECIFICATION | Unit | SMSA 708 | SMSA 912 | SMSA 1316 |
|---|---|---|---|---|
| Cutting Capacity (Round) | mm | dia. 175 | dia. 225 | dia. 325 |
| Cutting Capacity (Flat) | mm | 200 x 100 | 300 x 150 | 400 x 200 |
| Saw Motor | — | 1 HP, 1440 RPM | 1.5 HP, 1440 RPM | 2 HP, 960 RPM |
| Hydraulic Motor | — | 1 HP, 1440 RPM (all) | ||
| Coolant Pump | — | 0.15 HP, 2800 RPM (all) | ||
| Drive | — | Worm Gearbox (all) | ||
| Blade Size | mm | 2540 x 27 x 0.9 | 3000 x 27 x 0.9 | 3760 x 27 x 0.9 |
| Blade Speed | mtr/min | 33-52-77 (all) | ||
| Weight (Approx.) | kg | 330 | 360 | 540 |
| Dimension (L x W x H) | mm | 1400 x 1010 x 1030 | 1530 x 980 x 1070 | 1900 x 1100 x 1280 |
Semi-Automatic Features
- Hydraulic operated automated vice clamping and declamping
- Automatic saw frame return after completion of cut
- Automatic saw height adjustment according to workpiece
- Rapid blade approach till workpiece height; rapid saw return reduces cycle time
- Solenoid actuated direction control valve and precise saw feed control valve
- PLC control with industrial-grade electrical components
- Blade jam / breakage detection
Optional Accessories
- Material roller stand
- Bi-metal HSS bandsaw blade
- Degree cutting fixture

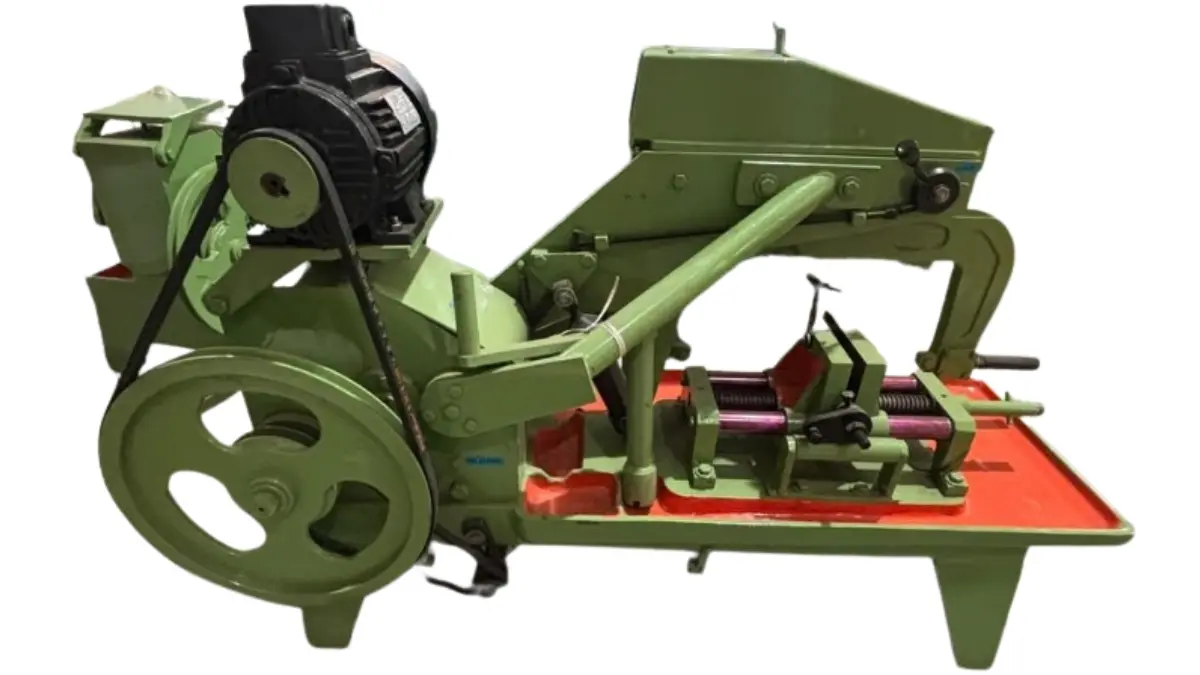

Semi Hydraulic Hack Saw Machine
Model · BSH-7| SPECIFICATION | Unit | BSH-7 |
|---|---|---|
| Cutting Capacity (Round) | mm | 150 |
| Cutting Capacity (Square) | mm | 125 |
| No. of Strokes Per Minute | — | 80 |
| Blade Size | mm | 350 |
| Motor | — | 1 HP / 1,440 RPM |
| Weight (Approx.) | kg | 150 |
Compact semi-hydraulic hacksaw for light to medium cutting applications. Cost-effective solution for workshops with moderate cutting requirements.
Industrial Sectors
Industries & Applications We Serve
Raney Machine Tools' workshop machinery supplies critical manufacturing, heavy maintenance, and fabrication facilities across Gujarat and worldwide.
Automotive & Components
Transmission housings, brake and steering assemblies, precision fasteners, and high-volume component production.
Defence & Ordnance
High-tensile alloy machining, ordnance component fabrication, and precision assemblies for defence contractors.
Pumps, Valves, Oil & Gas
Pump housings, valve bodies, flanges, threaded connectors, and heavy pipe fabrication for oilfield equipment.
Sugar & Cement Plants
Crusher and kiln roller maintenance, heavy trunnion assemblies, and general plant-floor machining.
Steel & Power Generation
Rolling-mill maintenance, turbine and generator shaft servicing, and heavy structural fabrication.
Toolrooms & Institutes
Die & mould shops, jig/fixture fabrication, ITI/Polytechnic training institutes, and R&D toolrooms.
The Raney Advantage
Why Source Bandsaw & Hacksaw Machines from Raney Machine Tools?
When you purchase bandsaw & hacksaw machines from Raney Machine Tools, you gain direct access to four decades of machine-tool engineering expertise, factory-backed guarantees, and end-to-end operational support.
Ahmedabad Central Machinery Showroom
1/A, Ramnesh Estate, Opp. Shilp Arcade, Memco-Bapunagar Road, Ahmedabad - 380025
Proven In Production
Trusted by Industry Leaders Across Gujarat & Overseas
Common Questions
Frequently Asked Questions
Get answers on bandsaw types, cutting capacities, how the bandsaw ranges differ, and blade selection.
We supply three types of bandsaw machines: metal cutting bandsaws (175mm to 600mm round cutting capacity), pivot type manual bandsaws, and pivot type semi-automatic bandsaws. We also supply a semi hydraulic hacksaw machine. Four configurations in total, covering light cutting to heavy-section fabrication work.
The metal cutting bandsaw (SM 175 to SM 600) covers 175mm to 600mm round and up to 425 x 425mm square, and SM 225 to SM 475 can also make swing (angle) cuts. The pivot type bandsaws (SM 708, SM 912, SM 1316 and the SMSA semi-automatic versions) cover 175mm to 325mm round; the manual models have hydraulic feed control, and the semi-automatic models add a hydraulic vice and PLC control for repeat cutting. Choose the metal cutting bandsaw for larger sections; a pivot type for smaller sections and repeat work.
Bandsaws use a continuous loop blade and cut faster with less material waste (thinner kerf). Hacksaw machines use a reciprocating blade and are simpler and less expensive. For occasional cutting of smaller sections, a hacksaw machine is economical. For daily production cutting, especially of larger sections, a bandsaw is faster and more cost-effective per cut.
The metal cutting bandsaw range goes up to 600mm round bar and 425 x 425mm square (SM 600). Pivot type machines handle up to 325mm round. The exact capacity depends on the model. Contact us with your typical section sizes and material type for a recommendation.
On our semi-automatic pivot bandsaws (SMSA 708, SMSA 912 and SMSA 1316), a hydraulic vice clamps and unclamps the job, the blade approaches rapidly to the workpiece height, and the saw frame returns automatically when the cut is complete. A PLC controls the cycle and detects a jammed or broken blade. The operator loads the bar and starts the cycle, then can attend to other work. On the manual pivot models, the operator clamps the job and sets the hydraulic feed, and the saw switches off at the end of the cut.
Blade speeds range from 22 to 77 metres per minute across the range. Lower speeds suit harder materials (stainless steel, alloy steel), and higher speeds suit softer materials (mild steel, aluminium). Models with variable speed let you match the blade speed to the material for best blade life and cut quality.
Blade life depends on the material being cut, blade speed, feed pressure, and coolant use. A well-maintained blade cutting mild steel typically lasts several hundred cuts. Replacement bi-metal bandsaw blades in standard loop lengths are available through our parts supply. We can advise on the correct blade pitch and type for your application.
