Precision Milling, Shaping, and Slotting for Every Application
Industrial Milling and Shaping Machines for Tool Rooms and Production
Raney Machine Tools supplies a complete range of milling, shaping, and slotting machines for tool rooms, job shops, and production workshops. Our universal milling machines handle face milling, slot cutting, gear cutting, and complex profiling across 6 sizes from 7" to 12" face. Vertical turret milling machines offer 16-speed spindle with R8/NT30 taper for precise boring, drilling, and milling on a single setup. For dedicated keyway cutting, our semi-automatic and PLC-controlled automatic keyway milling machines achieve P9 tolerance on shaft keyways.
Our shaping machines are available in 6 sizes from 12" to 40" stroke for flat surfaces, shoulders, and external profiles. For internal keyways, slots, and profiles, slotting machines cover 5 sizes from 178mm to 305mm stroke. Every machine is built on high-grade cast iron with hardened steel components, genuine bearings, and precision-ground surfaces for rigidity, accuracy, and long service life.
6 Machine Types, One Page
Universal milling with ±45° table swivel. Vertical turret mills with 16 speeds and head tilt. Keyway mills with P9 tolerance. Shaping machines with swivelling vice. Slotting machines for internal profiles.
P9 Tolerance on Keyway Machines
Semi-automatic and PLC-controlled automatic keyway milling machines achieve P9 tolerance on shaft keyways with automatic depth control. Operable by semi-skilled operators with no additional accessories required.
Trusted Industrial Partner
Trusted by India's premier engineering corporations and exported to 5 overseas destinations.
Export Destinations
Sri Lanka • Bahrain • Oman • UAE • Saudi Arabia
6 Machine Types · 30+ Models
Our 6 Milling & Shaping Machine Types
From universal milling for general workshop use to specialized keyway, shaping, and slotting machines, choose the right configuration.
7" to 12"

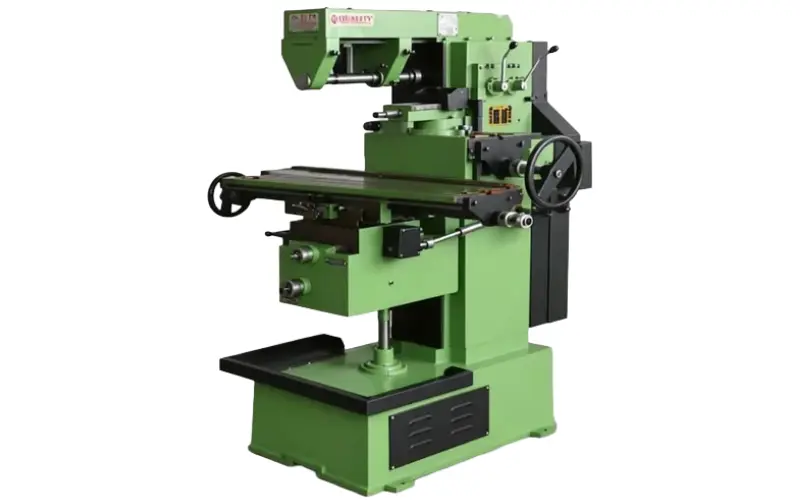

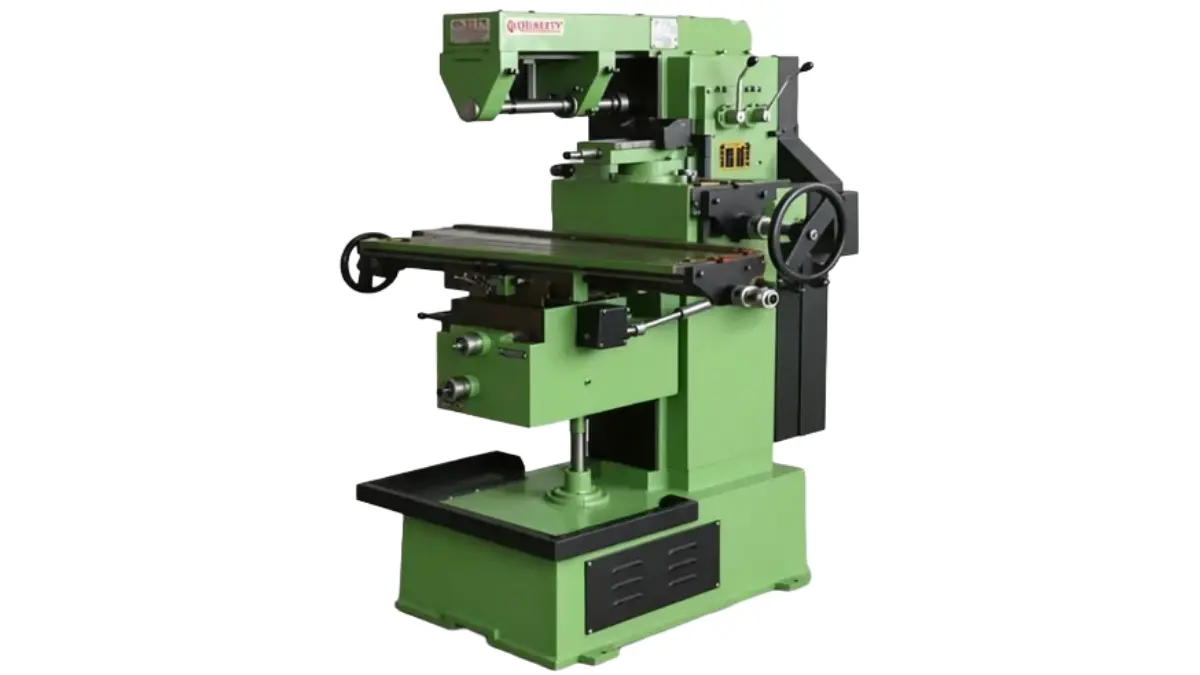

Model: Universal Milling Machine
Heavy Duty Universal & Vertical Type
Universal milling machines in 6 sizes from 7" to 12" face. High-grade cast iron with quality steel spindle and gears. 6 to 9 spindle speeds, ISO 30/40 taper, ±45° table swivel. Face milling, slot cutting, gear cutting, and profiling.
- Table: 762x177 to 1,474x305 mm
- Spindle Taper: ISO 30 / ISO 40
- Speeds: 6 to 9
- Motor: 1.5 HP to 3 HP
Turret

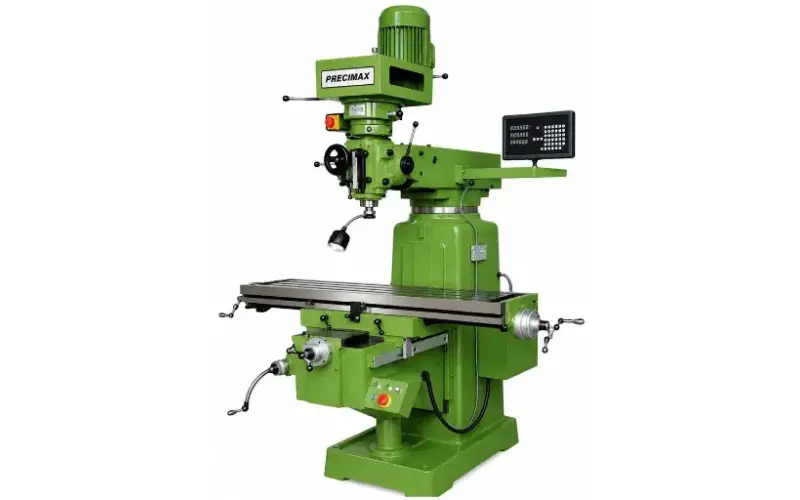

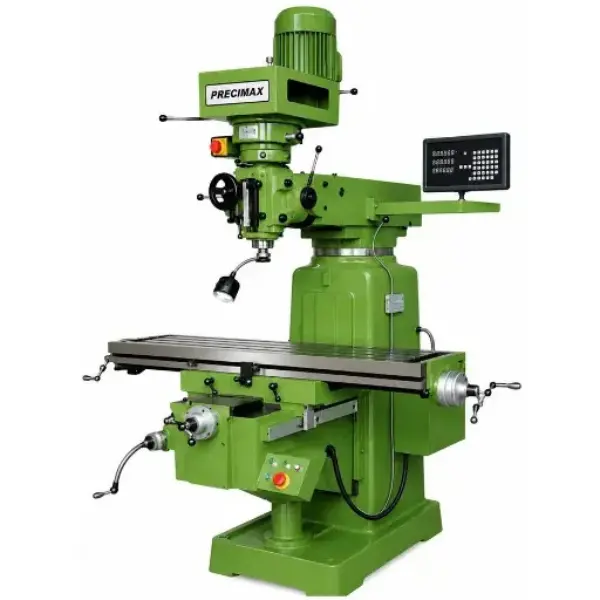

Model: Vertical Turret Milling Machine
16-Speed with R8 / NT30 Taper
Vertical turret milling in two table sizes: M3 (10"x50") and M4S (10"x54"). 16 spindle speeds from 70 to 4,620 RPM. 127mm quill travel, head tilt 45° F/B and 90° L/R. 3 HP motor, 1,200 kg net weight.
- Table: 254x1,270 / 254x1,370 mm
- Spindle Taper: R8 or NT30
- Speeds: 16 (70 to 4,620 RPM)
- Motor: 3 HP
Semi-Auto

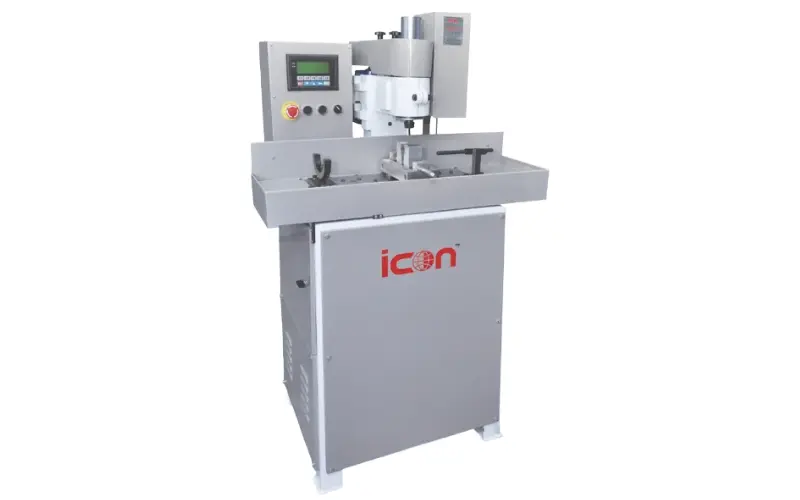

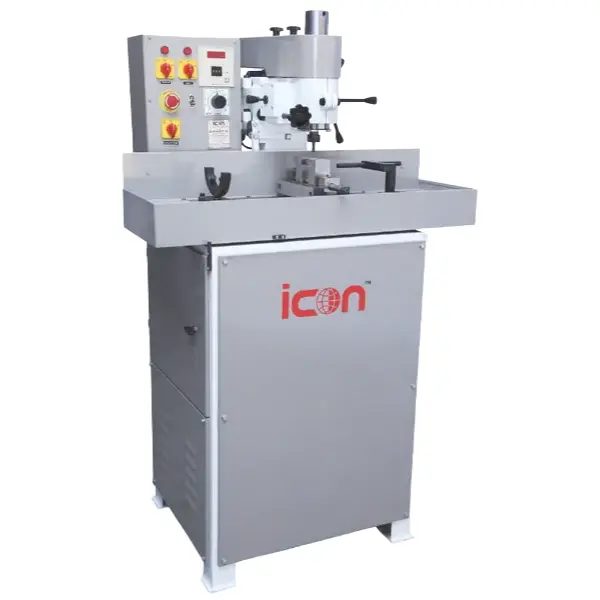

Model: Semi Automatic Keyway Milling
P9 Tolerance Shaft Keyway Cutting
Semi-automatic keyway milling for shafts. Automatic feed at 0.1mm depth per stroke. Auto-stop with buzzer at final depth. P9 tolerance achievable. Self-centering vice. Available I-150 (up to 150mm) and I-200 (up to 200mm).
- Shaft Clamping: 12 to 100 mm
- Keyway Length: Up to 200 mm
- Keyway Size: 3 to 16 mm
- Motor: 1 HP to 1.5 HP
PLC Auto

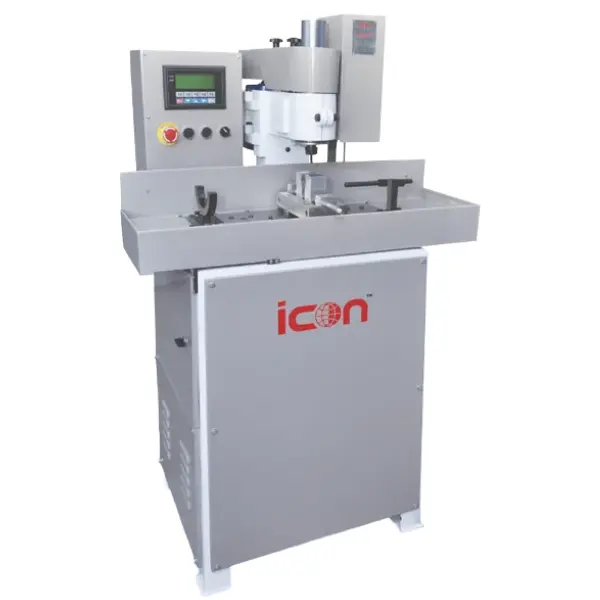

Model: Automatic Keyway Milling
PLC-Based with Servo Motor Feed
PLC-based automatic keyway milling with servo motor feed. Programmable depth of cut per stroke. Auto-stop with buzzer, spindle returns to home position automatically. P9 tolerance achievable. IA-150 / IA-200.
- Shaft Clamping: 12 to 100 mm
- Keyway Length: Up to 200 mm
- Keyway Size: 3 to 16 mm
- Motor: 1.6 HP to 2.1 HP
12" to 40"

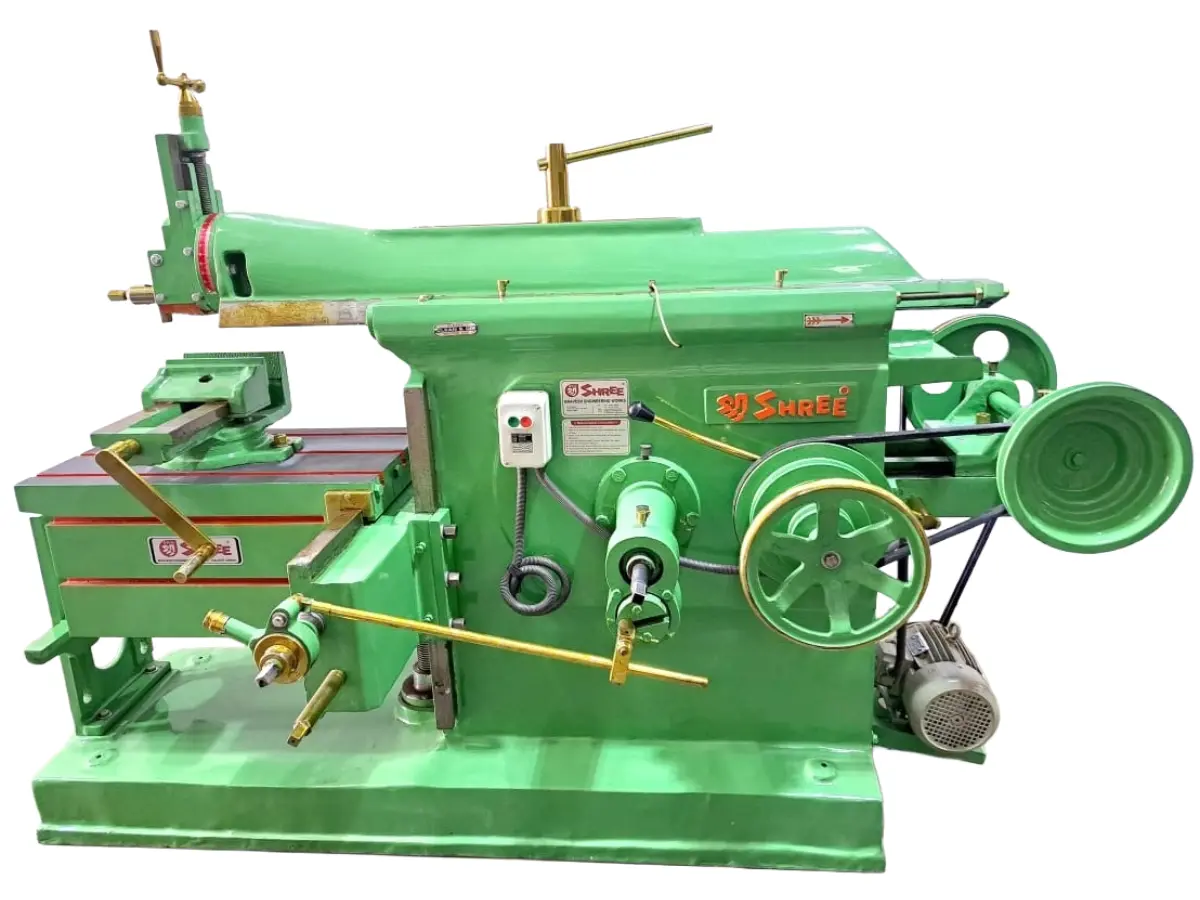

Model: Shaping Machine
Heavy Duty with Swivelling Vice
Shaping machines in 6 sizes from 12" to 40" stroke. Max stroke 14" to 42". Ram bearing 20" to 45". 3 to 4 speed steps with table sizes from 14"x11" to 40"x20.5". Standard accessories include swivelling vice, crank handle, motor pulley and base.
- Max Stroke: 14" to 42"
- Table: 14"x11" to 40"x20.5"
- Speed Steps: 3 to 4
- Motor: 2 HP to 5 HP
178-305 mm

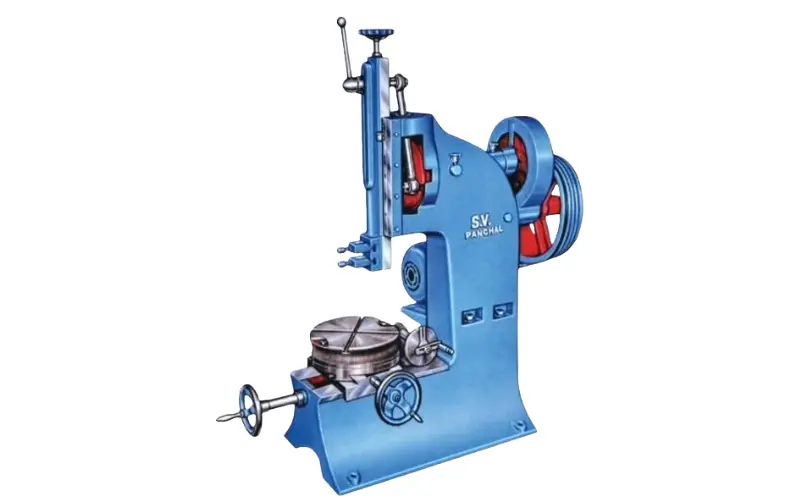

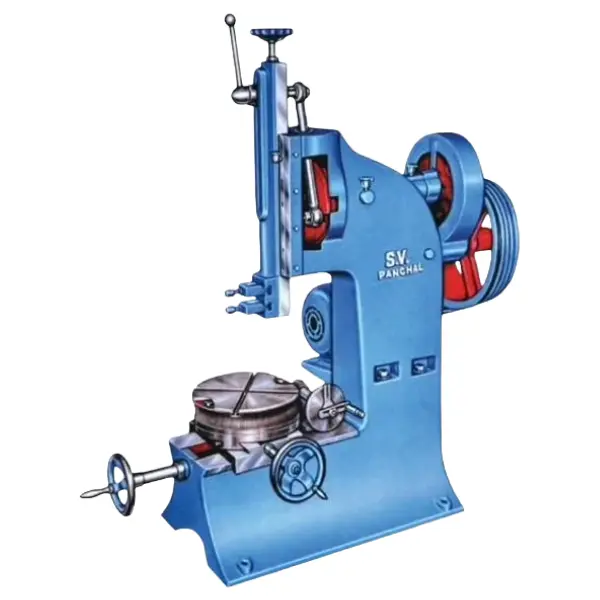

Model: Slotting Machine
Internal Keyways and Slot Cutting
Slotting machines in 5 sizes from 178mm (7") to 305mm (12") stroke. Max diameter 584 to 915mm. Rotary table 305 to 508mm with longitudinal traverse 254 to 331mm. 2 to 3 speed steps, ram cycles 20 to 96 per min.
- Stroke: 178 to 305 mm
- Max Dia. Accommodated: 584 to 915 mm
- Table Diameter: 305 to 508 mm
- Motor: 2 HP to 5 HP
Engineering Data Sheets
Detailed Technical Specifications (All 30+ Models)
Universal Milling Machine (QMT Series)
6 Models · QMT 7 to QMT 12| SPECIFICATION | Unit | QMT 7 | QMT 8 | QMT 9 | QMT 10 | QMT 11 | QMT 12 |
|---|---|---|---|---|---|---|---|
| Face of Body | inches | 7 | 8 | 9 | 10 | 11 | 12 |
| Table | |||||||
| Table Size | mm | 762x177 | 915x203 | 1067x228 | 1220x254 | 1320x280 | 1474x305 |
| No. of T-Slots | — | 3 | 3 | 3 | 3 | 3 | 3 |
| Size of T-Slots | mm | 12 | 12 | 12 | 12 | 16 | 16 |
| Swivel of Table | deg | ±45 | ±45 | ±45 | ±45 | ±45 | ±45 |
| Feed Travel | |||||||
| Cross Travel | mm | 150 | 180 | 203 | 228 | 254 | 305 |
| Vertical Travel | mm | 330 | 380 | 405 | 430 | 550 | 610 |
| Longitudinal Travel | mm | 380 | 460 | 510 | 610 | 660 | 735 |
| Spindle | |||||||
| Arbour Size | mm | 25.4 | 25.4 | 25.4 | 25.4 | 25.4 | 25.4 |
| Taper of Spindle | — | ISO 30 | ISO 30 | ISO 40 | ISO 40 | ISO 40 | ISO 40 |
| Diameter of Spindle | mm | 50 | 60 | 65 | 70 | 80 | 90 |
| No. of Spindle Speeds | — | 6 | 6 | 6 | 9 | 9 | 9 |
| No. of X-Axis Speeds | — | 2 | 2 | 3 | 3 | 3 | 3 |
| Motor & Weight | |||||||
| Motor | HP | 1.5 | 1.5 | 2 | 2 | 3 | 3 |
| Coolant Tank | — | N/A | In-built | In-built | In-built | In-built | In-built |
| Weight (Approx.) | kg | 400 | 630 | 920 | 1,300 | 1,800 | 2,250 |
Extra Accessories: Dividing head · rotary table · coolant pump · rack cutting attachment · vertical attachment and milling vice · slotting attachment · hobbing attachment · separate coolant pump with tank · electric motor with control panel.
Vertical Turret Type Milling Machine
2 Models · M3 & M4S| SPECIFICATION | Unit | M3 | M4S |
|---|---|---|---|
| Table | |||
| Table Size | mm | 254 x 1,270 (10"x50") | 254 x 1,370 (10"x54") |
| Maximum Load on Table | kg | 300 | 300 |
| T-Slot (No. x Width) | mm | 3 x 16 | 3 x 16 |
| T-Slot Pitch | mm | 63 | 63 |
| Travel | |||
| Longitudinal Travel (X) | mm | 760 | 860 |
| Vertical Travel (Y) | mm | 435 | 435 |
| Cross Travel (Z) | mm | 405 | 405 |
| Spindle | |||
| Spindle Taper | — | R8 or NT30 | R8 or NT30 |
| Quill Travel | mm | 127 | 127 |
| Spindle Nose to Table | mm | 45 to 465 | 45 to 465 |
| Head Tilt (Forward/Back) | deg | 45 | 45 |
| Head Tilt (Left/Right) | deg | 90 | 90 |
| Speed Steps | — | 16 | 16 |
| Low Speed Range | RPM | 70, 100, 180, 270, 600, 975, 1540, 2310 | 70, 100, 180, 270, 600, 975, 1540, 2310 |
| High Speed Range | RPM | 140, 220, 360, 540, 1200, 1950, 3080, 4620 | 140, 220, 360, 540, 1200, 1950, 3080, 4620 |
| Quill Feed | mm/rev | 0.04, 0.08, 0.15 | 0.04, 0.08, 0.15 |
| Motor & Weight | |||
| Motor Power | HP | 3 | 3 |
| Voltage / Frequency | — | 380V / 50Hz | 380V / 50Hz |
| Overall Dimensions (LxWxH) | mm | 1500 x 1680 x 2100 | 1500 x 1680 x 2100 |
| Net Weight | kg | 1,200 | 1,200 |
Semi Automatic Keyway Milling Machine
2 Models · I-150 & I-200| SPECIFICATION | Unit | I-150 | I-200 |
|---|---|---|---|
| Spindle RPM | RPM | 2,800 | 0 to 3,700 |
| Shaft Clamping Diameter | mm | 12 to 70 | 12 to 100 |
| Length of Keyway | mm | 5 to 150 | 5 to 200 |
| Keyway Size | mm | 3 to 13 | 3 to 16 |
| Standard Collet | — | ER-20 | ER-25 |
| Power Required | HP / KW | 1 / 0.75 | 1.5 / 1.12 |
Working Principle
Shaft is clamped with self-centering vice. Feed is automatic with 0.1mm depth of cut per stroke. At desired final depth, machine stops automatically with buzzer sound. Achieves P9 tolerance for shaft keyways.
Features
- P9 tolerance achievable
- Automatic depth control
- Automatic operation for 100% output
- Operable by semi-skilled operator
- Extended tooling life
- No additional accessories required
- Rugged construction
Automatic Keyway Milling Machine (PLC)
2 Models · IA-150 & IA-200| SPECIFICATION | Unit | IA-150 | IA-200 |
|---|---|---|---|
| Spindle RPM | RPM | 2,800 | 0 to 3,700 |
| Shaft Clamping Diameter | mm | 12 to 70 | 12 to 100 |
| Length of Keyway | mm | 5 to 150 | 5 to 200 |
| Keyway Size | mm | 3 to 13 | 3 to 16 |
| Standard Collet | — | ER-20 | ER-25 |
| Power Required | HP / KW | 1.6 / 1.194 | 2.1 / 1.567 |
Working Principle
PLC-based machine with servo motor feed. Depth of cut is programmable per stroke. At final depth, machine stops automatically with buzzer and spindle returns to home position. P9 tolerance achievable.
Features
- PLC-controlled with servo motor feed
- Programmable depth of cut per stroke
- Auto spindle home return
- P9 tolerance achievable
- Automatic operation for 100% output
- Extended tooling life
- Rugged construction
Shaping Machine
6 Models · 12" to 40" Stroke| SPECIFICATION | Unit | 12" | 16" | 18" | 24" | 30" | 40" |
|---|---|---|---|---|---|---|---|
| Max. Stroke | inches | 14 | 18 | 20 | 26 | 32 | 42 |
| Ram Bearing in Column | inches | 20 | 22 | 24 | 30 | 36 | 45 |
| Tool Slide Traverse | inches | 5 | 5 | 5 | 7 | 9 | 11 |
| Horizontal Table Traverse | inches | 16 | 16 | 18 | 24 | 30 | 36 |
| Speed Steps | — | 3 | 3 | 3 | 4 | 4 | 4 |
| Table Size (L x W) | inches | 14 x 11 | 16 x 12.5 | 20 x 12.5 | 24 x 14 | 30 x 16 | 40 x 20.5 |
| Motor | HP | 2 | 2 | 2 | 3 | 3 | 5 |
| Weight (Approx.) | kg | 1,100 | 1,200 | 1,300 | 2,000 | 2,700 | 3,500 |
Standard Accessories
- Swivelling vice
- Crank handle
- Motor pulley
- Motor base
Extra Accessories
- Keyway cutting attachment
- Automatic tool lifting mechanism
- Stroke indicator
Slotting Machine
5 Models · 178 to 305 mm| SPECIFICATION | Unit | 178 / 7" | 203 / 8" | 228 / 9" | 254 / 10" | 305 / 12" |
|---|---|---|---|---|---|---|
| Stroke | mm | 178 | 203 | 228 | 254 | 305 |
| Max Dia. Accommodated | mm | 584 | 610 | 762 | 762 | 915 |
| Table Diameter | mm | 305 | 355 | 406 | 406 | 508 |
| Longitudinal Traverse | mm | 254 | 254 | 305 | 305 | 331 |
| Speed Steps | — | 2 | 3 | 3 | 3 | 3 |
| Ram Cycles Per Min | — | 34-96 | 20-42-80 | 20-42-80 | 20-42-80 | 20-42-80 |
| Weight (Approx.) | kg | 430 | 750 | 1,050 | 1,200 | 1,750 |
Industrial Sectors
Industries & Applications We Serve
Raney Machine Tools' workshop machinery supplies critical manufacturing, heavy maintenance, and fabrication facilities across Gujarat and worldwide.
Automotive & Components
Transmission housings, brake and steering assemblies, precision fasteners, and high-volume component production.
Defence & Ordnance
High-tensile alloy machining, ordnance component fabrication, and precision assemblies for defence contractors.
Pumps, Valves, Oil & Gas
Pump housings, valve bodies, flanges, threaded connectors, and heavy pipe fabrication for oilfield equipment.
Sugar & Cement Plants
Crusher and kiln roller maintenance, heavy trunnion assemblies, and general plant-floor machining.
Steel & Power Generation
Rolling-mill maintenance, turbine and generator shaft servicing, and heavy structural fabrication.
Toolrooms & Institutes
Die & mould shops, jig/fixture fabrication, ITI/Polytechnic training institutes, and R&D toolrooms.
The Raney Advantage
Why Source Milling & Shaping Machines from Raney Machine Tools?
When you purchase milling & shaping machines from Raney Machine Tools, you gain direct access to four decades of machine-tool engineering expertise, factory-backed guarantees, and end-to-end operational support.
Ahmedabad Central Machinery Showroom
1/A, Ramnesh Estate, Opp. Shilp Arcade, Memco-Bapunagar Road, Ahmedabad - 380025
Proven In Production
Trusted by Industry Leaders Across Gujarat & Overseas
Common Questions
Frequently Asked Questions
Get answers on milling machine types, keyway attachments, shaping stroke lengths, and slotter selection.
We supply four types: universal milling machines (6 models, QMT 7 to QMT 12), vertical turret milling machines (M3 and M4S models), semi-automatic keyway milling machines (I-150 and I-200), and automatic keyway milling machines (IA-150 and IA-200). Table sizes range from 762x177mm (QMT 7) to 1,474x305mm (QMT 12).
A universal milling machine has a horizontal spindle with an optional vertical head attachment, and its table can swivel for helical milling. It handles slab milling, slot cutting, gear cutting, and angular work. A vertical turret milling machine has a vertical spindle head that tilts and swivels, making it better suited for face milling, drilling, boring, and die work where the cutter approaches from above.
Keyway milling machines cut keyways on shafts, such as the key slots on motor, pump and gearbox shafts. The shaft is clamped in a self-centring vice, and the machine feeds automatically and stops at the final depth, achieving P9 tolerance. The semi-automatic models (I-150 and I-200) cut keyways up to 150mm or 200mm long on shafts from 12mm to 100mm. The automatic models (IA-150 and IA-200) add PLC control with servo feed and complete the full keyway cycle without operator intervention, increasing output for production runs. For internal keyways inside bores, use a slotting machine.
We supply shaping machines in 6 stroke lengths from 12 inches (300mm) to 40 inches (1,000mm), and slotting machines in 5 stroke sizes from 178mm to 305mm. Shaping machines produce flat surfaces, grooves, shoulders, and angular cuts on smaller workpieces. Slotting machines cut internal keyways, splines, and slots in vertical orientation.
Shaping machines are economical for one-off and small-batch work on flat surfaces, grooves, and shoulders where setting up a milling machine would take longer than the cut itself. They require simpler, less expensive single-point tooling. For production volumes or complex profiles, milling machines are faster and more versatile.
Table travel varies by model. The smallest model (QMT 7) offers 380mm longitudinal, 150mm cross, and 330mm vertical travel. The largest (QMT 12) provides 735mm longitudinal, 305mm cross, and 610mm vertical travel. All models feature hardened and ground table surfaces with T-slots for workholding.
Yes. Slotting machines use a reciprocating single-point tool that can cut internal keyways, splines, and contoured slots that would be difficult or impossible on other machines. The rotary table option allows indexing for equally spaced internal features like splines.
