Grinding Machines
Precision surface grinding and cylindrical grinding machines for tool rooms, die shops, and production workshops. Manual, servo drive, and hydraulic configurations with table sizes from 175x350mm to 500x1000mm, plus cylindrical grinders up to 1500mm grinding length.
0.010 mm Precision Standard
Product Range
In StockGrinding Highlights
| Commercial Terms | Direct Distributor Pricing |
| Table Sizes (Surface) | 175x350 to 500x1000 mm |
| Cylindrical Grinding Length | 300 to 1,500 mm |
| Spindle Speed | 1,400 to 2,800 RPM |
| Grinding Accuracy | 0.010 / 300 mm |
| Configurations | 4 Types · 25+ Models |
Since 1983
Four decades supplying Indian industry
5 Export Countries
Sri Lanka, Bahrain, Oman, UAE, Saudi Arabia
Trusted by L&T, Anchor by Panasonic & more
Enterprise clients across sectors
Precision Ground, Every Surface
Industrial Surface and Cylindrical Grinding Machines
Raney Machine Tools supplies a complete range of surface grinding and cylindrical grinding machines for tool rooms, die and mould shops, and precision production workshops. Our surface grinder range spans manual hand-feed models for small tool rooms, servo-driven machines with micro feed for high-precision work, and fully hydraulic surface grinders with automatic cross feed and Z-rapid for production grinding.
Every surface grinder in our range is manufactured to exact tolerances: parallelism 0.010/300mm on all axes, squareness 0.010/300mm (X-Y-Z), flatness 0.010/300mm, and spindle run-out of 0.010mm. Our hydraulic cylindrical grinders offer centre heights of 150mm and 175mm with grinding lengths from 300mm to 1,500mm, infinitely variable table speed, and automatic infeed at reversal.
Ground to 0.010 mm Accuracy
All surface grinders maintain parallelism, squareness, and flatness within 0.010/300mm across all axes. Spindle run-out held at 0.010mm. Vertical micro feed (0.002mm on servo models) enables precision finishing.
Manual to Fully Hydraulic
Manual hand-feed for small tool rooms. Servo-driven with AC servo cross and longitudinal motors. Fully hydraulic with imported ball screws, Turcite-coated guideways, and automatic lubrication for production grinding.
Trusted Industrial Partner
Trusted by India's premier engineering corporations and exported to 5 overseas destinations.
Export Destinations
Sri Lanka • Bahrain • Oman • UAE • Saudi Arabia
4 Configurations · 25+ Models
Our 4 Grinding Machine Types
From compact manual surface grinders to heavy-duty hydraulic cylindrical machines, choose the precision grinding solution for your workshop.

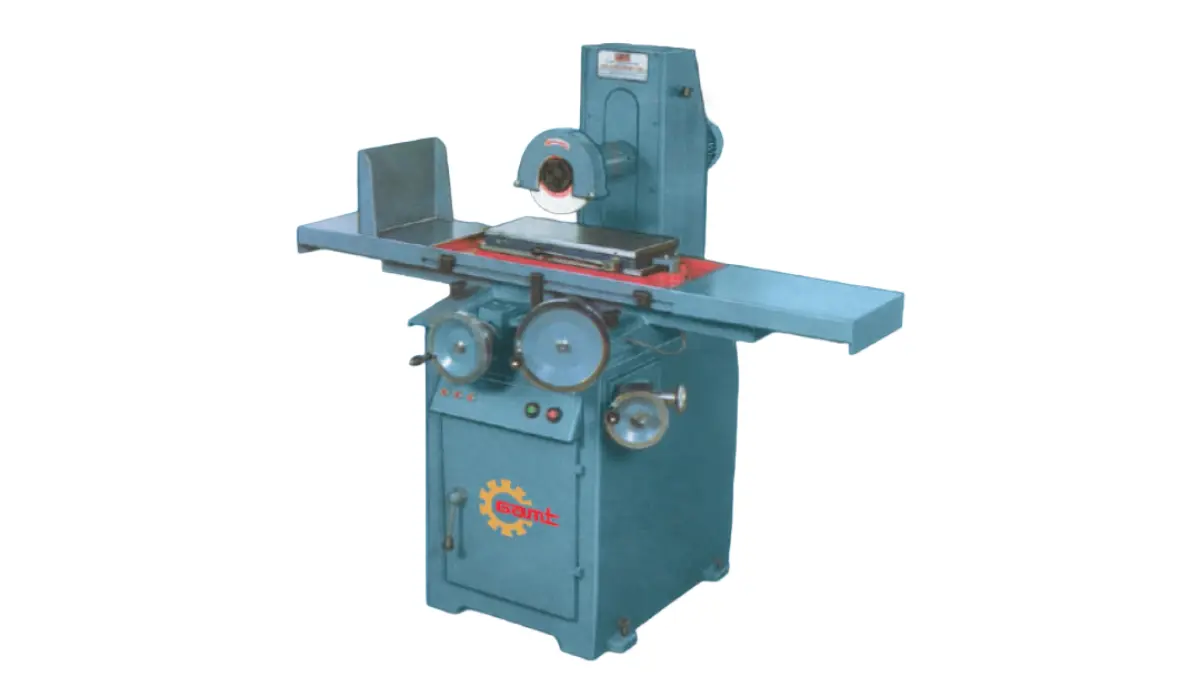

Manual
Model: Manual Surface Grinders
Hand-Feed Precision Surface Grinding
Manual hand-feed surface grinders in 6 sizes from 714 (175x350mm) to 1628 (400x700mm). 2,800 RPM spindle. Magnetic chuck, diamond dresser, and wheel balancing stand standard.
- Table Sizes: 175x350 to 400x700 mm
- Spindle Speed: 2,800 RPM
- Vertical Feed: 0.01 to 0.002 mm
- Models: 714, 914, 918, 1020, 1224, 1628

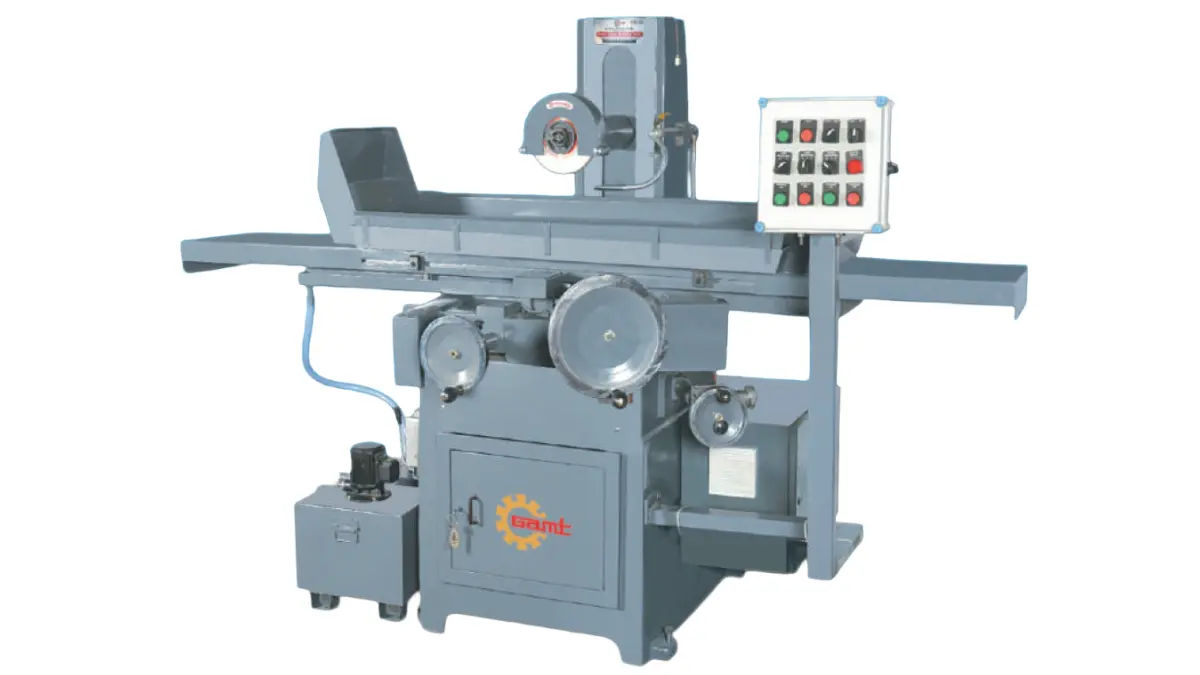

Servo Drive
Model: Servo Drive Surface Grinders
AC Servo Cross & Longitudinal
Surface grinders with AC servo motors for cross and longitudinal table movement. Micro feed (0.002mm on SD1020+). 6 models from SD714 to SD1628.
- Table Sizes: 175x350 to 400x700 mm
- Spindle Speed: 2,800 RPM
- Micro Feed: 0.002 mm (SD1020+)
- Models: SD714 to SD1628

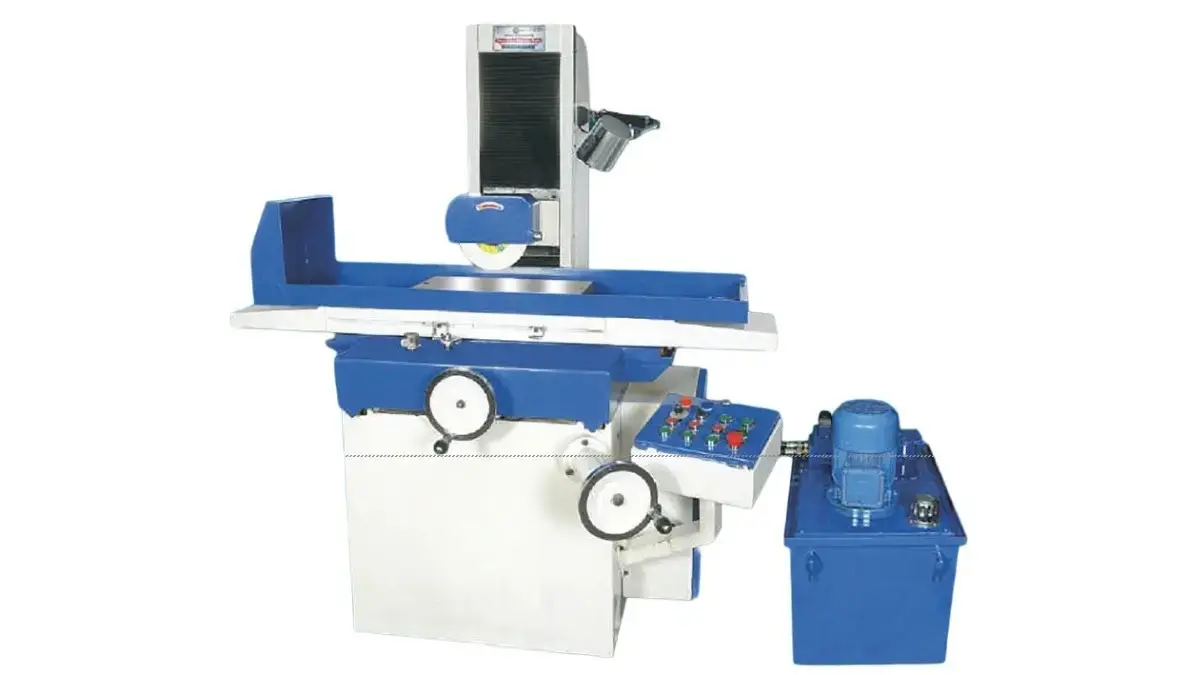

Hydraulic
Model: Hydraulic Surface Grinders
Fully Hydraulic with Auto Cross Feed
Fully hydraulic with automatic longitudinal and cross feed, hydraulic power pack (80-100L), Z-rapid. 7 models from MY 1022 (250x500) to 50100 AH (500x1000). Larger models feature AC servo cross motors.
- Table Sizes: 250x500 to 500x1000 mm
- Table Speed: 5 to 25 m/min
- Spindle Speed: 1,400 to 2,800 RPM
- Models: MY 1022 to 50100 AH

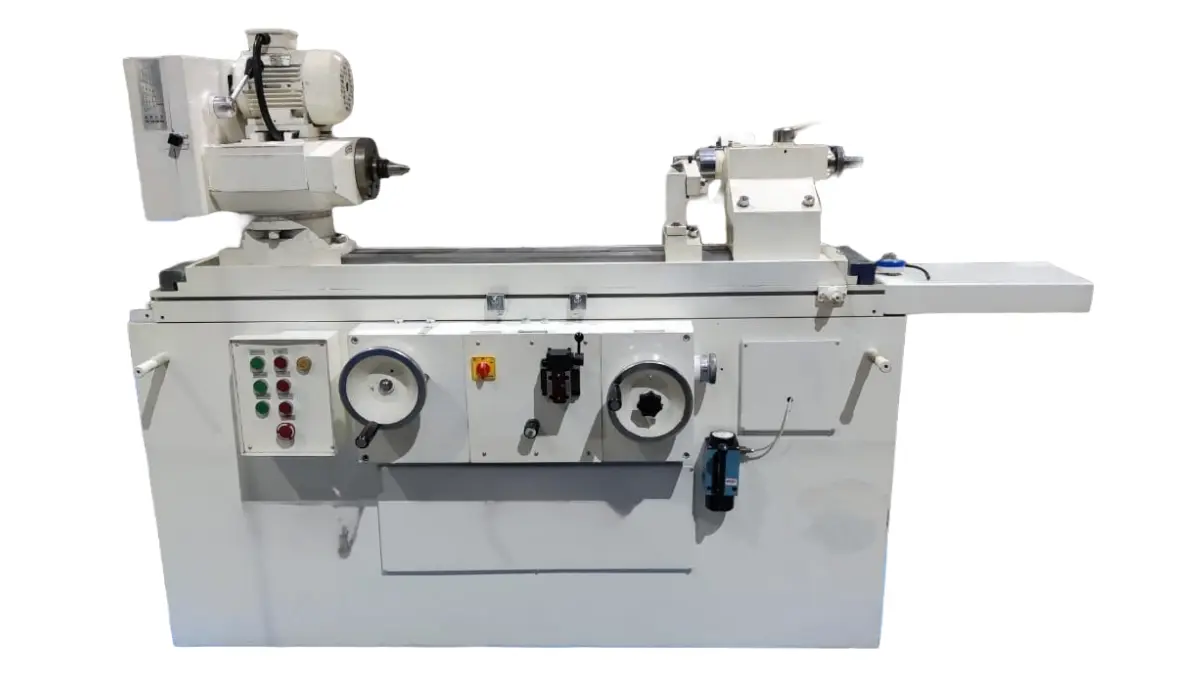

Cylindrical
Model: Hydraulic Cylindrical Grinding
Centre-Type Cylindrical Grinding
Hydraulic cylindrical grinders in 6 models across two centre heights: 150mm (300-800mm length) and 175mm (1000-1500mm length). Infinitely variable table speed, automatic infeed, internal grinding option.
- Centre Heights: 150 / 175 mm
- Grinding Length: 300 to 1,500 mm
- Table Speed: 0.1 to 4 m/min
- Models: 150/300 to 175/1500
Engineering Data Sheets
Detailed Technical Specifications (All 25+ Models)
Manual Surface Grinders
6 Models · 714 to 1628| SPECIFICATION | Unit | 714 | 914 | 918 | 1020 | 1224 | 1628 |
|---|---|---|---|---|---|---|---|
| Working Surface of Table | mm | 175x350 | 225x350 | 225x450 | 250x500 | 300x600 | 400x700 |
| Max Height Table to Wheel | mm | 175 | 275 | 275 | 275 | 275 | 275 |
| Vertical Feed Least Count | mm | 0.01 | 0.01 | 0.01 | 0.002 | 0.002 | 0.002 |
| Cross Feed Least Count | mm | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Spindle Speed | RPM | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 |
| Grinding Wheel (OD x W x ID) | mm | 175x13x31.75 | 200x13x31.75 | 200x13x31.75 | 200x20x31.75 | 200x20x31.75 | 200x20x31.75 |
| Magnetic Chuck | mm | 150x300 | 200x300 | 200x450 | 200x500 | 250x500 | 300x600 |
| Spindle Motor | HP | 1 | 1 | 1 | 2 | 2 | 2 |
| Motor RPM | RPM | 3/4 HP 2800 | 1 HP 2800 | 1/1.5 HP 2800 | 2 HP 2800 | 2 HP 2800 | 2 HP 2800 |
| Diamond Dresser | Cr. | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Wheel Balancing Stand | — | One | One | One | One | One | One |
| Net Weight (Approx.) | kg | 650 | 750 | 850 | 1000 | 1150 | 1250 |
Accuracy Standards (all models): Parallelism 0.010/300 mm (all axes) · Squareness X-Y-Z 0.010/300 mm · Flatness 0.010/300 mm · Spindle Run-Out 0.010 mm
Manual/Automatic Surface Grinders with Servo Drives
6 Models · SD714 to SD1628| SPECIFICATION | Unit | SD714 | SD914 | SD918 | SD1020 | SD1224 | SD1628 |
|---|---|---|---|---|---|---|---|
| Working Surface of Table | mm | 175x350 | 225x350 | 225x450 | 250x500 | 300x600 | 400x700 |
| Max Height Table to Wheel | mm | 175 | 275 | 275 | 275 | 275 | 275 |
| Vertical Feed Least Count | mm | 0.01 | 0.01 | 0.01 | 0.01 (0.002 Micro) | 0.01 (0.002 Micro) | 0.01 (0.002 Micro) |
| Cross Feed Least Count | mm | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Spindle Speed | RPM | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 |
| Grinding Wheel (OD x W x ID) | mm | 175x13x31.75 | 200x13x31.75 | 200x13x31.75 | 200x13x31.75 | 200x13x31.75 | 200x13x31.75 |
| Magnetic Chuck | mm | 150x300 | 200x300 | 200x450 | 200x500 | 250x500 | 300x600 |
| Spindle Motor | HP | 1 | 1 | 1 | 2 | 2 | 2 |
| Cross Motor | W | 750 AC Servo | 750 AC Servo | 750 AC Servo | 750 AC Servo | 750 AC Servo | 750 AC Servo |
| Longitudinal Motor | W | 750 AC Servo | 750 AC Servo | 750 AC Servo | 750 AC Servo | 750 AC Servo | 750 AC Servo |
| Coolant Motor | W | Manual | Manual | Optional | 120 | 120 | 120 |
| Net Weight (Approx.) | kg | 700 | 800 | 900 | 1050 | 1250 | 1300 |
Standard Accessories (all models): Grinding wheel, flange extractor, wheel balancing arbor, grinding wheel flange, diamond dresser, work lamp, lube unit (manual), tool box with tools.
Hydraulic Surface Grinders
7 Models · MY 1022 to 50100 AHSub-group A: MY 1022, K 1020, SGH-1224
| SPECIFICATION | Unit | MY 1022 | K 1020 | SGH-1224 |
|---|---|---|---|---|
| Size | ||||
| Table Size | mm | 250x500 | 250x500 | 300x600 |
| Grinding Range (L x W Max) | mm | 500x250 | 500x250 | 600x300 |
| Max Spindle Centre to Table | mm | 480 | 480 | 350 |
| Magnetic Chuck (L x W) | mm | 500x250 | 500x250 (Imp.) | 500x250 (Indian) |
| Weight Carry Capacity | kg | 150 | 175 | 180 |
| Table Movement | ||||
| Max Longitudinal Travel | mm | 560 | 600 | 600 |
| Max Cross Travel | mm | 275 | 275 | 340 |
| T-Slot (No. x Width) | mm | 1 x 14 | 1 x 14 | 1 x 14 |
| Max Table Speed | m/min | 5-25 | 5-25 | 5-25 |
| Cross & Vertical Movement | ||||
| Auto Cross Feed per Reversal | mm/stroke | 0.1-2.5 | 0.1-2.5 | 0.1-2.5 |
| Power Cross Traverse | mm/min | 600 | 600 | 600 |
| Manual Vertical Feed per Turn | mm | 2.5 | 2 | 2.5 |
| Vertical Least Count | mm | 0.01 | 0.01 | 0.01 |
| Z-Rapid | mm/min | Manual (on request) | Manual (on request) | Manual (on request) |
| Grinding Head & Hydraulics | ||||
| Grinding Spindle Speed | RPM | 2800 | 2800 | 2800 |
| Grinding Wheel (OD x W x ID) | mm | 200x20x31.75 | 200x20x31.75 | 200x20x31.75 |
| Tank Capacity | litres | 80 | 80 | 80 |
| Power Pack Motor | HP | 2 | 2 | 2 |
| Working Pressure | kg/cm2 | 20 | 20 | 20 |
| Motors & Dimensions | ||||
| Spindle Motor | HP | 2 (2800 RPM) | 2 (2800 RPM) | 2 (2800 RPM) |
| Hydraulic Motor | HP | 2 (1400 RPM) | 2 (1400 RPM) | 2 (1400 RPM) |
| Coolant Motor | W | 120, 3-Ph | 120, 3-Ph | 120, 3-Ph |
| Cross Feed Motor | W | 80 WDC | 80 WDC | 80 WDC |
| Total Power | HP | 4.5 | 4.5 | 4.5 |
| Dimensions (L x W x H) | mm | 1900x1380x1720 | 1900x1550x1780 | 1900x1780x1900 |
| Weight (Approx.) | kg | 1000 | 1200 | 1280 |
Sub-group B: MY 1224, K 1224, 4080 AH, 50100 AH
| SPECIFICATION | Unit | MY 1224 | K 1224 | 4080 AH | 50100 AH |
|---|---|---|---|---|---|
| Size | |||||
| Table Size | mm | 300x600 | 300x600 | 400x800 | 500x1000 |
| Grinding Range (L x W Max) | mm | 600x300 | 600x300 | 800x400 | 1000x500 |
| Max Spindle Centre to Table | mm | 530 | 400 | 480 | 570 |
| Magnetic Chuck (L x W) | mm | 600x300 (Imp.) | 600x300 (Imp.) | 800x400 (Electro) | 1000x500 (Electro) |
| Weight Carry Capacity | kg | 200 | 250 | 300 | 400 |
| Table Movement | |||||
| Max Longitudinal Travel | mm | 700 | 700 | 820 | 1050 |
| Max Cross Travel | mm | 360 | 365 | 465 | 565 |
| T-Slot (No. x Width) | mm | 1 x 14 | 1 x 14 | 3 x 14 | 3 x 14 |
| Max Table Speed | m/min | 5-25 | 5-25 | 5-20 | 5-20 |
| Cross & Vertical Movement | |||||
| Auto Cross Feed per Reversal | mm/stroke | 0.1-2.5 | 0.1-2.5 | 0.1-2.5 | 0.1-2.5 |
| Power Cross Traverse | mm/min | 600 | 600 | 600 (AC Servo) | 600 (AC Servo) |
| Manual Vertical Feed per Turn | mm | 2.5 | 2 | 2 | 2 |
| Vertical Least Count | mm | 0.01 | 0.01 (Micro 0.002) | 0.01 (Micro 0.002) | 0.01 (0.002 Micro) |
| Z-Rapid | mm/min | 600 | 600 | 600 | 600 |
| Grinding Head & Hydraulics | |||||
| Grinding Spindle Speed | RPM | 1400 | 1400 | 1400 | 1400 |
| Grinding Wheel (OD x W x ID) | mm | 300x25x76.2 | 355x32x127 | 355x32x127 | 355x32x127 |
| Tank Capacity | litres | 80 | 80 | 100 | 100 |
| Power Pack Motor | HP | 2 | 2 | 3 | 3 |
| Motors & Dimensions | |||||
| Spindle Motor | HP | 3 (1400 RPM) | 3 (1400 RPM) | 5 (1400 RPM) | 7.5 (1400 RPM) |
| Hydraulic Motor | HP | 2 (1400 RPM) | 2 (1400 RPM) | 3 (1400 RPM) | 3 (1400 RPM) |
| Cross Feed Motor | W | 80 WDC | 80 WDC | 750 AC Servo | 750 AC Servo |
| Z-Rapid Motor | W | 120W, 3-Ph | 120W, 3-Ph | 375W AC, 3-Ph | 375W AC, 3-Ph |
| Auto Lubrication | — | Manual | Auto 120W | Auto 120W | Auto 120W |
| Total Power | HP | 5.5 | 5.5 | 10 | 12.5 |
| Dimensions (L x W x H) | mm | 1900x1780x1900 | 1800x1850x1850 | 2750x2150x1900 | 2700x2250x2100 |
| Weight (Approx.) | kg | 1325 | 1850 | 3300 | 4300 |
Features (K 1224, MY 1224)
- Cross travel: DC motor + ball screw (imported)
- Longitudinal: direction control valve (imported)
- Spindle motor: Bharat Bijlee Ltd
- Casting: Grade 25, imported
- Bed guideways: Turcite coated
- Hydraulic power pack: Hydrank (Taiwan) / Polyhydron
Features (4080 AH, 50100 AH)
- Cross travel: servo motor + gearbox (Delta, Taiwan) + ball screw (Hiwin, Taiwan)
- Longitudinal: direction control valve (imported)
- Spindle motor: Bharat Bijlee Ltd
- Casting: Grade 25, imported
- Bed guideways: Turcite coated
- Hydraulic power pack: same as K 1224 series
Standard Accessories (all hydraulic models): Grinding wheel, flange extractor, wheel balancing arbor, grinding wheel flange, diamond dresser, work lamp, lube unit (manual), tool box with tools.
Hydraulic Cylindrical Grinding Machine
6 Models · 150-series & 175-series| SPECIFICATION | Unit | 150/300 | 150/500 | 150/800 | 175/1000 | 175/1250 | 175/1500 |
|---|---|---|---|---|---|---|---|
| Capacity | |||||||
| Centre Height | mm | 150 | 150 | 150 | 175 | 175 | 175 |
| Max Grinding Length | mm | 300 | 500 | 800 | 1000 | 1250 | 1500 |
| Table | |||||||
| Max Swivel of Table | deg | 7+2=9 | 7+2=9 | 6+2=8 | 6+2=8 | 5+2=7 | 5+2=7 |
| Table Speed (Infinitely Variable) | m/min | 0.1-4 | 0.1-4 | 0.1-4 | 0.1-4 | 0.1-4 | 0.1-4 |
| Dwell at Reversals | sec | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 |
| Wheel Head | |||||||
| Grinding Wheel (D x W) | mm | 300x25 | 350x40 | 350x40 | 400x40 | 400x40 | 400x40 |
| Wheel Speed | RPM | 1900/2300 | 1600/2100 | 1600/2100 | 1600/1900 | 1600/1900 | 1600/1900 |
| Wheel Head Rapid Approach | mm | 50 | 50 | 50 | 50 | 50 | 50 |
| Auto Infeed at Reversal | mm | 0.01-0.03 | 0.01-0.03 | 0.01-0.03 | 0.01-0.03 | 0.01-0.03 | 0.01-0.03 |
| Wheel Head Swivel | deg | ±60 | ±60 | ±60 | — | — | — |
| Work Head & Tail Stock | |||||||
| No. of Speeds | step | 3 | 3 | 3 | 4 | 4 | 4 |
| Work Head Swivel | deg | ±90 | ±90 | ±90 | ±90 | ±90 | ±90 |
| Work Head Centre | MT | MT-3 | MT-3 | MT-3 | MT-4 | MT-4 | MT-4 |
| Tail Stock Centre | MT | MT-3 | MT-3 | MT-3 | MT-4 | MT-4 | MT-4 |
| Internal Grinding | |||||||
| Internal Grinding Spindle OD | mm | Ø60 | Ø60 | Ø60 | Ø80 | Ø80 | Ø80 |
Key Features:
150-series (150/300, 150/500, 150/800): MT-3 centres, 3-step work head speed, 60mm internal grinding spindle, ±60° wheel head swivel
175-series (175/1000, 175/1250, 175/1500): MT-4 centres, 4-step work head speed, 80mm internal grinding spindle
All models: infinitely variable table speed (0.1-4 m/min), 0-30 sec dwell at reversals, 50mm wheel head rapid approach, 0.01-0.03mm auto infeed, ±90° work head swivel.
150-series (150/300, 150/500, 150/800): MT-3 centres, 3-step work head speed, 60mm internal grinding spindle, ±60° wheel head swivel
175-series (175/1000, 175/1250, 175/1500): MT-4 centres, 4-step work head speed, 80mm internal grinding spindle
All models: infinitely variable table speed (0.1-4 m/min), 0-30 sec dwell at reversals, 50mm wheel head rapid approach, 0.01-0.03mm auto infeed, ±90° work head swivel.
Industrial Sectors
Industries & Applications We Serve
Raney Machine Tools' workshop machinery supplies critical manufacturing, heavy maintenance, and fabrication facilities across Gujarat and worldwide.
Automotive & Components
Transmission housings, brake and steering assemblies, precision fasteners, and high-volume component production.
Defence & Ordnance
High-tensile alloy machining, ordnance component fabrication, and precision assemblies for defence contractors.
Pumps, Valves, Oil & Gas
Pump housings, valve bodies, flanges, threaded connectors, and heavy pipe fabrication for oilfield equipment.
Sugar & Cement Plants
Crusher and kiln roller maintenance, heavy trunnion assemblies, and general plant-floor machining.
Steel & Power Generation
Rolling-mill maintenance, turbine and generator shaft servicing, and heavy structural fabrication.
Toolrooms & Institutes
Die & mould shops, jig/fixture fabrication, ITI/Polytechnic training institutes, and R&D toolrooms.
The Raney Advantage
Why Source Grinding Machines from Raney Machine Tools?
When you purchase grinding machines from Raney Machine Tools, you gain direct access to four decades of machine-tool engineering expertise, factory-backed guarantees, and end-to-end operational support.
Ahmedabad Central Machinery Showroom
1/A, Ramnesh Estate, Opp. Shilp Arcade, Memco-Bapunagar Road, Ahmedabad - 380025
Proven In Production
Trusted by Industry Leaders Across Gujarat & Overseas
Common Questions
Frequently Asked Questions
Common questions on surface grinders, cylindrical grinders, hydraulic vs manual feed, and wheel selection.
We supply four types: manual surface grinders, servo drive surface grinders, hydraulic surface grinders, and hydraulic cylindrical grinding machines. Surface grinder table sizes range from 175x350mm to 500x1000mm. Cylindrical grinders handle workpieces up to 1,500mm grinding length.
Manual surface grinders use handwheels for table traverse, suited for tool rooms and small-batch work. Servo drive surface grinders use motorised feeds for consistent table speed and repeatability without the cost of a full hydraulic system. Hydraulic surface grinders use hydraulic power for smooth, stepless table traverse, best for production grinding where surface finish and cycle consistency matter.
Our surface grinders achieve a grinding accuracy of 0.010mm over 300mm of table travel. Actual accuracy depends on the grinding wheel condition, workpiece material, coolant use, and operator technique. Servo drive and hydraulic models provide more consistent results than manual machines due to uniform table traverse speed.
Surface grinders finish flat surfaces. Cylindrical grinders finish round surfaces: shafts, pins, spindles, rollers, and similar cylindrical parts. If your workpiece is round and needs a precision outside diameter finish, you need a cylindrical grinder. Our hydraulic cylindrical grinders handle workpieces up to 1,500mm length.
Grinding wheel sizes vary by machine model, typically ranging from 175mm to 355mm diameter. All our surface grinders use standard abrasive grinding wheels with the appropriate bore size for the wheel guard and spindle adapter. Our team can recommend the right wheel specification for your material and finish requirements.
Hydraulic surface grinders and cylindrical grinders include integrated coolant delivery systems. Manual and servo drive surface grinders may require a separate coolant tank (available in our Accessories range). Coolant is important for surface grinding to prevent thermal damage to the workpiece and extend wheel life.
All our grinding machines operate on 3-phase industrial power (415V, 50 Hz). Motor ratings range from fractional HP on smaller manual surface grinders to several HP on large hydraulic models. The spindle motor, hydraulic pump, and coolant pump each have separate drives on hydraulic machines.
Direct Factory Pricing
Request a Commercial Quotation
Tell us your workpiece dimensions, material, and finish requirements. Our application engineers will respond within 2-4 business hours with machine recommendations and pricing.
Visit Showroom / Quick Contact
Raney Machine Tools Showroom1/A, Ramnesh Estate, Opp. Shilp Arcade, Memco-Bapunagar Road, Ahmedabad - 380025, Gujarat, India
Technical Sales Hotline+91 99253 43026
Instant WhatsApp Support+91 70410 38728 (Instant Response)
Official Sales Emailinfo@raneymachinetools.com
Working HoursMonday - Saturday: 9:00 AM to 7:00 PM
Complete Your Workshop
Related Machinery
Lathe Machines
Light & Medium Duty, Heavy & Extra Heavy Duty, All Geared & Belt Driven, SPM Lathe Machine.
Explore
Need Help Choosing the Right Grinding Machine?
Our team can recommend the right surface or cylindrical grinder based on your workpiece dimensions, material, and finish requirements.
