Power Presses & Hydraulic Presses
C-frame mechanical power presses from 5 to 200 ton and hydraulic presses from 5 to 300 ton, for punching, blanking, bending, forming, straightening, and pressing work.
Hydraulic Press · 5T to 300T
Product Range
In StockPress Highlights
| Commercial Terms | Direct Distributor Pricing |
| Tonnage Range | 5 Ton to 300 Ton |
| Types | C-Frame Power Press, Hydraulic Press |
| Stroke | 5 to 152 mm (power) · 100 to 250 mm (hydraulic) |
| Motor Range | 0.5 HP to 20 HP |
| Models | 20 (9 power + 11 hydraulic) |
Since 1983
Four decades supplying Indian industry
5 Export Countries
Sri Lanka, Bahrain, Oman, UAE, Saudi Arabia
Trusted by L&T, Anchor by Panasonic & more
Enterprise clients across sectors
Punching, Blanking, Bending, Forming, and Pressing
Power Presses and Hydraulic Presses for Sheet Metal and Press Work
Raney Machine Tools supplies C-frame mechanical power presses in 9 tonnage variants from 5 ton to 200 ton. Every press features adjustable stroke length, safety clutch mechanism, and heavy cast iron construction for reliable, high-volume press work. Bed sizes range from 340x200mm on the 5-ton model to 1,000x700mm on the 200-ton model, with bed-to-ram distance from 160mm to 500mm.
The power presses handle punching, blanking, piercing, bending, forming, and embossing operations across a wide range of sheet metal thicknesses. Strokes per minute range from 82 on the compact 5-ton press down to 30 on the heavy-duty 80-ton and above models, with crank diameters from 51mm to 160mm. Motors range from 0.5 HP to 20 HP to match tonnage and production speed requirements.
For pressing, straightening, bending, and assembly work, our hydraulic presses come in 11 capacities from 5 to 300 ton. Distance between columns runs from 160x400mm to 900x1600mm, stroke from 100mm to 250mm, and motors from 2 HP to 20 HP. Every hydraulic press comes with V-blocks, a pressure gauge, a bed up-down handle, bed resting rods, and an L.N. key; job movement rollers are standard from 60 ton upward.
Two Press Types, 20 Models
9 C-frame power presses (5T to 200T) for fast, repetitive punching and blanking, and 11 hydraulic presses (5T to 300T) for controlled pressing, straightening, and bending.
Safety Clutch on Every Power Press
Every power press includes a safety clutch mechanism for controlled engagement and disengagement of the ram. Combined with adjustable stroke length, operators can set precise working parameters for safe, repeatable press operations.
Trusted Industrial Partner
Trusted by India's premier engineering corporations and exported to 5 overseas destinations.
Export Destinations
Sri Lanka • Bahrain • Oman • UAE • Saudi Arabia
20 Models · Power & Hydraulic
Power & Hydraulic Press Range
Choose the press type and tonnage for your punching, blanking, bending, forming, or pressing application.
5T to 30T

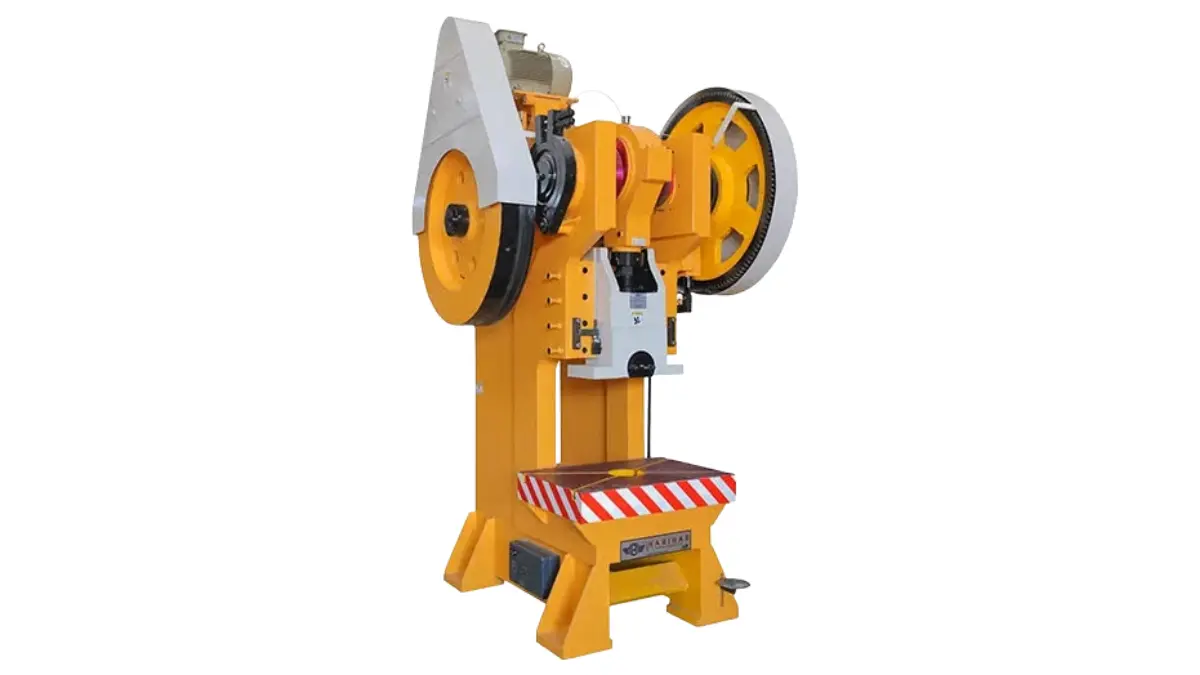

Model: Power Press (Light to Medium Duty)
5, 10, 20, and 30 Ton Models
Light to medium duty C-frame power presses in 4 tonnages: 5T, 10T, 20T, and 30T. Bed sizes from 340x200mm to 560x380mm. Strokes per minute from 40 to 82, with motors from 0.5 HP to 3 HP. Suitable for small component punching, blanking, and light forming.
- Tonnage: 5T, 10T, 20T, 30T
- Bed Size: 340x200 to 560x380 mm
- Strokes/Min: 40 to 82
- Motor: 0.5 HP to 3 HP
50T to 200T

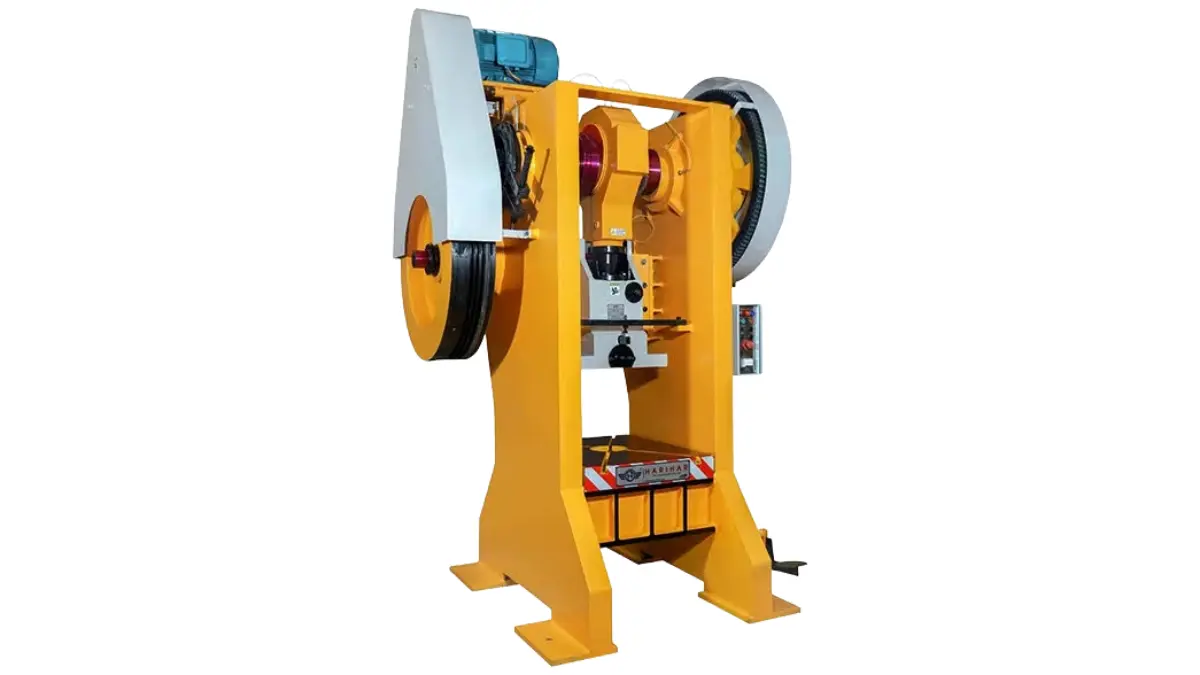

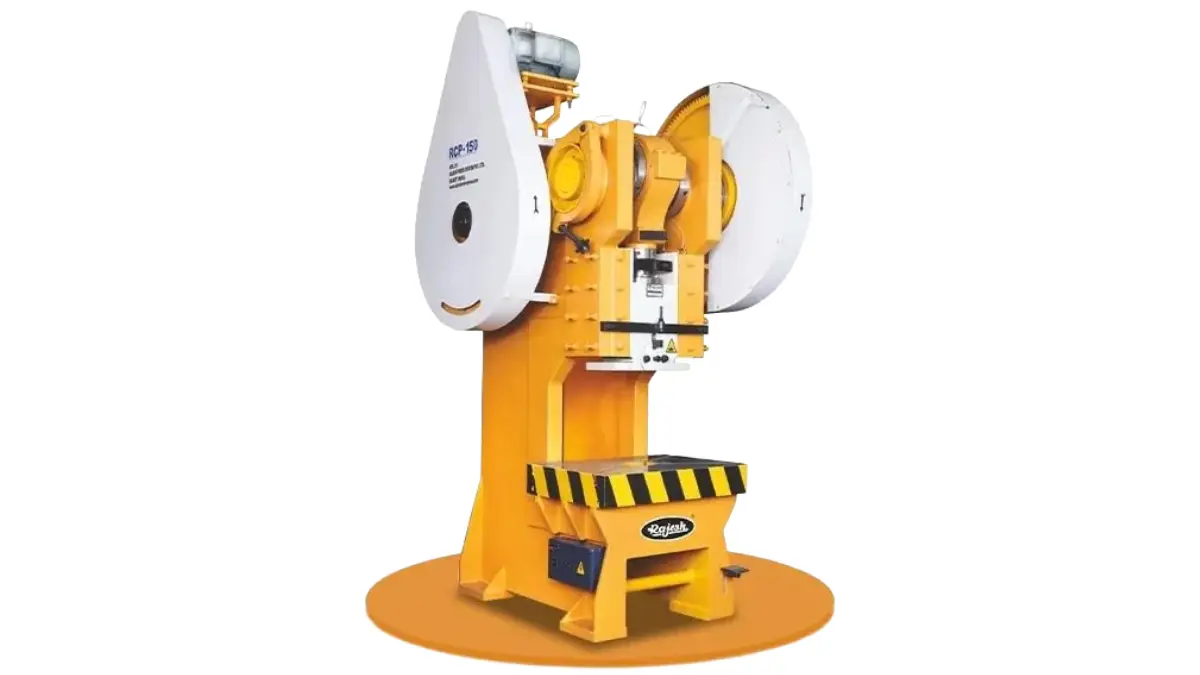

Model: Power Press (Heavy Duty)
50, 80, 100, 150, and 200 Ton Models
Heavy duty C-frame power presses in 5 tonnages: 50T, 80T, 100T, 150T, and 200T. Bed sizes from 406x660mm to 1,000x700mm. Strokes per minute from 30 to 33, with motors from 5 HP to 20 HP. Heavy blanking, deep drawing, and high-tonnage forming.
- Tonnage: 50T, 80T, 100T, 150T, 200T
- Bed Size: 406x660 to 1000x700 mm
- Strokes/Min: 30 to 33
- Motor: 5 HP to 20 HP
5T to 300T

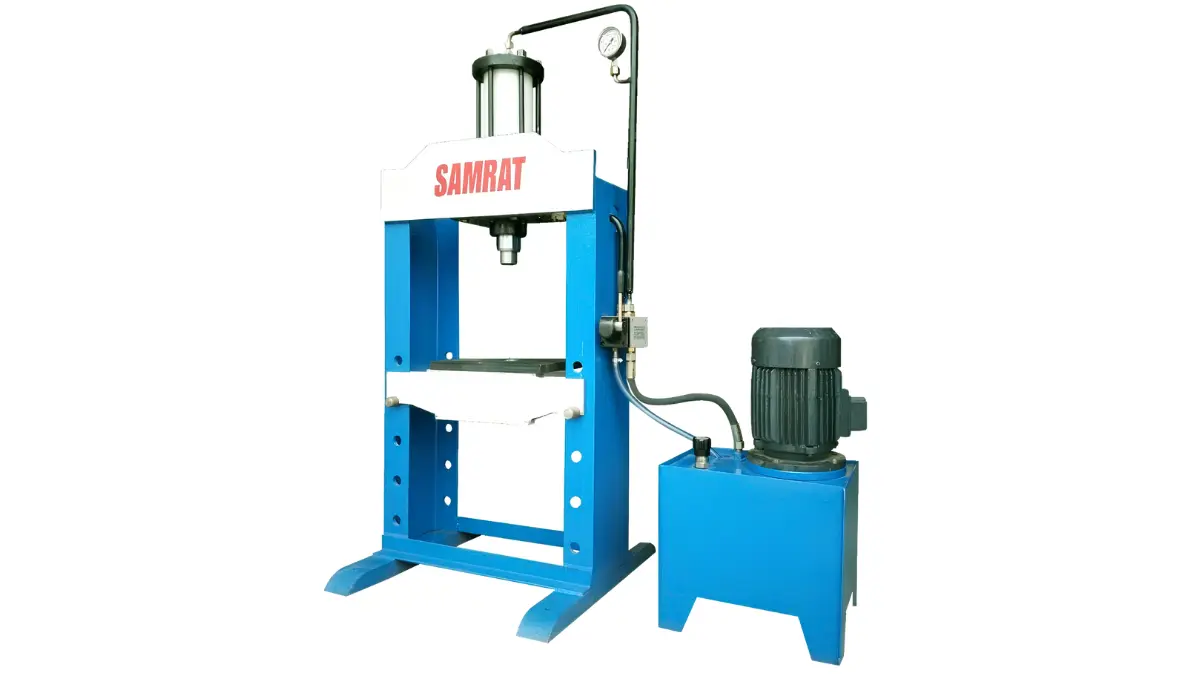

Model: Hydraulic Press
5 to 300 Ton Hydraulic Presses
Hydraulic presses in 11 capacities: 5, 15, 25, 40, 60, 75, 100, 150, 200, 250, and 300 ton. Stroke from 100mm to 250mm, motors from 2 HP to 20 HP. For pressing, straightening, bending, and assembly work.
- Capacity: 5 to 300 Ton
- Stroke: 100 to 250 mm
- Speed: 3 to 7 mm/sec
- Motor: 2 HP to 20 HP
Engineering Data Sheets
Detailed Technical Specifications (All 20 Models)
Power Press — All 9 Tonnages
C-Frame · 5T to 200T| SPECIFICATION | Unit | 5T | 10T | 20T | 30T | 50T | 80T | 100T | 150T | 200T |
|---|---|---|---|---|---|---|---|---|---|---|
| Tonnage | Ton | 5 | 10 | 20 | 30 | 50 | 80 | 100 | 150 | 200 |
| Crank Diameter | mm | 51 | 60 | 76 | 83 | 100 | 120 | 130 | 150 | 160 |
| Stroke Adjustment | mm | 5-38 | 5-51 | 10-75 | 10-75 | 12-100 | 12-112 | 12-125 | 12-140 | 12-152 |
| Bed Size (L x W) | mm | 340x200 | 400x250 | 460x300 | 560x380 | 406x660 | 762x505 | 850x600 | 912x632 | 1000x700 |
| Bed to Ram Distance | mm | 160 | 235 | 300 | 325 | 375 | 450 | 475 | 475 | 500 |
| Strokes Per Minute | — | 82 | 72 | 50 | 40 | 33 | 30 | 30 | 30 | 30 |
| Motor | HP | 0.5 | 1 | 2 | 3 | 5 | 8 | 10 | 15 | 20 |
| Weight (Approx.) | kg | 300 | 540 | 1,000 | 1,400 | 2,385 | 3,800 | 5,000 | 5,800 | 8,000 |
Hydraulic Press — All 11 Capacities
Hydraulic · 5T to 300T| SPECIFICATION | Unit | 5T | 15T | 25T | 40T | 60T | 75T | 100T | 150T | 200T | 250T | 300T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | Ton | 5 | 15 | 25 | 40 | 60 | 75 | 100 | 150 | 200 | 250 | 300 |
| Distance Between Columns | mm | 160 x 400 | 200 x 750 | 280 x 800 | 375 x 950 | 425 x 1010 | 450 x 1125 | 500 x 1200 | 600 x 1300 | 700 x 1400 | 800 x 1500 | 900 x 1600 |
| Distance Between Ram and Bed | mm | 125 x 500 | 150 x 650 | 175 x 800 | 175 x 900 | 175 x 900 | 175 x 900 | 175 x 900 | 200 x 1000 | 400 x 1200 | 400 x 1200 | 400 x 1200 |
| Stroke | mm | 100 | 150 | 175 | 175 | 200 | 200 | 200 | 225 | 225 | 250 | 250 |
| Motor | HP | 2 | 3 | 3 | 3 | 5 | 5 | 5 | 7.5 | 10 | 15 | 20 |
| Speed (Single) | mm/sec | 7 | 6 | 5 | 4 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
All dimensions are in mm, approximate, and may change without prior notice.
Standard Accessories
- V-Block (2 nos.)
- Pressure gauge
- Bed up-down handle
- Bed resting rod (2 nos.)
- L.N. key
- Job movement roller, 60 ton and above (2 nos.)
Optional Accessories
- Oil
- Electric control panel
- Two-speed power pack
- Starter
- Base and upper plate
- Heat exchanger
- Pressure holding system
Industrial Sectors
Industries & Applications We Serve
Raney Machine Tools' workshop machinery supplies critical manufacturing, heavy maintenance, and fabrication facilities across Gujarat and worldwide.
Automotive & Components
Transmission housings, brake and steering assemblies, precision fasteners, and high-volume component production.
Defence & Ordnance
High-tensile alloy machining, ordnance component fabrication, and precision assemblies for defence contractors.
Pumps, Valves, Oil & Gas
Pump housings, valve bodies, flanges, threaded connectors, and heavy pipe fabrication for oilfield equipment.
Sugar & Cement Plants
Crusher and kiln roller maintenance, heavy trunnion assemblies, and general plant-floor machining.
Steel & Power Generation
Rolling-mill maintenance, turbine and generator shaft servicing, and heavy structural fabrication.
Toolrooms & Institutes
Die & mould shops, jig/fixture fabrication, ITI/Polytechnic training institutes, and R&D toolrooms.
The Raney Advantage
Why Source Power & Hydraulic Presses from Raney Machine Tools?
When you purchase power or hydraulic presses from Raney Machine Tools, you gain direct access to four decades of machine-tool engineering expertise, factory-backed guarantees, and end-to-end operational support.
Ahmedabad Central Machinery Showroom
1/A, Ramnesh Estate, Opp. Shilp Arcade, Memco-Bapunagar Road, Ahmedabad - 380025
Proven In Production
Trusted by Industry Leaders Across Gujarat & Overseas
Common Questions
Frequently Asked Questions
Common questions on press tonnage, power press vs hydraulic press, and safety.
We supply C-frame mechanical power presses in 9 tonnages (5T, 10T, 20T, 30T, 50T, 80T, 100T, 150T, and 200T, motors 0.5 HP to 20 HP) and hydraulic presses in 11 capacities (5, 15, 25, 40, 60, 75, 100, 150, 200, 250, and 300 ton, motors 2 HP to 20 HP).
A power press is mechanical: a motor-driven flywheel and crank move the ram through a fixed cycle, so it is fast and suits repetitive punching, blanking, and piercing. A hydraulic press moves the ram with oil pressure at a controlled speed (3 to 7 mm/sec on our range), which suits pressing, straightening, bending, and assembly work. Tell us the job and we will suggest the right type.
The required tonnage depends on the operation (punching, blanking, bending, forming), the material type and thickness, and the blank size. As a general rule: for punching, multiply the hole perimeter (mm) by the sheet thickness (mm) by the material's shear strength (N/mm2), then convert to tons. Our team can calculate the exact tonnage for your die and workpiece.
Our power presses handle punching, blanking, piercing, bending, forming, embossing, and drawing operations. The specific capability depends on the tonnage, die design, and stroke adjustment. Light presses (5T to 30T) suit small component work; heavy presses (50T to 200T) handle thick materials, large blanks, and deep drawing.
Adjustable stroke lets you set the ram travel distance to match your die and workpiece. A shorter stroke means faster cycling and less wasted motion. Stroke adjustment ranges from 5mm to 152mm across our range. This is set during die setup, not during operation.
Every power press includes a safety clutch mechanism for controlled ram engagement and disengagement. Additional safety guards, two-hand controls, and light curtains can be fitted based on your factory safety requirements and local regulations. We recommend discussing safety requirements during the quotation stage.
Strokes per minute depend on the tonnage: the 5T press runs at 82 strokes/min, the 10T at 72, the 20T at 50, the 30T at 40, and the 50T through 200T models at 30 to 33 strokes/min. Higher tonnage machines cycle slower due to the larger ram mass and stroke length.
Floor space depends on the model. The 5T press weighs approximately 300 kg and needs minimal foundation. The 200T press weighs approximately 8,000 kg and requires a reinforced concrete foundation engineered for the press weight and dynamic loads. We can provide foundation drawings and layout recommendations with your quotation.
Every hydraulic press comes with V-blocks (2 nos.), a pressure gauge, a bed up-down handle, bed resting rods (2 nos.), and an L.N. key. Models from 60 ton upward also get 2 job movement rollers. Optional extras include oil, an electric control panel, a two-speed power pack, a starter, base and upper plates, a heat exchanger, and a pressure holding system.
